C29XPCIE-RDB
アクティブ -
C29x Crypto Coprocessor PCI Express?? Adapter Platform.
コンパクトリスト
C29x PCI Express® Adapter Platform
The C29x PCI Express (PCIe) Adapter Platform is a hardware and software development environment for high-performance networking applications, such as unified threat management, application delivery controllers and hardware security modules.
- Based upon NXP®.s C29x crypto coprocessor family, it is fabricated in a small and efficient half length x4 PCIe form factor
- A scalable solution with 3 devices, the C291, C292 and C293 coprocessors offer between 8 and 32k 2048-bit RSA transactions per second
- The C29x PCIe Adapter Platform adds flexibility for developers needing to integrate into a hosted development environment or can serve as a standalone bench-top embedded system
製品詳細

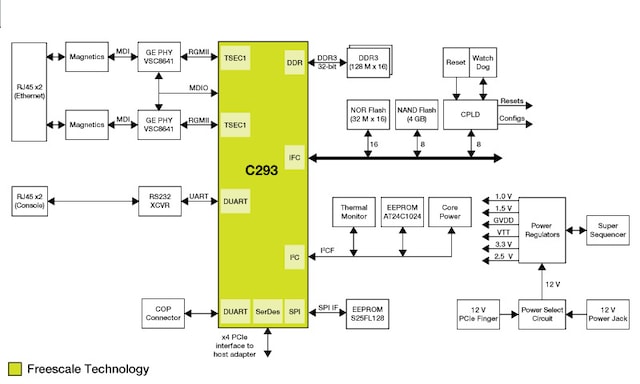

Features
Crypto Coprocessor
- 32-bit DDR3/3L memory controller
- 64 MB NOR Flash, 16-bit
- 4 GB NAND Flash, 8-bit
- 16 MB SPI EEPROM
PCI Express
- PCIe x4 interface
Ethernet
- Two 1 GbE RGMII ports
UART
- UART interface up to 115200 bp/s for console display and one RJ45 connector
Others
- RJ45 serial console port
- JTAG for debugging
- CPLD controlling reset, watchdog timer, and power-on config
- Connector for ADM1069 (power-on control chipset) programming
- Connector for CPLD programming
- Connector for ZL6105 (digital power) programming
