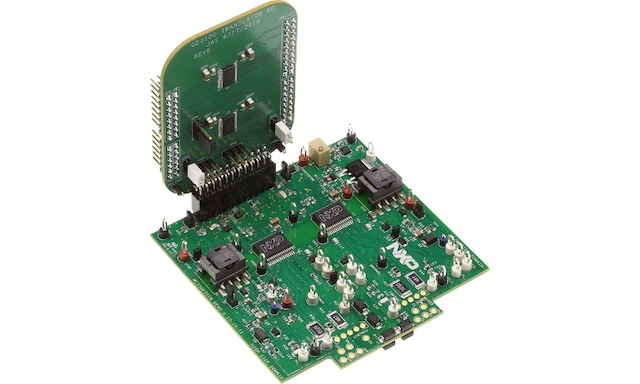

The FRDM-GD3100EVM is a half-bridge evaluation kit populated with two MC33GD3100 single channel IGBT gate drive devices on a half-bridge evaluation board. The kit includes the Freedom KL25Z microcontroller hardware for interfacing a PC installed with SPIGen software for communication to the SPI registers on the MC33GD3100 gate drive devices in either daisy chain or standalone configuration.

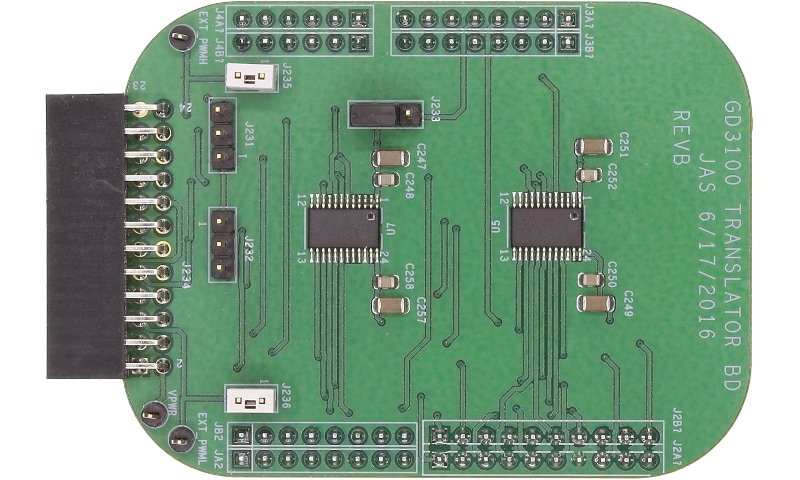

The GD3100 translator board is used to translate 3.3 V signals to 5.0 V signals between the MCU and MC33GD3100 gate drivers. The evaluation kit can be connected to a single phase of a Fuji M653 or M6+ IGBT module for half-bridge evaluations and applications development.

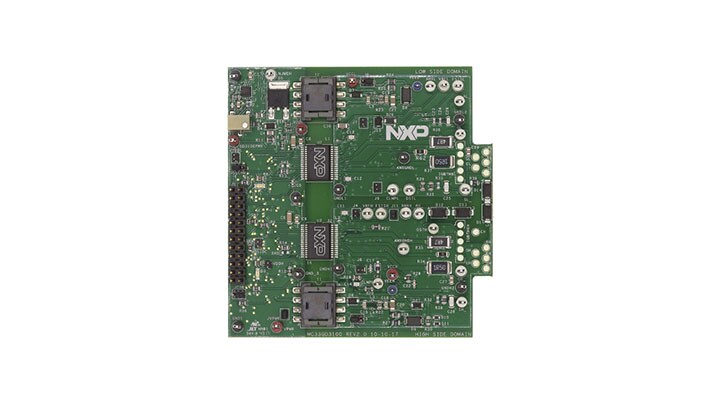

Half-Bridge evaluation board for Fuji M653 IGBTs featuring GD3100.
