GD3100 Evaluation Board Compatible with HybridPACK™ Drive IGBT Module

FRDMGD3100HBIEVM アクティブ

画像にカーソルを合わせると拡大表示されます。

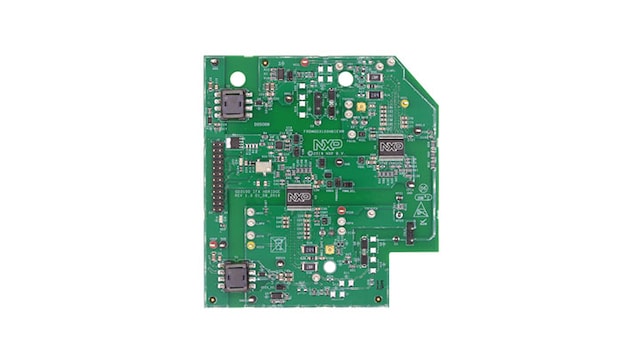

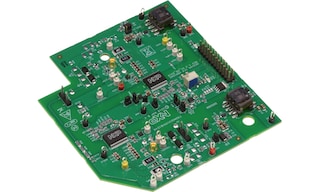

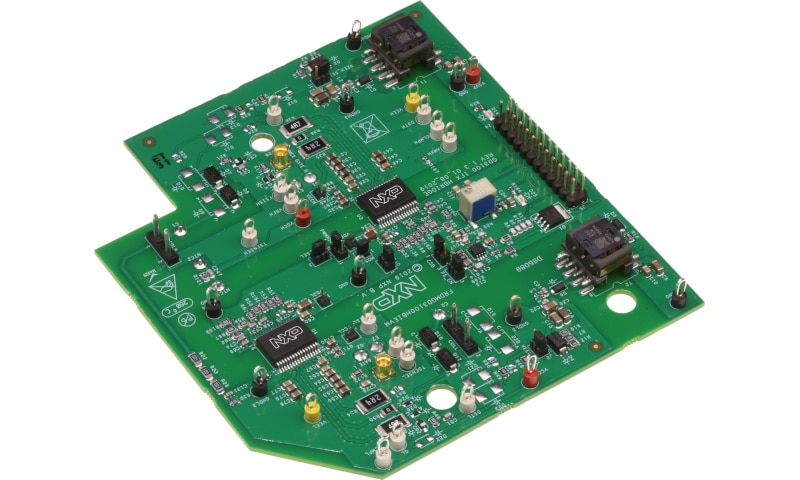

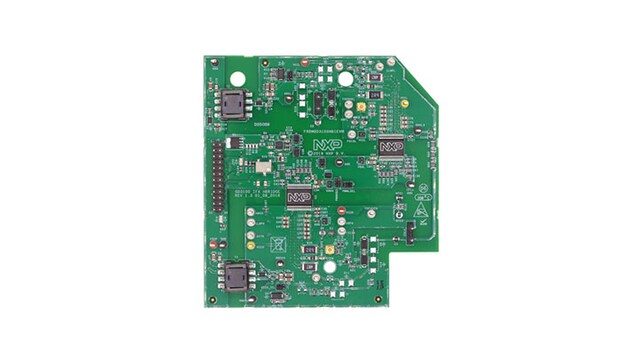

The FRDMGD3100HBIEVM is a half-bridge evaluation kit populated with two MC33GD3100 single channel IGBT gate drive devices on a half-bridge evaluation board. The kit includes the Freedom KL25Z microcontroller hardware for interfacing a PC installed with SPIGen software for communication to the SPI registers on the MC33GD3100 gate drive devices in either daisy chain or standalone configuration.

The GD3100 translator board is used to translate 3.3 V signals to 5.0 V signals between the MCU and MC33GD3100 gate drivers. The evaluation kit can be connected to a single phase of a HybridPACK™ Drive IGBT module for half-bridge evaluations and applications development.

対応製品

パワーマネージメント

パワートレイン＆エンジン制御

  • GD3100: Advanced High Voltage Isolated Gate Driver for IGBT and SiC MOSFETs

Features

Connectivity

  • Capability to connect to HybridPACK™ Drive IGBT module (FS820R08A6P2B) for half-bridge evaluations
  • Daisy chain SPI communication capable
  • Easy access to power, ground, and signal test points

Power Management

  • Power supply and fail-safe jumper configurable
  • DC link bus voltage monitor on low-side driver via AMXIN and AOUT

Support and Software

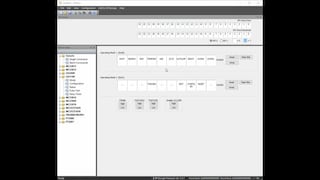

  • Easy to install and use SPIGen GUI for interfacing via SPI through PC. Software includes double pulse and short-circuits testing capability

購入オプション

FRDMGD3100HBIEVM-Image

クリックして展開

  • FRDMGD3100HBIEVM
    アクティブ

  • Half-Bridge evaluation board for HybridPACK Drive IGBT/SiC module featuring GD3100.

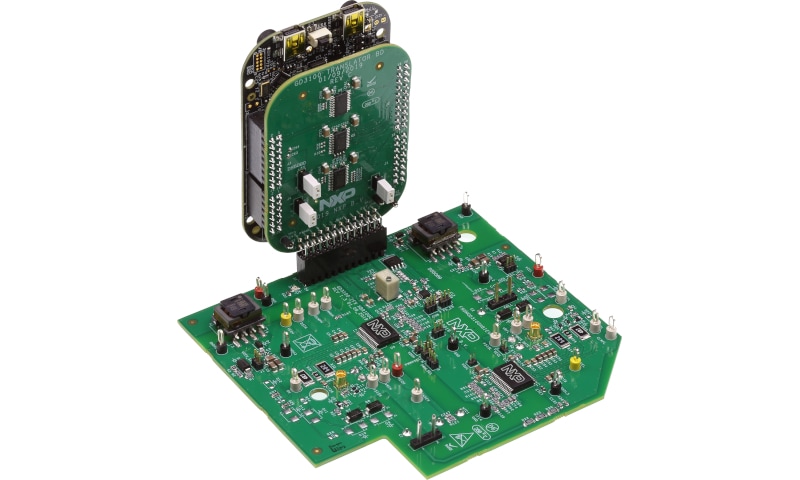

    • Complete assembly of KITGD3100 connected to FRDM-KL25Z
    • 3.3 V to 5.0 V translator board
    • Cable, USB type A male/type mini B male 3 ft
    • Quick start guide
  • $230.48 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
