PLATFORM MODULE FOR 8&16 BIT PRODUCTS.

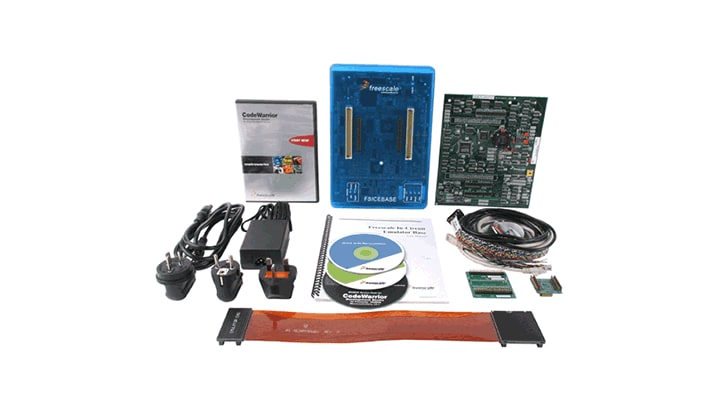

FSICE Base Station
The NXP® Semiconductors in-circuit emulator (FSICE) consists of a base station and a MCU emulator module (EM). Connected to a target system, the FSICE replicates the actual target system MCU and provides a full-featured emulator system for developing embedded systems using HC(9)08 microcontrollers.
The FISCEBASE station controls interaction between the MCU emulator module and the PC.
製品詳細
Features
Memory
- Real-time memory readout
- 128 Kbytes of emulation memory
Connectivity
- USB and Ethernet interfaces to PC
- Built-in USBMULTILINK08 cable
Debug
- CodeWarrior® debugging interface
- 1.33 M x 92-bit real-time trace buffer
- Nine triggers modes
- Four hardware triggers
- 32-bit time tag
- 1.33 M pre- or post-trigger points
- Custom time tag clock from 4100 Hz to 40 MHz
- 24 general-purpose logic inputs
Real-time bus state analyzer
- Real-time, nonintrusive, in-circuit emulation
- Four complex data or instruction breakpoints
- 128k Real-time variables
