8-bit General Purpose Ultra-Low-End Market KA MCUs

RS08KA
アクティブ

RS08KA microcontrollers (MCUs) are general-purpose 8-bit devices for the ultra-low-end market. Featuring RS08 architecture, RS08KA devices are specifically crafted to be more efficient and cost effective for small memory size microcontrollers. The MC9RS08KA MCU is a general-purpose device that can be used in a wide variety of applications, including high-brightness light-emitting diodes (LEDs), lighting system controls, small handheld devices, toys, AC line voltage monitoring and simple logic, analog drivers and ASIC replacements. It’s ideal for transitioning from solid-state relays and switching systems to a full electronic solution.

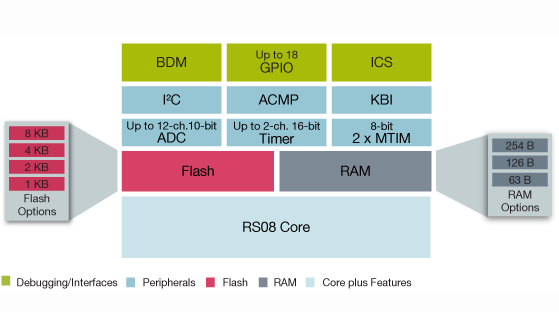

ブロック図

S08KA Microcontroller Block Diagram

S08KA Microcontroller Block Diagram
図を取得する PDF

Features

8-bit RS08 Central Processor Unit (CPU)

  • Up to 10 MHz (bus frequency) RS08 CPU at 1.8 volts for 100 ns minimum instruction time
  • Subset of HC08 instruction set with added BGND instruction
  • Supports tiny/short address mode
  • Index addressing scheme through memory mapped registers X and D[X] within the tiny address range
  • 14 byte code-efficient RAM
  • X and D[X] mapped within code-efficient tiny address space
  • 16 byte code-efficient peripheral register space
  • Page window
  • Simplified interrupt mechanism
  • Subroutine call/return mechanism

Integrated Third-Generation Flash

  • Fast, byte-writable programming— up to 20 µs/byte
  • Offers 1 KB write/erase cycles minimum over temperature

Flexible Clock Options

  • Internal clock source module containing a frequency-locked loop (FLL) controlled by internal or external reference
  • Precision trimming of internal reference allows typical 0.2 percent resolution and +1 percent to -1 percent deviation over operating temperature and voltage
  • Internal reference clock can be trimmed from 31.25 kHz to 39.065 kHz, allowing for maxim 10 MHz Bus frequency output

Timer

  • 2 x 8-bit modulo timer with 8-bit prescaler
  • 2-ch., 16-bit timer/PWM
  • Allows external timer clock source

ADC

  • 12-ch., 10-bit resolution
  • 2.5 µs conversion time; automatic compare function
  • Trigger conversion using RTI counter

Analog Comparator

  • Option to compare to internal reference
  • Option to route comparator output directly to pin
  • Allows operation in MCU STOP mode

I2C

  • Inter-integrated circuit bus module capable of operation up to 100 kbps with maximum bus loading

Real-Time Interrupt

  • Real-time interrupt trigger with 3-bit prescaler
  • Built-in low-power 1 kHz clock source

Up to 18 GPIOs

  • Software selectable pull-ups on ports when used as input (internal pull-up on RESET)
  • Software selectable slew rate control on ports when used on output
  • 8-pin keyboard interrupt module with software selectable polarity on edge or edge/level modes

System Protection

  • Watchdog computer operating properly (COP) reset with option to run from dedicated 1 kHz internal clock source or bus clock
  • Low voltage detection with reset or interrupt
  • Illegal opcode and illegal address detection with reset
  • Security feature for flash

Background Debugging System

  • On-chip BDM

Package

  • Pin-compatible with SH, QG family

もっと見る

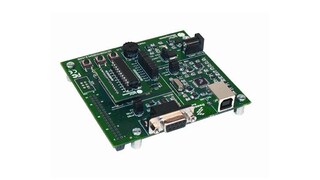

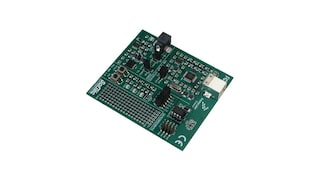

RS08KA Family Members

Features RS08KA1 RS08KA2 RS08KA4 RS08KA8
BUS Speed (MHz) 10 10 10 10
FLASH (KBytes) 1 2 4 8
RAM (Bytes) 63 63 126 254
GPIO 2 / 4 2 / 4 14 / 18 14 / 18
Keyboard Interrupt 3 / 5 3 / 5 8 8
ADC Channels None None 12 12
ADCMP Module Yes Yes Yes Yes
Serial Comunications None None I2C I2C
MTIM Module Yes Yes Yes Yes
Timers None None One Timer One Timer
Package 6-pin DFN
8-Pin SOIC/PDIP		 6-pin DFN
8-Pin SOIC/PDIP		 16-Pin SOIC/PDIP
20-Pin SOIC/PDIP		 16-Pin SOIC/PDIP
20-Pin SOIC/PDIP
NXP

購入/パラメータ

9 結果

マッチしていない 4 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

標準価格

パッケージタイプ

パッケージ端子数

MC9RS08KA1CDB
データ・シート

アクティブ

10K @ US$0.71

HVSON6

6

MC9RS08KA2CDB
データ・シート

アクティブ

10K @ US$0.77

HVSON6

6

MC9RS08KA2CSC
データ・シート

アクティブ

10K @ US$0.68

SO8

8

MC9RS08KA4CTG
データ・シート

アクティブ

10K @ US$0.87

TSSOP16

16

MC9RS08KA4CWG
データ・シート

アクティブ

10K @ US$0.85

SO16

16

MC9RS08KA4CWJ
データ・シート

アクティブ

10K @ US$0.95

SO20

20

MC9RS08KA8CTG
データ・シート

アクティブ

10K @ US$0.92

TSSOP16

16

MC9RS08KA8CWG
データ・シート

アクティブ

10K @ US$0.87

SO16

16

MC9RS08KA8CWJ
データ・シート

アクティブ

10K @ US$0.99

SO20

20
