JN5169XK020
アクティブ -
ZigBee Lighting/Sensor Node Expansion Kit.
ZigBee Lighting/Sensor Node Expansion Kit
Note: JN5189/88T is preferred for any new design. No new software releases planned

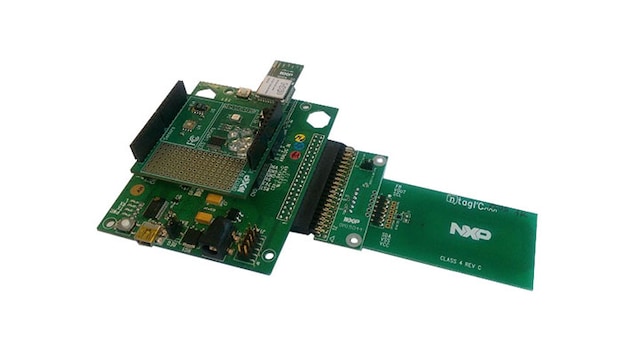

The JN5169XK020 expansion kit contains components that form a ZigBee node based on the NXP® JN5169 wireless microcontroller. The node provides lighting and sensor functionality. It can participate in a ZigBee wireless network which may, for example, be created using components of the JN516x-EK004 or JN516x-EK001 ZigBee Evaluation Kit. It can be introduced into the network via ZigBee commissioning or, optionally, via NFC commissioning using the NTAG® I²C kit (available separately).
Pre-programmed software:
The JN5169 module supplied in this kit is pre-programmed as a Dimmable Light for use in the ZigBee Smart Home Demonstration provided in the JN516x-EK004 Evaluation Kit.
Re-programming:
The JN5169 module can be re-programmed via a serial connection from a PC running a JN51xx Flash Programmer utility to download a new application to the Flash memory on the JN5169 device. A suitable utility is provided in the "BeyondStudio for NXP" toolchain (JN-SW-4141).
製品詳細
対応製品
ワイヤレス・コネクティビティ
ZigBee
- JN5169: ZigBee and IEEE802.15.4 Wireless Microcontroller with 512 KB Flash, 32 KB RAM
Features
Microcontroller
- With integrated PCB antenna
- 2.4 GHz operation
JN5169 MCU
Connectivity
- USB cable for connecting the node to a PC (e.g. for programming purposes)
- Adaptor (OM15044) for connecting an NTAG® I2C antenna board (not included) to the Carrier Board
Sensors
- Light sensor
- Humidity/temperature sensor
Expansion Port
- Carrier Board (OM15043) to accommodate the expansion board and JN5169 module
- Lighting/Sensor Expansion Board (DR1175) featuring white dimmable LED cluster
- RGB color LED module
Target Applications
- ZigBee On/Off Light
- ZigBee Colour Light
- ZigBee Dimmable Light
- ZigBee Colour Dimmable Light
- ZigBee Extended Colour Light
- ZigBee Colour Temperature Light
- ZigBee On/Off Ballast
- ZigBee Dimmable Ballast
- ZigBee Light Sensor or Light Level Sensor
