Evaluation Kit for MC06XS4200, Dual High Side Switch

KIT06XS4200EVBE アクティブ

画像にカーソルを合わせると拡大表示されます。

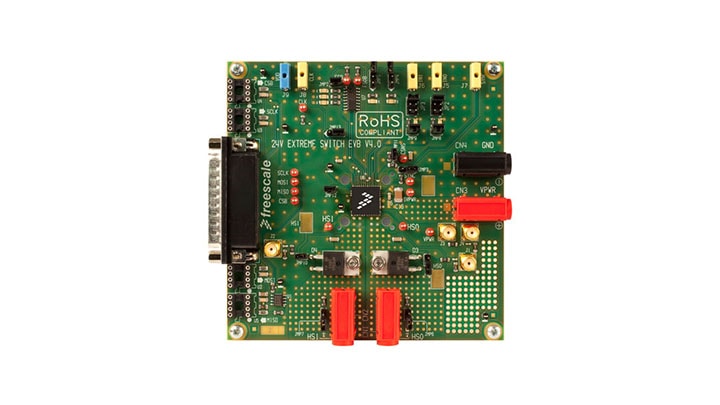

This eXtreme switch evaluation board demonstrates the capability of the MC06XS4200 as a 24 V dual high side switch product, that provides integrated control along with a large number of protective and diagnostic functions.

This product has been designed for truck, bus, and industrial applications. The low RDS (ON) channels (< 6.0 mOhm) control different load types; bulb lamps, solenoids, or DC motors. Control, device configuration, and diagnostics are performed through a 16-bit SPI (serial peripheral interface), allowing easy integration into existing applications. Both channels can be controlled individually by external/internal clock-signals or by direct inputs.

製品詳細

対応製品

パワーマネージメント

ハイサイド・スイッチ

  • MC24XS4: 24 V Multipurpose Low RDSON eXtreme Switch

Features

Connectivity

  • Output with selectable slew-rate satisfies electromagnetic compatibility (EMC) requirements

Power Management

  • Input voltage operation range from 6.0 to 58 V

User Components

  • Dual high side switches (each < 6.0 mOhm RDS(ON))

General Specifications

  • Each output can be controlled with an internal PWM modulated clock signal, instead of an external clock
  • Programming, control, and diagnostics accomplished via the use of a 16-bit SPI interface

購入オプション

KIT06XS4200EVBE-Image

クリックして展開

  • KIT06XS4200EVBE
    アクティブ

  • Evaluation Kit - MC06XS4200, Dual 24 V, 6.0 mOhm High Side Switch.

    • KIT06XS4200EVBE Hardware
    • Quick Reference Guide
  • $92.46 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
