24 V Multipurpose Low RDSON eXtreme Switch

MC24XS4 アクティブ

The NXP 24XS4 devices are part of a 24 V high side switch product family with integrated control and multiple protective and diagnostic functions.

  • Designed for truck, bus and industrial applications
  • The low RDSON channels can control different load types; bulb lamps, solenoids or DC motors
  • Control, device configuration and diagnostics are performed through a 16-bit SPI, allowing easy integration into existing applications
  • Both channels can be controlled individually by external or internal clock signals for PWM mode, or by direct inputs and can also be parallelized
  • With increased integration, the switch drives lighter-weight, smaller systems and a lower component count

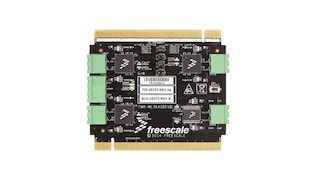

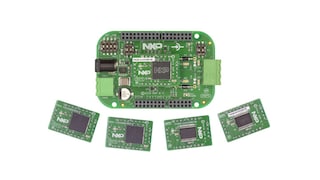

  • Easy Tower® System eXtreme Switch module configuration

製品画像を見る

ブロック図

Somplified Application Drawing

Features

Key Features

  • Normal operating range: 8.0 - 36 V, extended range: 6.0 - 58 V
  • 3.3 V and 5.0 V compatible 16-bit daisy-chainable SPI control
  • Flexible load management from 1 to 24 A with possible parallel output operating modes
  • Programmable dynamic threshold overcurrent protection and over-temperature protection with programmable auto-retry functions
  • Accurate temperature and synchronous/asynchronous current sensing
  • Individually programmable internal/external PWM clock signals
  • Sleep mode with minimal supply current (< 10 µA @ 24 V)
  • Compatible PCB footprint and SPI software driver among the family

比較表

24XS4

Product Datasheet # of outputs RDSon (mOhm) Package Suggested tool
MC06XS4200 Datasheet [English] Dual 2 x 6.0 PQFN 23 KIT06XS4200EVBE
MC10XS4200 Datasheet [English] Dual 2 x 10.0 PQFN 23 KIT10XS4200EVBE
MC20XS4200 Datasheet [English] Dual 2 x 20.0 PQFN 23 KIT20XS4200EVBE
MC22XS4200 Datasheet [English] Dual 2 x 20.0 SOIC-EP 32 KIT22XS4200EKEVB

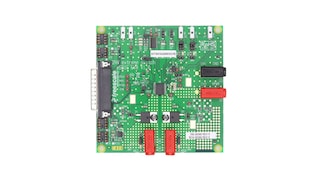

MC50XS4200 Datasheet [English] Dual 2 x 50.0 SOIC-EP 32 KIT50XS4200EKEVB

購入/パラメータ

9 結果

マッチしていない 10 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

製品機能

標準価格

パッケージタイプ

パッケージ端子数

Load Current (IL) [TYP] (A)

Load Current (IL) [MAX] (A)

チャネル数

Drain-to-Source On Resistance (Typ) (mOhm) (RDS(ON))

負荷電源電圧（最小）（V）

負荷電源電圧（最大）（V）

電源電圧 [最大] (V)

電源電圧 [最小] (V)

SPI [bits]

インターフェースと入力制御

Ambient Operating Temperature (Min to Max) (℃)

MC06XS4200CFK
データ・シート

アクティブ

high side switch

1K @ US$5.23

HQFN23

23

12

15

2

6

8

36

5.5

3

16

Direct from input, SPI

-40 to 125

MC06XS4200DFK
データ・シート

アクティブ

high side switch

1K @ US$5.23

HQFN23

23

12

15

2

6

8

36

5.5

3

16

Direct from input, SPI

-40 to 125

MC10XS4200BDFK
データ・シート

アクティブ

high side switch

1K @ US$3.78

HQFN23

23

8.5

9

2

10

8

36

5.5

3

16

Direct from input, SPI

-40 to 125

MC10XS4200CFK
データ・シート

アクティブ

high side switch

1K @ US$3.78

HQFN23

23

7.5

9

2

10

8

36

5.5

3

16

Direct from input, SPI

-40 to 125

MC10XS4200DFK
データ・シート

アクティブ

high side switch

1K @ US$3.78

HQFN23

23

7.5

9

2

10

8

36

5.5

3

16

Direct from input, SPI

-40 to 125

MC20XS4200BDFK
データ・シート

アクティブ

high side switch

1K @ US$3.36

HQFN23

23

3

4.5

2

20

8

36

5.5

3

16

Direct from input, SPI

-40 to 125

MC20XS4200DFK
データ・シート

アクティブ

high side switch

1K @ US$3.36

HQFN23

23

3

4.5

2

20

8

36

5.5

3

16

Direct from input, SPI

-40 to 125

MC22XS4200DEK
データ・シート

アクティブ

high side switch

1K @ US$2.92

HSOP32

32

4.2

4.3

2

22

8

36

5.5

3

16

Direct from input, SPI

-40 to 125

MC50XS4200DEK
データ・シート

アクティブ

high side switch

1K @ US$2.56

HSOP32

32

1.65

1.7

2

50

8

36

5.5

3

16

Direct from input, SPI

-40 to 125
