KIT33882EKEVB
アクティブ -
Evaluation Kit MC33882 -Smart Six Output Switch (0.3 Ohm RDSon) with SPI and Parallel Input Control.
- KIT33882EKEVB Hardware
- Quick Reference Guide
Evaluation Kit MC33882 -Smart Six Output Switch with SPI and Parallel Input Control

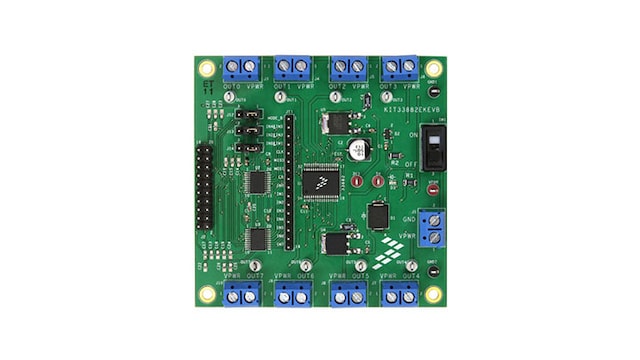

The KIT33882EKEVB evaluation board allows the user to exercise all the functions of the MC33882 smart six-output, low-side switch with SPI and Parallel Input Control.
- Reduces part count and simplified circuitry
- Simplifies interfacing to industry standard 5.0 V microprocessors having SPI
- Simplifies means of getting diagnostic fault status
- Offers built-in device protection features
- Provides efficient control of up to six 1.0 A and two low current loads (30 mA) using a single IC
- 0.3 Ohm RDSon
製品詳細
対応製品
パワーマネージメント
ローサイド・スイッチ
- MC33882: 6 Output Switch, SPI, Parallel Input Control
Features
Connectivity
- FSD connector
-
NXP® SPI Generator (SPIGen) provides the user interface to the MC33882 SPI port
- Send commands to the IC
- Receive status information from the IC
- Output terminals for loads
Test Terminals
- Test points for inputs, outputs, and SPI signals
