Automotive Engine Control IC
The NXP® MC33810 is an eight channel output driver IC intended for automotive engine control applications.
- The IC consists of four integrated low side drivers and four low side gate pre-drivers
- The low side drivers are suitable for driving fuel injectors, solenoids, lamps, and relays
- The four gate pre-drivers can function either as ignition IGBT gate pre-drivers or as general purpose MOSFET gate pre-drivers
- When configured as a general purpose gate pre-driver, the MC33810 provides external MOSFETs with short circuit protection, inductive flyback protection and diagnostics

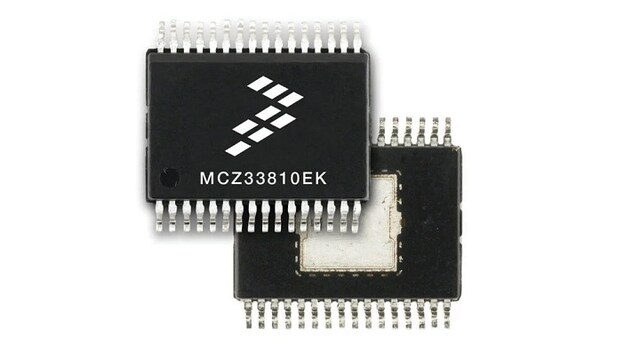

- Packaged in a 32 pin (0.65mm pitch) exposed pad SOIC.
製品詳細
Features
Key Features
- Designed to Operate over the range of 4.5 V ≤ VPWR ≤ 36 V
- Quad Ignition IGBT or MOSFET gate pre-driver with Parallel/SPI and/or PWM Control
- Quad Injector Driver with Parallel/SPI Control
- Interfaces Directly to MCU Using 3.3 V / 5.0 V SPI Protocol
- Injector Driver Current Limit - 4.5 A Typical
- Independent Fault Protection and Diagnostics
- VPWR Standby Current 10 µA Typical
- Load current(IL) 1 A (Typ)
- 4 channels
- Drain-to-source on recistance 100000 mOhm RDS(ON) (Typ)
Product Longevity Program
- This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The MC33810 is included in the 15-year program
