KIT33972AEWEVBE
アクティブ -
Evaluation Kit - MC33972, Multiple Switch Detection Interface with Suppressed Wake-Up.
- KIT33972AEWEVBE Hardware
- Quick Reference Guide

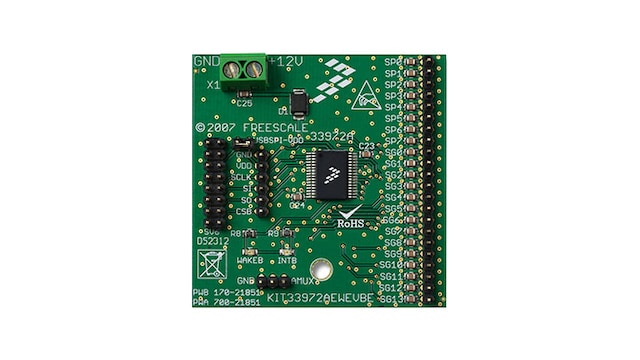

Evaluation Kit - 33972, MSDI with Suppressed Wake-Up
This Evaluation Kit features the MC33972A Multiple Switch Detection Interface with suppressed wake-up is designed to detect the closing and opening of up to 22 switch contacts. The switch status, either open or closed, is transferred to the microprocessor unit (MCU) through a serial peripheral interface (SPI). The device also features a 22-to-1 analog multiplexer for reading inputs as analog. The analog input signal is buffered and provided on the AMUX output pin for the MCU to read.The 33972 device has two modes of operation, Normal and Sleep. Normal Mode allows programming of the device and supplies switch contacts with pull-up or pull-down current as it monitors switch change of state. The Sleep Mode provides low quiescent current, which makes the 33972 ideal for automotive and industrial products requiring low sleep-state currents.
This Evaluation kit may be used with the KITUSBSPIDGLEVME.
製品詳細
対応製品
インターフェース
シグナル・コンディショナ
- MC33972: MSDI with Suppressed Wakeup
Features
Connectivity
- 8 programmable inputs (switches to battery or ground)
- 14 switch-to-ground inputs
- Interfaces directly to MPU using 3.3 V / 5.0 V SPI protocol
Power Management
- Designed to operate 5.5 V ≤ VPWR ≤ 26 V
- Switch input voltage range -14 V to VPWR, 40 V Max
- Selectable wetting current (16 mA or 2.0 mA)
- Typical standby current - VPWR = 100 µA and VDD
