MSDI with Suppressed Wakeup

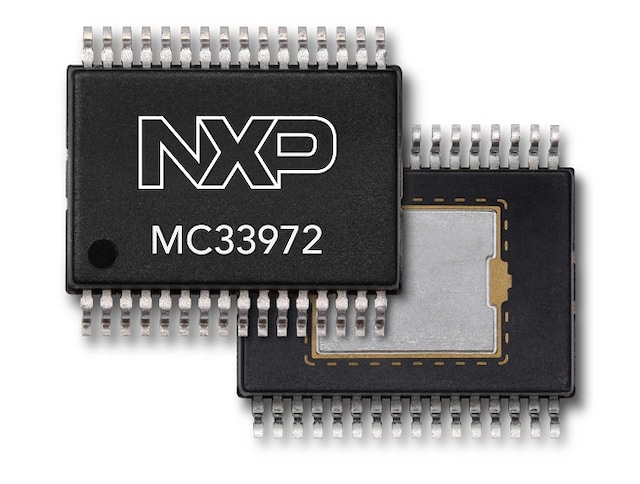

MC33972 アクティブ

画像にカーソルを合わせると拡大表示されます。

The NXP MC33972 multiple switch detection interface with suppressed wake-up is designed to detect the closing and opening of up to 22 switch contacts.

  • The switch status, either open or closed, is transferred to the MCU through a SPI
  • Features a 22-to-1 analog multiplexer for reading inputs as analog. The analog input signal is buffered and provided on the AMUX output pin for the MCU to read
  • Two modes of operation:
    • Normal: allows programming of the device and supplies switch contacts with pull-up or pull-down current monitoring switch change of state
    • Sleep: provides low quiescent current, making MC33972 ideal for automotive and industrial products requiring low sleep state currents

ブロック図

NXP MC33972 Power Actuation

NXP MC33972 Power Actuation Block Diagram
図を取得する PDF

Features

Key Features

  • Interfaces directly to microprocessor using 3.3 V / 5.0 V SPI protocol
  • Selectable wake-up on change of state
  • Eight programmable inputs (switches to battery or ground)
  • Fourteen switch-to-ground inputs
  • Active Interrupt (INT) on change-of-switch state
  • Switch Voltage Range -14 – VPWR
  • Operating Voltage 5.5 V – 26 V (VPWR)
  • Power train control, signal conditioning and switch monitoring device functions
  • 32 package termination count
  • Package type: SSOP32
  • Ambient operating temperature -40 to 125 °C
