Evaluation Kit - MC40XS6500EK, Penta High Side Switch

KIT40XS6500EKEVB アクティブ

画像にカーソルを合わせると拡大表示されます。

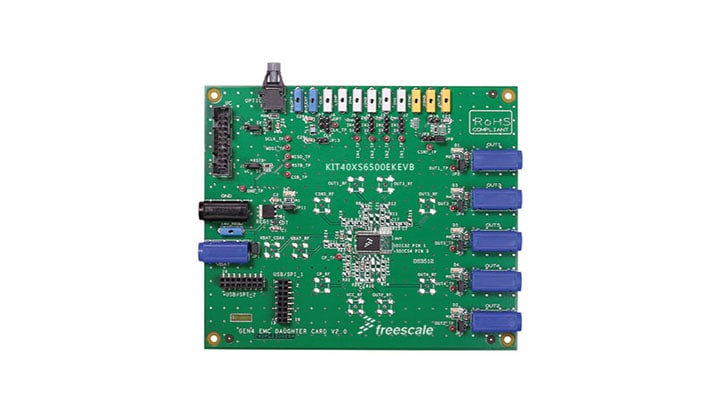

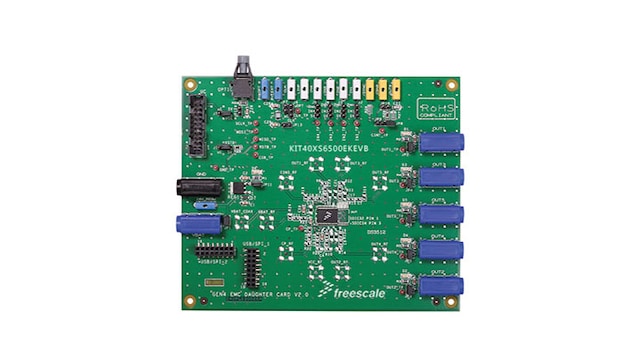

This eXtreme switch evaluation board demonstrates the capability of the MC40XS6500EK as a 12 V penta high side switch product, that provides integrated control along with a large number of protective and diagnostic functions.

This product has been designed for truck, bus, and industrial applications. The low RDS(ON) channels (< 40 mOhm) control different load types; bulb lamps, solenoids, or DC motors. Control, device configuration, and diagnostics are performed through a 16-bit SPI (serial peripheral interface), allowing easy integration into existing applications. All five channels can be controlled individually by external/internal clock-signals or by direct inputs. Using the internal clock allows fully autonomous device operation.

製品詳細

対応製品

パワーマネージメント

ハイサイド・スイッチ

  • MC12XS6: External Automotive Lighting Multi-Channel eXtreme Switch

Features

Power Management

  • Input voltage operation range from 6.0 to 58 V

User Components

  • Penta high side switches (each < 40 mOhm RDS(ON))

General Specifications

  • Programming, control, and diagnostics accomplished via the use of a 16-bit SPI interface
  • Output with selectable slew-rate satisfies electromagnetic compatibility (EMC) requirements
  • Each output can be controlled with an internal PWM modulated clock signal, instead of an external clock

購入オプション

KIT40XS6500EKEVB-Image

クリックして展開

  • KIT40XS6500EKEVB
    アクティブ

  • Evaluation Kit - MC40XS6500, 12 V, Penta 40.0m Ohms, High Side Switch.

    • KIT40XS6500EKEVB Hardware
    • Quick Reference Guide
  • $93.84 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
