PowerQUICC® III Modular Development System
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
Archived content is no longer updated and is made available for historical reference only.
The MPC8568E Modular Development System is designed for hardware and software developers using the MPC8568E PowerQUICC® III family to accelerate development and testing, and improve time to market. The MPC8568E MDS enables:
- Silicon bring-up/verification
- Software/application development and support
- Performance benchmarking
- Customer evaluation
The MPC8568E MDS consists of multiple boards that provide a comprehensive development system—an MPC8568 processor board, a platform I/O board and several expansion modules, adding support for a TDM, ATM or PCI agent.

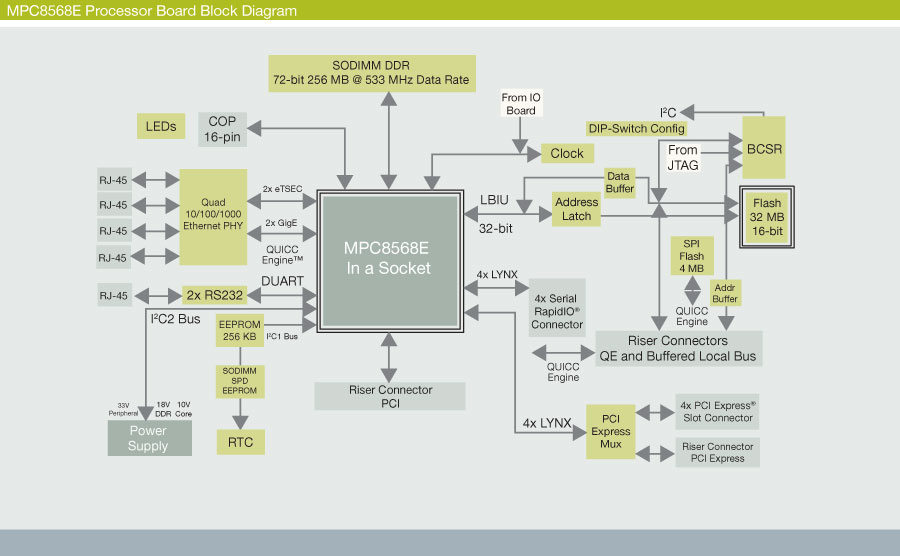

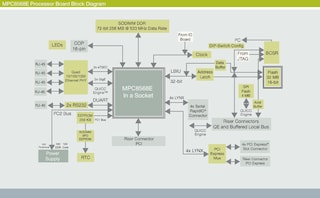

MPC8568E Processor Board
The MPC8568E Processor Board includes an MPC8568E processor running up to 1.33 GHz, along with circuitry to utilize the following:
- 4x Gigabit Ethernet (GbE) and dual asynchronous receiver/transmitter (DUART)
- PCI Express®
- Peripheral component interconnect (PCI)
- Serial RapidIO®
- Double data rate (DDR) memory
- Serial electrically erasable programmable read-only memory (EEPROM)
- Control switches and light emitting diode (LED) indicators
Platform I/O Board (PIB)
The Platform I/O Board is an enablement platform allowing the user to add additional PHY or other modules for evaluation with the processor board (PB):
- Supports up to four PCI-based PMC form factor slots
- PMC off-the-shelf modules can be connected to the PB via the PIB
- The PIB is an AdvancedTCA® form factor for users who want to install it into an AdvancedTCA chassis
- Serial RapidIO®
- The PIB includes support for:
- 2x optical Gigabit Ethernet
- 8x MII 10/100 Base-T Fast Ethernet
- Supports the MPC83xx PB and all PMC modules provided by NXP®
PMC Expansion Modules
- PQ-MDS-PCIEXP - Expansion module supporting multiple PCI Agents
- PQ-MDS-PMCPCIE - Single-slot PMC to PCI agent connector to enable additional PCI-based boards for evaluation
- PQ-MDS-QOC3 - Supports up to 4x 155 Mbps optical transceivers for evaluating the Utopia L2 /POS bus
- PQ-MDS-T1 - Supports E1/T1, DS3, T3 I/F with an option of two POTS analog telephone lines
製品詳細
Features
Memory
- DDR2 on SODIMM and 533 MHz, 72-bit, 256 MB with 8-bit ECC support
Connectivity
- PCI edge connector for agent mode with additional adapter (3.3 V and 5 V compatible)
- PCI Express edge connector for agent mode with additional adapter
- PCI host mode through PIB
- Dual 10/100/1000 Mbit/s Ethernet ports for QUICC Engine® (UCC1 and UCC2)
- Dual 10/100/1000 Mbit/s Ethernet ports for dual eTSEC
- 4x SerDes connected to Serial RapidIO connector
- 4x SerDes connected to PCI Express connectors through PCI Express MUX to support host or agent modes:
- 4x PCI Express edge connector for agent mode can be plugged in a PC
- 4x PCI Express slot connector for host mode accepts standard (off-the-shelf) PCI Express cards
Local Bus I/F:
- 32-bit 64 MB SDRAM memory and 133 MHz soldered on board with parity support
- 16-bit 32 MB NOR flash in a socket
- Address latch, data, and control buffers to support slow devices on the PIB (and PMC boards)
- FPGA BCSR
Debug
- Debug port access via COP connector
Two I2C buses
- Bus for 256 kb EEPROM, real-time clock (RTC), SODIMM SPD EEPROM, BCSR, and PIB
Three operation modes:
- Stand-alone mode
- PIB combined mode—plugged on the PIB
- PCI mode—plugged into a PC as standard PC card (cost effective) through PCI or PCI Express
Support
- Supports the MPC8568E, running up to 1.33 GHz at 1.1V core voltage in a 1023-pin TBGA 1 mm pitch package
- PCI support—32-bit and 66 MHz
Components
- Dual RS-232 transceiver connected to DUART
QUICC Engine functions supported
- All QUICC Engine signals are available on PMC0 and PMC1 on the PIB
- 8x TDM port with the PQ-MDS-T1 card on the PIB (on PMC0)
- 2x DS3 port with the PQ-MDS-T1 card on the PIB (on PMC0)
- 2x UTOPIA/POS Level 2, 8/16-bits, multi-
- PHY multidevice with PQ-MDS-QOC3 cards on the PIB (on PMC0 and PMC1)
- 6x 10/100 Mbit/s RMII Ethernet ports on the PIB
- RoHS compliant
- FCC compliant
- CE compliant
Platform I/O Board Features
- AdvancedTCA form factor:
- Operates in an AdvancedTCA chassis or standalone
- High-speed riser connectors to enable connections to the system board
- Four sets of PMC connectors for PCI and QUICC Engine functions
- QUICC Engine signals are split between two sets of PMC connectors
- Two sets of PMC connectors can run simultaneous signals to two ATM modules
- each one of the ATM modules has ADTEC connectors
- One PCI bus—PCI operates as 32-bit PCI (on two PMC slots)
- One RS422 port
- Quad 10/100 Ethernet PHYs with RMII interface (eight available, only four used for MPC8568E)
- Two 10/100/1000 Ethernet ports with fiber optics connectors
- I2C for BCSR read and write
- Logic analyzer connectors for all CE signals
- Dual 48V input power supply
- AdvancedTCA input connector (ZONE-1)
- Backplane connectors (ZD Zone-2) for high-speed signals
