QorIQ® T1024 Development Board

T1024RDB

画像にカーソルを合わせると拡大表示されます。

The QorIQ® T1024 reference design board (T1024RDB) is a high-performance evaluation and development platform supporting the QorIQ T1024 and T1014 communications processors built on Power Architecture® technology.

Intended for evaluation of the QorIQ T1 family of communications processors in networking and Ethernet-centric applications, such as mixed control and data plane in fixed routers, switches, Internet access devices, firewall and other packet-filtering applications, plus general-purpose embedded computing.

The QorIQ T1024RDB can help shorten time to market and serves as a reference for hardware and software development, debugging and performance evaluation prior to production.

ブロック図

T1024RDB-BD

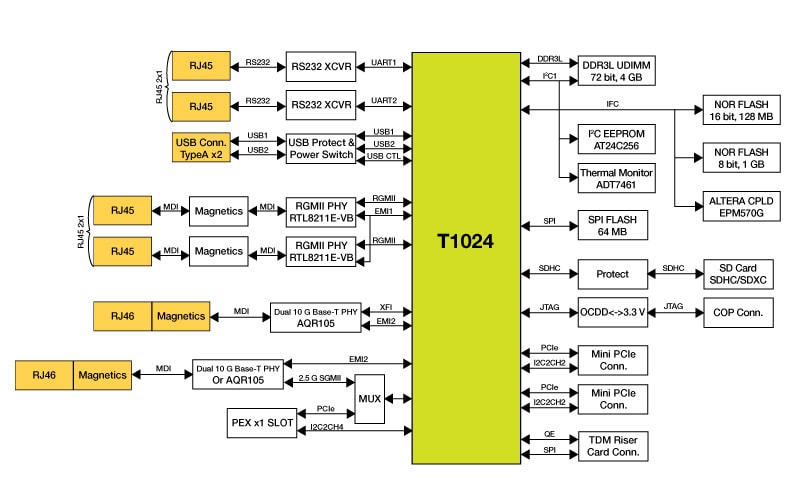

QorIQ T1024 Reference Design Board Block Diagram
図を取得する PDF

対応製品

プロセッサ＆マイクロコントローラ

Tシリーズ

  • T1024: QorIQ® T1024/14 and T1023/13 Dual- and Single-Core Communications Processors

Features

Processor

  • QorIQ® T1024 processor at 1.4 GHz dual-core with 1600 MT/s DDR3L data rate
  • Multiple SysClk inputs for generating various device frequencies

Memory

  • 4 GB unbuffered DDR3L SDRAM UDIMM/RDIMM (64-bit bus), 1600 MHz data rate
  • 128MB NOR Flash, 16-bit
  • 1GB SLC NAND Flash
  • SD Connector to Interface

PCI Express

  • One PCIe slot
  • Two Mini-PCIe connectors

USB 2.0

  • Dual USB slot, connected to USB PHY

Ethernet

  • One onboard SGMII 10/100/1G Ethernet ports
  • Two onboard RGMII 10/100/1G Ethernet ports

UART

  • Two UART ports at up to 115200 bps

Others

  • JTAG/COP for debugging
  • Thermal monitor

購入オプション

T1024RDB-PC-Image

クリックして展開

  • T1024RDB-PC
    アクティブ

  • T1024 development System.

  • の数量に対して 1
代理店からの注文
