QorIQ® T1024/14 and T1023/13 Dual- and Single-Core Communications Processors
The QorIQ® dual-core T1024 and T1023 and single-core T1014 and T1013 communications processors combine 64-bit cores, built on Power Architecture® technology, with high-performance Data Path Acceleration Architecture (DPAA) and network peripheral bus interfaces required networking, telecommunications and industrial networked applications. The QorIQ T Series platform offers optimized features for the industrial market, including a display interface unit for HMI, the QUICC Engine® for industrial protocol offload and ECC support for high reliability “always on” applications.
The T1024 and T1014 processors come in a full-featured 23x23 mm package, which provides scalable, pin compatibility with the quad-core T1042 processor, and even the eight core T2081 processor for price and power scaling with a single system design.
The QorIQ T1023 and T1013 communications processors are interface and power-optimized SoCs designed to deliver impressive single- or dual-core performance for cost and power sensitive networking and industrial systems. Both versions offer an excellent software compatible 64-bit and I/O upgrade path for the popular QorIQ P10XX family of 32-bit communications processors.
製品詳細

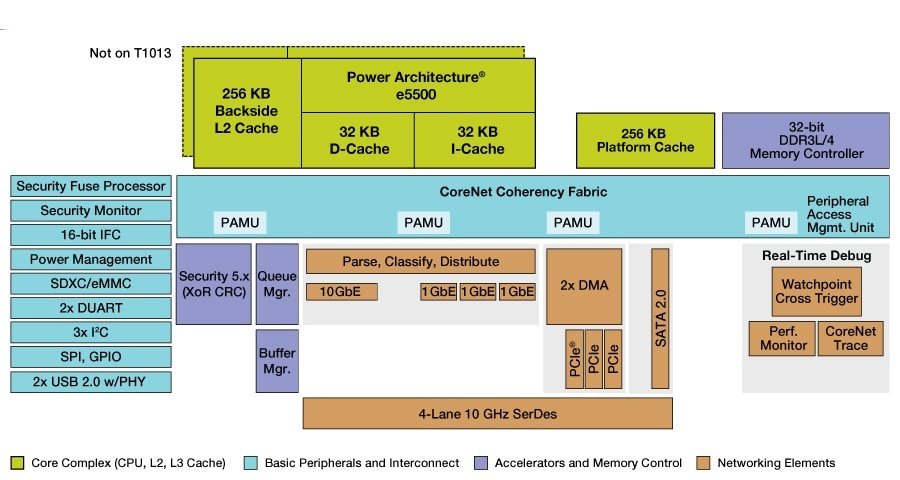

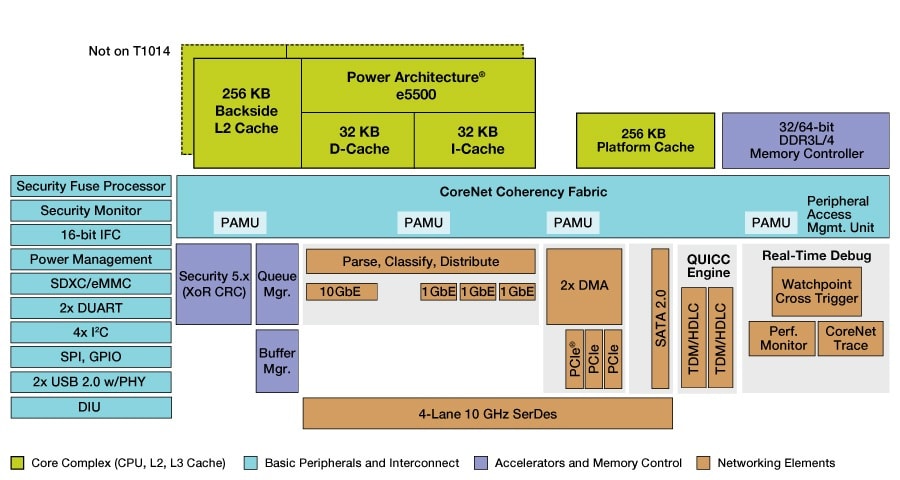

ブロック図
図を選択する。:
Features
Core Complex
- Single and dual e5500 cores, built on Power Architecture technology
- Up to 1.4 GHz with 64-bit ISA support
- Three levels of instructions: user, supervisor, hypervisor
- Hybrid 32-bit mode to support legacy software and transition to a 64-bit architecture
- 256 KB backside L2 cache
Networking Elements
- SerDes
- Four lanes at up to 10 Gbps
- Supports SGMII, QSGMII, PCIe and SATA
- Ethernet Interfaces
- 1x 10GbE and 3x 1GbE or 4x 1Gbe Gigabit Ethernet interfaces, with MACsec on all ports
Accelerators and Memory Control
- 32/64-bit DDR3L/4 SDRAM memory controller with ECC support
- Up to 1600 MT/s
- DPAA incorporating acceleration for the following functions: packet parsing, classification and distribution
- Queue management for scheduling, packet sequencing and congestion management
- Hardware buffer management for buffer allocation and de-allocation
- Integrated security acceleration (SEC)
Basic Peripherals and Interconnect
- CoreNet® platform cache
- 256 KB shared platform cache
- Hierarchical interconnect fabric
- CoreNet fabric supporting coherent and non-coherent transactions with prioritization and bandwidth allocation amongst CoreNet endpoints
- Additional peripheral interfaces one Serial ATA (SATA 2.0) controllers
- Two high-speed USB 2.0 controllers with integrated PHYs
- Enhanced secure digital host controller (SD/MMC/eMMC)
- Enhanced serial peripheral interface (eSPI)
- Two I²C controllers
- Four UARTS
- Integrated flash controller supporting NAND and NOR flash
- DMA
- Dual four channel
- Up to 4.1 Gbps Ethernet MACs as part of DPAA
- QUICC Engine®
- Support for legacy protocols TDM, HDLC, UART and ISDN
- High-speed peripheral interfaces
- Three PCI Express® 2.0 controllers
Additional Features
- Support for hardware virtualization and partitioning enforcement
- Extra privileged level for hypervisor support
- QorIQ® trust architecture
- Secure boot, secure debug, tamper detection, volatile key storage
- This product is included in Our product longevity program, with assured supply for a minimum of 10 years after launch
We recommend the following Quad Port Gigabit Copper EEE PHY
| F104S8A | F104X8A | |
|---|---|---|
| Description | QSGMII PHY Standard Temperature | QSGMII PHY Extended Temperature |
| Operating Temperature (°C) | 0 - 125 | -40 - 125 |
| Package Type | 12x12, QFN, 138-pin, 0.65mm pin pitch | 12x12, QFN, 138-pin, 0.65mm pin pitch |
| Read More |
関連製品
3.3 V, Two Differential Channel, 2-1 Multiplexer/Demultiplexer Switch
Bidirectional Voltage Level Translator for Open-Drain and Push-Pull Applications
16ビットI²CバスおよびSMBus I/Oポート（割込み対応）
USB PDおよびType-C電流制限電源スイッチ
Bidirectional High-Side Power Switch for Charger and USB‑OTG Combined Applications
High-Speed USB 2.0 Switch with Enable
購入/パラメータ
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
設計・リソース
ハードウェア
クイック・リファレンス
ボードタイプ.
4 ハードウェア提供
-

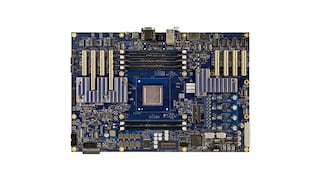

評価・開発ボードQorIQ® T1024 Development Board注目
-

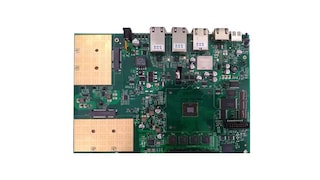

評価・開発ボードQorIQ® T1023 Development Board注目
-
エミュレータ、プローブ、プログラマCodeWarrior® TAP
-

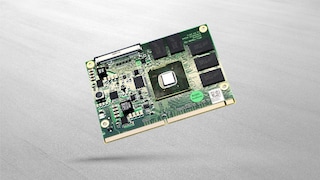

追加ハードウェアを利用可能 パートナー・ソリューションの特集を表示.
-

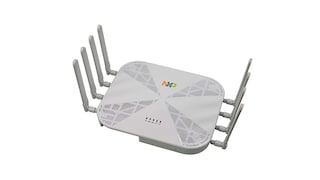

リファレンス・デザインT1023 WLAN Access Point System
