Freedom HW for MC12XSF and MC12XS6 families

FRDM-MC12XSF アクティブ

画像にカーソルを合わせると拡大表示されます。

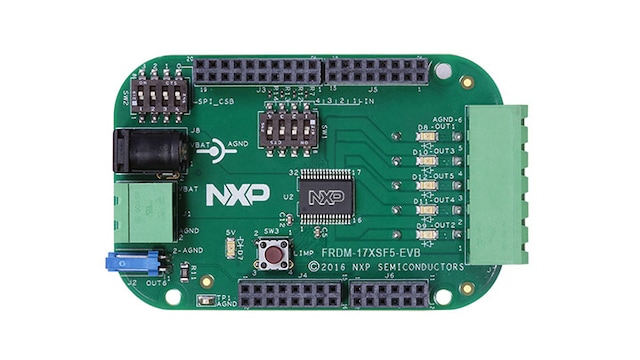

NXP's Freedom boards for MC12XSF and MC12XS6 are hardware tool for evaluation and development for the different industrial eXtreme switches such as automotive. These are 4 different boards pin-to-pin and software compatible that covers 4 different devices in SOIC32 package from these MC12XSF and MC12XS6 families.

These devices are 12 V quad or penta high side devices that features integrated control with high flexibility and a high number of protection and diagnostic functions.

These boards are easy to use thanks to the following interfaces:

  • FRDM-KL25Z and its SPIGEN Graphical User Interface
  • Freedom KL25z, KV10Z, K64F with Processor Expert components

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

KLシリーズ Arm Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

KVシリーズArm Cortex-M4/M0+/M7

  • KV1x: Kinetis® KV1x-75 MHz,  Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M0+

パワーマネージメント

ハイサイド・スイッチ

  • MC12XS6: External Automotive Lighting Multi-Channel eXtreme Switch

Features

Evaluation module

    4 different boards to cover 4 different devices in SOIC32 package

  • FRDM-17XSF5-EVB: covers MC17XSF500 and MC17XS6500 (5 outputs 17 mOhm)
  • FRDM-17XSF4-EVB: covers MC17XSF400 and MC17XS6400 (4 outputs 17 mOhm)
  • FRDM-08XSF4-EVB: covers MC08XSF421 and MC08XS6421 (2x08 mOhm and 2x21 mOhms)
  • FRDM-40XSF5-EVB: covers MC40XSF500 and MC40XS6500 (5 outputs 40 mOhm)

Can be driven by the 16-bit SPI using

  • KL25Z with SPIGen software
  • KL25Z, KV10Z and K64F using Processor Expert component Gen4eXtremeSwitch using CodeWarrior 10.6 or Kinetis Design Studio v3.0 or higher
  • With direct input signals in Failsafe mode operation (switch on board).

General Specifications

  • This board can control various types of loads such as solenoids, PLC, DC motors, bulbs, or LED.
  • These devices are 16-bit 5.0 MHz SPI, control of overcurrent profiles, channel control including PWM duty-cycles, output-ON and -OFF OpenLoad detections, thermal shut-down and prewarning, and fault reporting.

Power Management

  • Output current monitoring with programmable synchronization signal and battery voltage feedback.

Components

  • External smart power switch control.

購入オプション

FRDM-40XSF5-EVB-Image

クリックして展開

  • FRDM-40XSF5-EVB
    アクティブ

  • Freedom Expansion Board, MC40XSF500 - High-Side Switch, 12V, Penta 40mOhms.

    • Freedom board

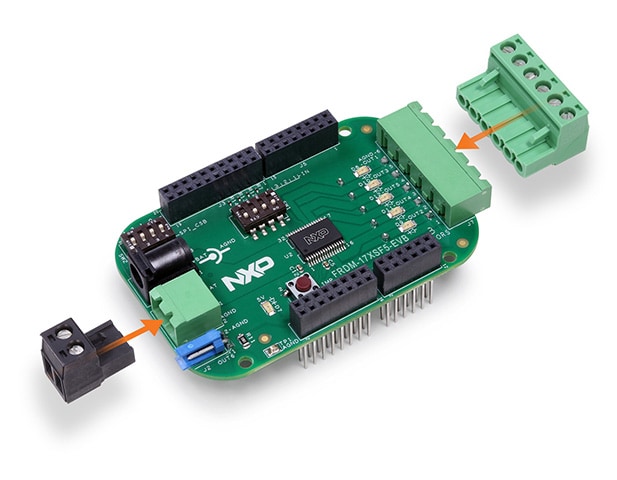

    • Connectors for power input/outputs
    • Quick Start Guide
  • $41.54 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
FRDM-17XSF5-EVB-Image

クリックして展開

  • FRDM-17XSF5-EVB
    アクティブ

  • Freedom Expansion Board, MC17XSF500 - High-Side Switch, 12V, Penta 17mOhm.

  • $41.54 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
FRDM-17XSF4-EVB-Image

クリックして展開

  • FRDM-17XSF4-EVB
    アクティブ

  • Freedom Expansion Board, MC17XSF400 - High-Side Switch, 18V, Quad 17mOhms.

  • $41.54 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
FRDM-08XSF4-EVB-Image

クリックして展開

  • FRDM-08XSF4-EVB
    アクティブ

  • Freedom Expansion Board, MC08XSF421 - High-Side Switch, 12V, Dual 8mOhms + Dual 21mOhms.

  • $41.54 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
