- FRDM-32XSG-EVB
Freedom HW for MC17XSG500 Device

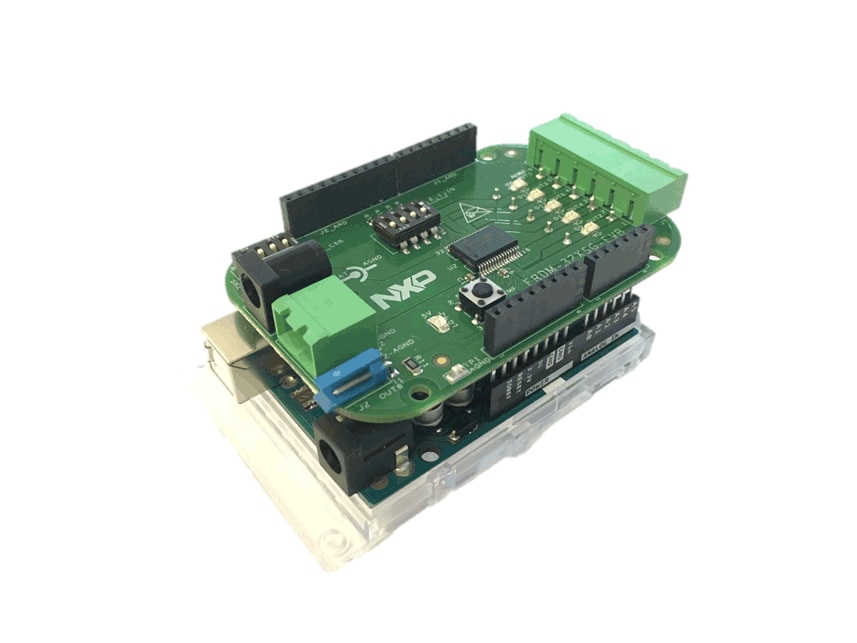

NXP's Freedom boards for MC32XSG family is a hardware tool for development with the MC17XSG500 associated with NXP Freedom boards or Arduino® Hardware. This device is a penta High Side switch that features integrated control with high flexibility and a high number of protection and diagnostic functions.

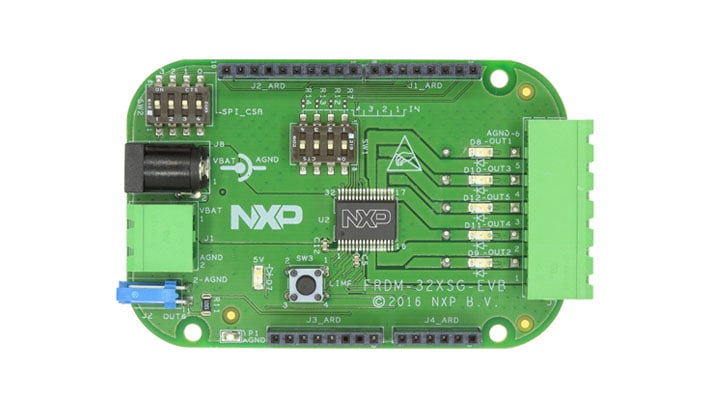

FRDM-32XSG-EVB is an easy to use solution for creating your own application that requires high power (protection at 11 A typical per channel) at low DC voltage (up to 32 V )
This board is is combined with the following interfaces:
- Software drivers and example for Arduino®
- Processor Expert components for the various Kinetis Freedom boards
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
KLシリーズ Arm Cortex-M0+
- KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
KVシリーズArm Cortex-M4/M0+/M7
- KV1x: Kinetis® KV1x-75 MHz, Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M0+
パワーマネージメント
ハイサイド・スイッチ
- MC32XSG: Industrial Multipurpose 32 V SPI-Controlled Smart Switch
Features
Key Features
- This board can control various types of loads such as solenoids, PLC, DC motors, bulbs or LED
- These devices are 16-bit 5.0 MHz SPI, control of overcurrent profiles, channel control including PWM duty-cycles, output-ON and -OFF OpenLoad detections, thermal shut-down and prewarning, and fault reporting
- The device can be driven by the 16-bit SPI using:
- Kinetis x Series Freedom boards using Processor eXpert Gen4eXtremeSwitch component using CodeWarrior 10.6 or Kinetis Design Studio v3.0 or higher
- Arduino® Uno (all versions) and Leonardo
- With direct input signals in fail-safe mode operation (switch on board)
Power Management
- External smart power switch control Output current monitoring with programmable synchronization signal and battery voltage feedback
設計・リソース
ソフトウェア
クイック・リファレンス ソフトウェア・タイプ.
5 ソフトウェア・ファイル
-
評価用パッケージ
Arduino® SW drivers for FRDM-32XSG-EVB
-
デバッグと可視化ツール
Processor Expert Software package
注: より快適にご利用いただくために、ソフトウェアのダウンロードはデスクトップで行うことを推奨します。
