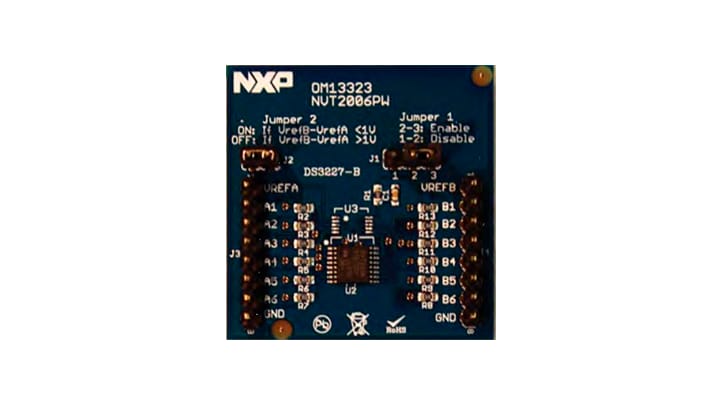

NVT2006PW Demo Board

OM13323 アクティブ

画像にカーソルを合わせると拡大表示されます。

The NVT2003DP (OM13319), NVT2004TL (OM13316) and NVT2006PW (OM13323) demo boards are designed to evaluate the NXP® 3-channel, 4-channel and 6-channel bi-directional voltage level translators. The demo boards interface between device I/Os operating at different voltage levels. Since the NVT2003DP, NVT2004TL, and NVT2006PW devices are passive devices, pull-up resistors may be needed depending on the I/O interface type (totem pole or open-drain), a difference in translation voltage, and the translation direction (high to low-voltage, low to high-voltage, or bi-directional). The NVT2003DP, NVT2004TL and NVT2006PW devices allow translations between any voltages from 1.0 V to 5.5 V.

製品詳細

対応製品

アナログとミックスド・シグナル

電圧レベル変換器

  • NVT2003_06: Bidirectional Voltage Level Translator for Open-Drain and Push-Pull Applications

Features

Key Features

  • Simple to evaluate each NVT device without additional components
  • Easy to apply high-voltage VREFB/GND and Bn signals on right-hand side header
  • Easy to apply low-voltage VREFA/GND and An signals on left-hand side header

Connectivity

  • All Bn I/O pins on high-voltage right-hand side always have 10 kΩ pull up resistors to VREFB
  • All An I/O pins on low-voltage left-hand side with jumper option have 10 kΩ pull up resistors to VREFA
  • Jumper J1 (3 pins) to control NVT device enable (pin 2-3 on) or disable (pin 1-2 on)

購入オプション

OM13323-Image

クリックして展開

  • OM13323
    アクティブ

  • NVT2006PW Demo Board.

  • JP¥ 3,590
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
