PCF85263A I²C-Bus Evaluation Board

OM13510 アクティブ

画像にカーソルを合わせると拡大表示されます。

The OM13510 is the ideal evaluation and demo board of the PCF85263A. It can be used in the design phase of any project. Just the supplies and the bus must be connected.

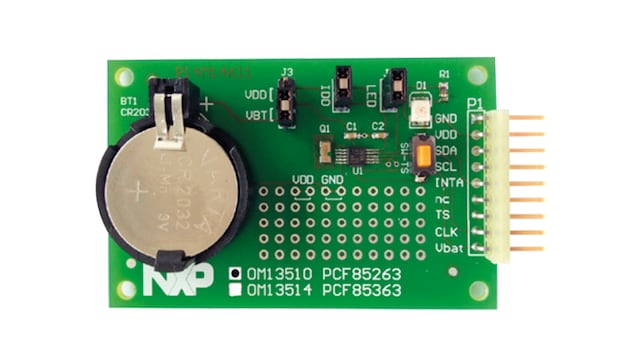

On the OM13510 the I²C RTC PCF85263ATL is mounted together with a quartz crystal, a lithium battery plus the blocking capacitor, buffering the supply voltage. A push button allows activating the time stamp. All signals are accessible on a line of pins, overcoming the difficulties to contact the tiny package directly.

Related demoboard: OM13518

製品詳細

対応製品

アナログとミックスド・シグナル

リアルタイム・クロック

  • PCF85263A: Tiny Real-Time Clock/Calendar with Alarm Function, Battery Switch-Over, Time Stamp Input and I²C-Bus

Features

Key Features

  • Straight forward evaluation of the new tiny RTC PCF85263 with:
    • Battery back-up
    • 2 alarm facilities with 2 configurable interrupt outputs
    • Timestamp
    • Tracking time or stopwatch, with 1/100 s resolution

Connectivity

  • Easy access to all pins despite of the tiny package:
    • Connector P2 100 mil (2.54 mm) pin pitch
    • Access to all pins
  • Interfacing with the Fm+ development board OM13320:
    • Connector P1

Power Management

  • Battery on board for autonomous operation
    • Can be switched off
  • Easy measurements of power consumption
    • Jumper J2 yo open to link in μA-meter

Components

  • Push bottom to trigger timestamp

購入オプション

OM13510-Image

クリックして展開

  • OM13510
    アクティブ

  • PCF85263A I2C-bus evaluation board.

  • $62.50 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
代理店からの注文
