Circular Pump Inverter Reference Design

CIRCULAR-PUMP-INVERTER-RD

画像にカーソルを合わせると拡大表示されます。

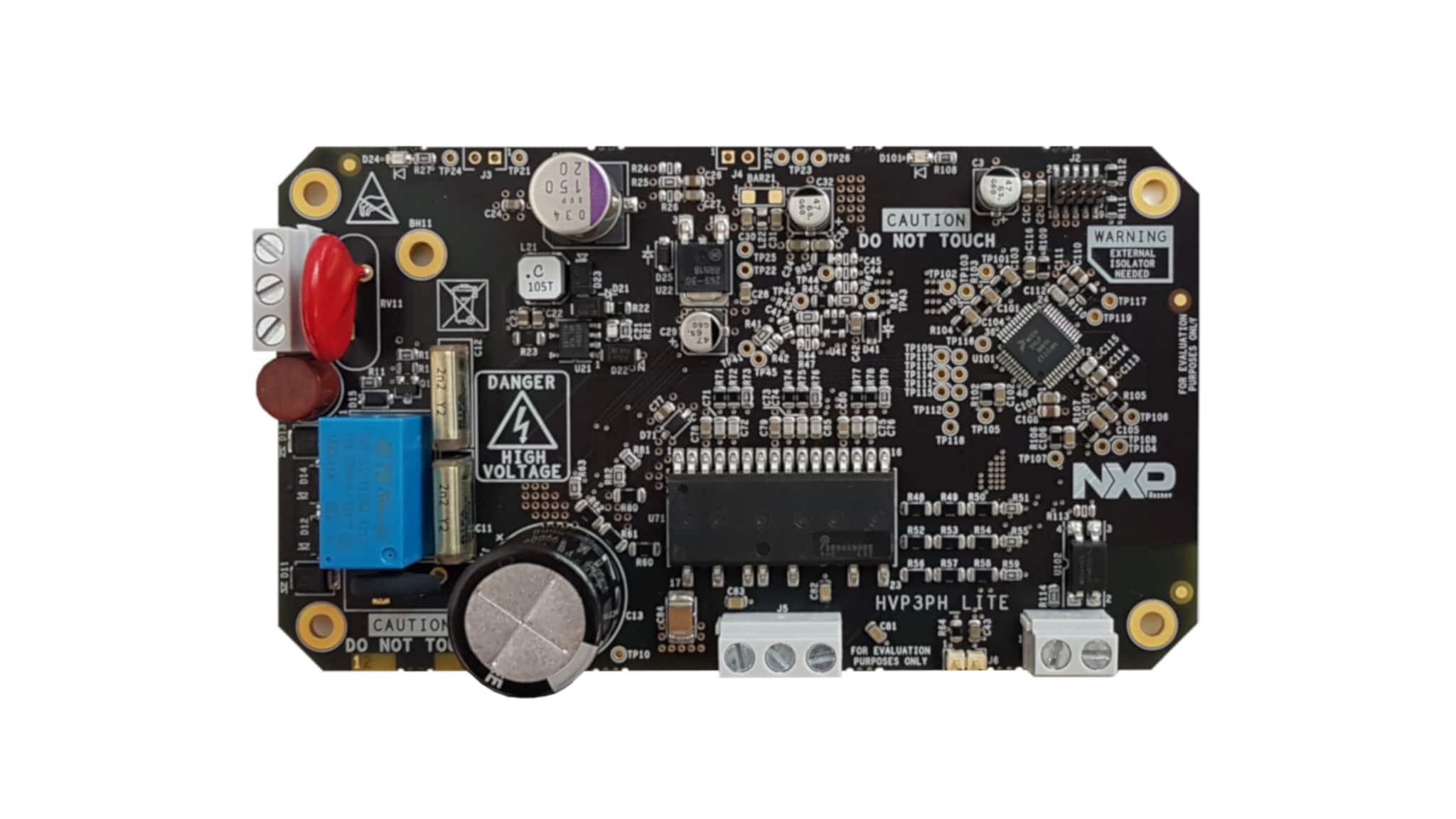

This reference design introduces PMSM safety motor control SW optimized for dedicated HW HVP-MC3PH-LITE equipped with Kinetis V series MCU. The aim of the reference design is help customers to develop motor control solutions with safety features intended for controlled heating systems, electric circulation pumps, service water installation and other devices used in industrial applications. Reference design HW is targeted to circular pump application sector but could be reused for general 3-phase motor control applications up to 60 W with AC supply 110 V to 230 V. Reference design HW utilizes NXP cost optimized MCU MKV10Z32 with core M0+ and NXP high-voltage DC-DC converter TEA1721. There is also implemented integrated power module, inrush circuit and single shunt current sensing. In reference design SW there is implemented sensorless PMSM control with IEC60730/IEC60335 Class B appliance safety including MCU core, memory and peripheral tests, program flow check and additional safety-related features. Customers could reuse design reference manuals, schematics, firmware and manufacturing files to speed up product design.

ブロック図

Circular Pump Inverter Block Diagram

Circular Pump Inverter Block Diagram
図を取得する PDF

対応製品

プロセッサ＆マイクロコントローラ

KVシリーズArm Cortex-M4/M0+/M7

  • KV1x: Kinetis® KV1x-75 MHz,  Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M0+

パワーマネージメント

電源スイッチ内蔵AC-DCコントローラ

  • TEA1721AT: HV Start-Up Flyback Controller with Integrated MOSFET for 5 W Applications, F~burst = 430 Hz

Features

Cost Optimized Inverter Design

  • Single shunt current sensing
  • Default solution without opamp
  • Cost optimized NXP MCU and DC-DC converter
  • Integrated inverter IC
  • Inrush circuit

High Efficient Motor Control

  • Space vector modulation
  • DC-bus ripple elimination
  • Dead-time compensation
  • Current measurement calibration
  • Stator resistance estimation
  • Sensorless FOC

Diagnostics and Class B Safety

  • MCU core, memory, and peripheral self-tests using NXP’s certified safety library
  • Detection mechanisms for following hazard conditions:
    • Blocked rotor
    • Disconnected motor phase
    • Rotor overload
    • Medium over-temperature
    • Inverter over-temperature
    • Under-/over-voltage
    • Under-/over-power
