IMX-LVDS-HDMI
アクティブ -
LVDS to HDMI adaptor card (mini SAS).
Kit contains:
- 1 x IMX-LVDS-HDMI board
- 1 x MINI-SAS cable
コンパクトリスト

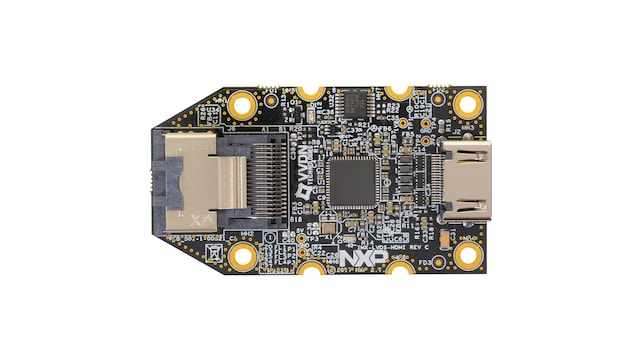

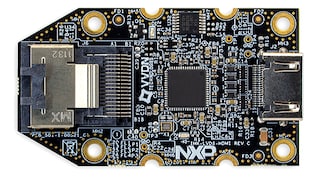

IMX-LVDS-HDMI Adaptor Card
The IMX-LVDS-HDMI is a LVDS to HDMI adaptor card, which recevies 4-lane LVDS input from a MINI-SAS connector and converts it to HDMI signals and output to a standard type-A HDMI connector. It can be connected to any mother board with a LVDS MINI-SAS connector to conveniently validate LVDS function with a common HDMI display panel.
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
i.MX 9プロセッサ
- i.MX93: i.MX 93アプリケーション・プロセッサ・ファミリ – Arm® Cortex®-A55、MLアクセラレーション、電力効率に優れたMPU
Features
IMX-LVDS-HDMI board
- MINI-SAS connector on LVDS side
- Standard type-A connector on HDMI side
Conversion IC
- 4-lane LVDS receiver supporting up to 150 MHz clock rate
- HDMI output video resolution up to 1080p at 60 Hz
