SLN-VIZNLC-IOT
アクティブ -
NXP EdgeReady MCU-Based Solution for Face Recognition with Liveness Detection.

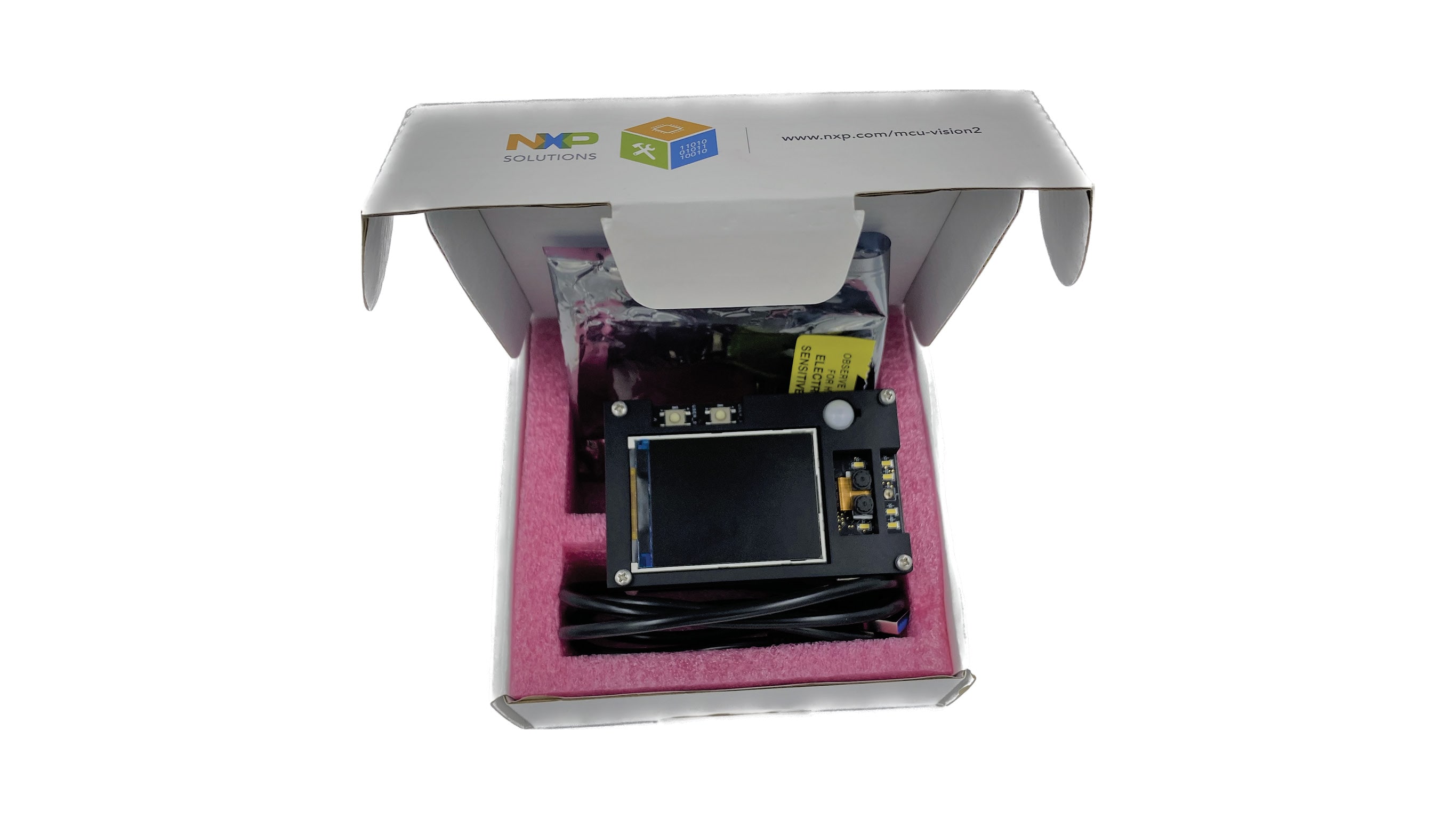

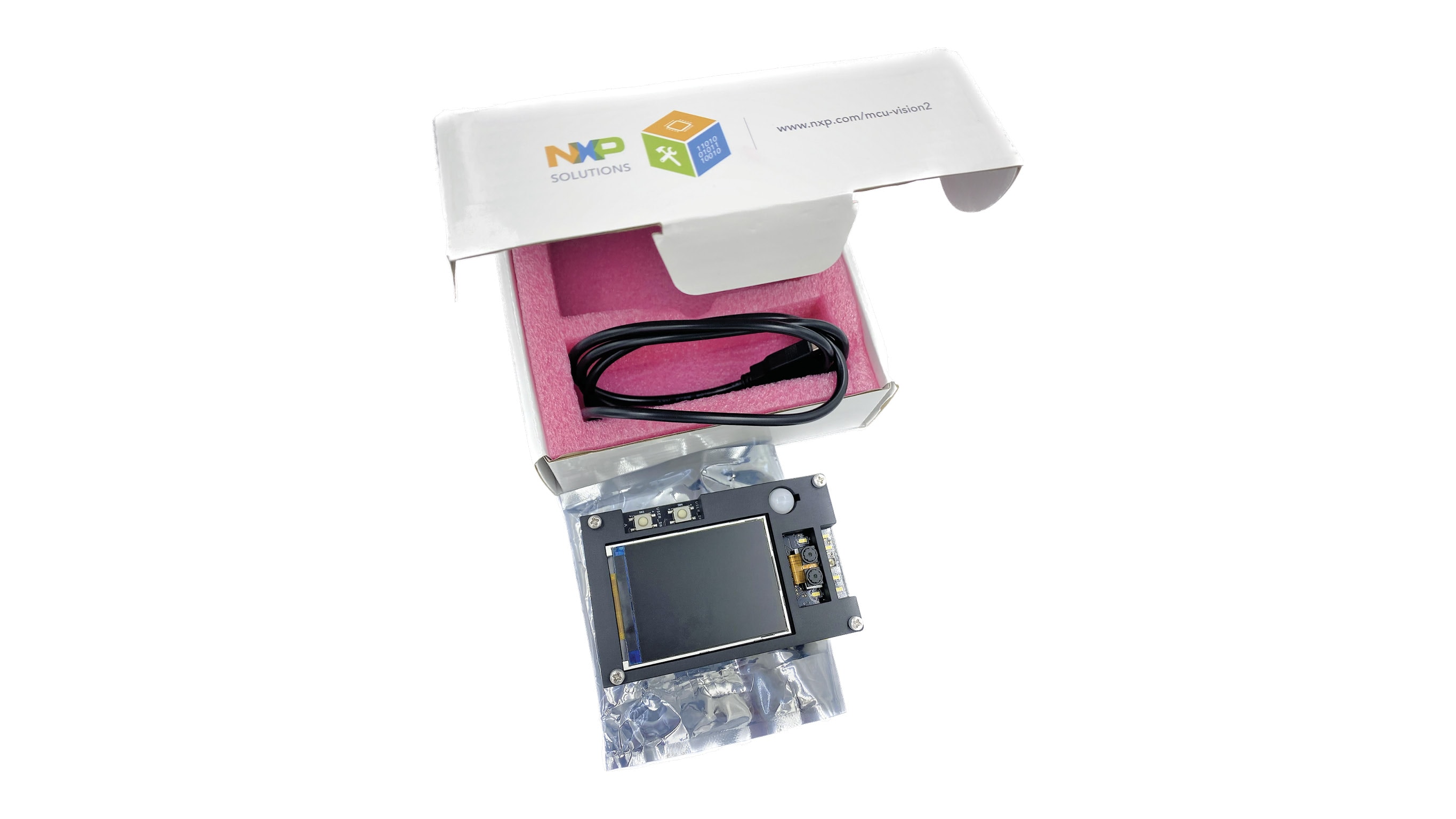

Kit Contains
- i.MX RT106F secure face recognition solution development kit
- USB Type-C Cable
コンパクトリスト
NXP EdgeReady MCU-Based Solution for Face Recognition with Liveness Detection
NXP’s EdgeReady MCU-based solution for face recognition leverages the i.MX RT106F crossover MCU, enabling developers to quickly and easily add face recognition with liveness detection to their products. Liveness detection prevents spoofing with a photograph and is implemented with low cost IR and RGB cameras. The development kit for this solution, SLN-VIZNLC-IOT, comes with fully integrated turnkey software, for quick out-of-the-box operation, minimizing time to market, risk and development effort. Face recognition is done entirely at the edge, addressing the privacy concerns of many consumers. This NXP EdgeReady solution is part of the EdgeVerse™ edge computing platform.
製品詳細
ブロック図
対応製品
プロセッサ＆マイクロコントローラ
i.MX RTクロスオーバーMCU
- i.MX-RT1060: i.MX RT1060：Arm® Cortex®-M7搭載クロスオーバーMCU
ワイヤレス・コネクティビティ
Multiprotocol MCUs
- K32W061_41: K32W061/41: High-Performance, Secure and Ultra-Low-Power MCU for Zigbee®,Thread™, and Bluetooth® LE 5.0 with Built-In NFC Option
Features
MCU
- MIMXRT106FDVL6A/B Crossover MCU
- LPC845M301JBD48E (Low Power)
Memory
- 1 MB integrated SRAM
- 16 MB QSPI Flash
- 16 MB SDRAM
Cameras and Display
- Camera Module with GalaxyCore GC0308 Image Sensors (Parallel CSI Interface and RGB or IR Pass Filter)
- LCD Display with Rocktech RK024HH298 (LCDIF Interface)
Connectivity
- NXP K32W061 BLE MCU and Integrated PCB Antenna on Board
- Optional Murata 1XK M.2 Wi-Fi Module
Software and Support
- MCUXpresso SDK with FreeRTOS support
- MCUXpresso IDE
- MCUXpresso Config Tools
- VIZNLC SDK including NXP OASIS Lite Machine Learning Vision Engine
購入オプション
ドキュメント
クイック・リファレンス ドキュメンテーションの種類.
5 ドキュメント
アプリケーション・ノート (1)
ユーザ・ガイド (4)
-
SLN-VIZNLC-IOT Hardware Design Guide[SLN-VIZNLC-IOT-HDG]
-
SLN-VIZNLC-IOT Software Developer Guide[SLN-VIZNLC-IOT-SDG]
-
SLN-VIZNLC-IOT User Guide[SLN-VIZNLC-IOT-UG]
-
SLN-VIZNLC-IOT Getting Started Guide[SLN-VIZNLC-IOT-GSG]
5 ドキュメント
コンパクトリスト
アプリケーション・ノート (1)
ユーザ・ガイド (4)
-
SLN-VIZNLC-IOT Hardware Design Guide[SLN-VIZNLC-IOT-HDG]
-
SLN-VIZNLC-IOT Software Developer Guide[SLN-VIZNLC-IOT-SDG]
-
SLN-VIZNLC-IOT User Guide[SLN-VIZNLC-IOT-UG]
-
SLN-VIZNLC-IOT Getting Started Guide[SLN-VIZNLC-IOT-GSG]
設計・リソース
デザイン・ファイル
クイック・リファレンス
設計・ファイルの種類.
3 設計・ファイル
-
プリント基板と回路図
SLN-VIZNLC-IOT Manufacturer BOM Report
-
プリント基板と回路図
SLN-VIZNLC-IOT Schematics
-
プリント基板と回路図
SLN-VIZNLC-IOT Layout Files
