SOT1852-1: SENSOR6F

概要

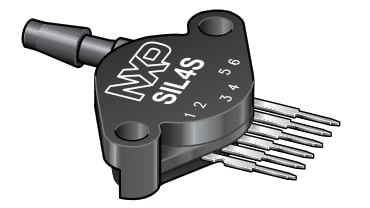

SENSOR6F, sensor package; 6 terminals; 2.54 mm pitch; 17.78 mm x 29.47 mm x 8.01 mm body

パッケージバージョン	パッケージ名	マウント	端子位置	パッケージスタイル	外形寸法図	端子数	材料
SOT1852-1	SENSOR6F	through-hole mount	double		17.78 x 29.47 x 8.01	6

メーカーコード	参照コード	Issue Date
98ASB42796B	E-PSXB-F6(JEDEC	2017-06-11

製品

パーツ	説明	Quick access
MPX5700GP1	Pressure Sensor, 5V, 0/700kPa, Sensor 6, Port	View parametrics
MPX4250AP	Pressure Sensor, 5.1V, 0/250kPa, Sensor 6, Port	View parametrics
MPX5700AP	Pressure Sensor, 5V, 15/700kPa, Sensor 6, Port	View parametrics
MPX5050GP	Pressure Sensor, 5V, 0/50kPa, Sensor 6, Port	View parametrics
MPX5100AP	Pressure Sensor, 5V, 0/100kPa, Sensor 6, Port	View parametrics
MPX5700GP	Pressure Sensor, 5V, 0/700kPa, Sensor 6, Port	View parametrics
MPX5050GP1	Pressure Sensor, 5V, 0/50kPa, Sensor 6, Port	View parametrics
MPX4115AP	Pressure Sensor, 5.1V, 15/115kPa, Sensor 6	View parametrics
MPX5100GP	Pressure Sensor, 5V, 0/100kPa, Sensor 6, Port	View parametrics
MPX5010GP	Pressure Sensor, 5V, 0/10kPa, Sensor 6, Port	View parametrics
MPX4100AP	UNIBODY COMPENSATED	View parametrics
