2.4/5 GHz Dual-Band 1x1 Wi-Fi® 5 (802.11ac) + Bluetooth® 5.4 + 802.15.4 Tri-radio Solution
The IW512 is a highly integrated 2.4/5 GHz dual-band 1x1 Wi-Fi 5, Bluetooth/Bluetooth Low Energy 5.4 and 802.15.4 tri-radio single-chip solution optimized for a broad array of IoT applications in smart home, smart devices and accessories, smart appliances, smart energy, industrial automation, gateways and many more. This high degree of integration contributes to very low system costs and a minimum external BOM while achieving efficient coexistence between all internal radios as well as external radios, such as LTE.
IW512 includes a full-feature Wi-Fi subsystem powered by NXP’s 802.11ac (Wi-Fi 5) technology bringing higher throughput over previous generation Wi-Fi standards. The Wi-Fi subsystem integrates a Wi-Fi MAC, baseband and direct-conversion radio with integrated PA, LNA and transmit/receive switch removing the need for an RF front-end module (FEM) saving cost and reducing system complexity.
In addition to a Wi-Fi 5 radio, the IW512 integrates an independent Bluetooth 5.4 and 802.15.4 subsystem that supports Thread mesh networks. The device features Bluetooth Profiles such as hands free (HFP), advanced audio distribution profile (A2DP) for audio streaming as well as additional profiles like dual wideband speech (WBS). For Bluetooth Low Energy, the IW512 enables 2 Mbit/s high-speed data rate, long range, and extended adverstising. Finally, LE Audio is supported using Isochronous channels for a better overall audio experience.
The IW512 integrates dedicated CPUs and memories for both the Wi-Fi and Bluetooth/802.15.4 subsystems, which enable real time, independent protocol processing. Interfaces for connecting the IW512 to external host processors include SDIO 3.0 for Wi- Fi, UART for Bluetooth and SPI for 802.15.4.
製品詳細

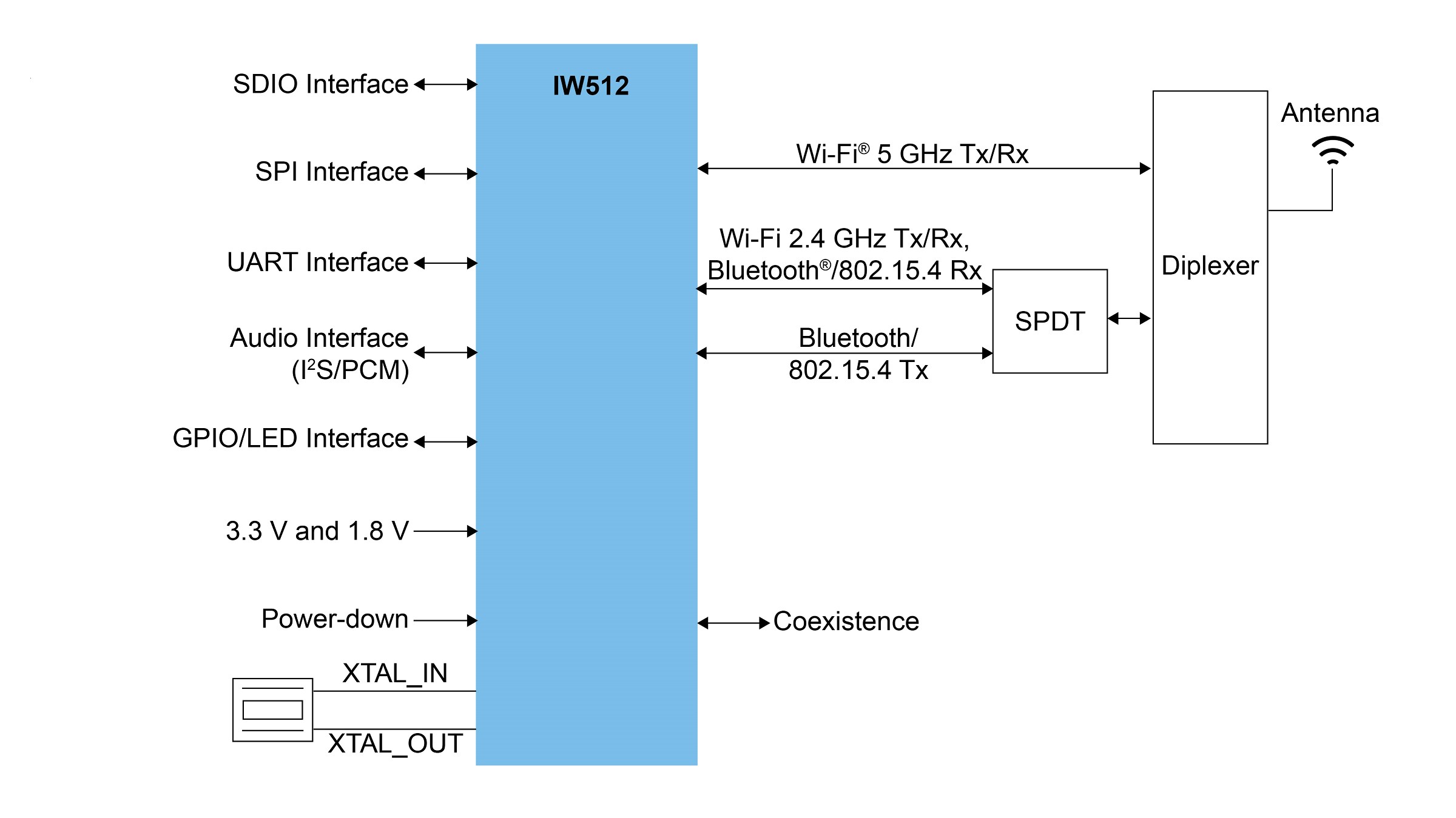

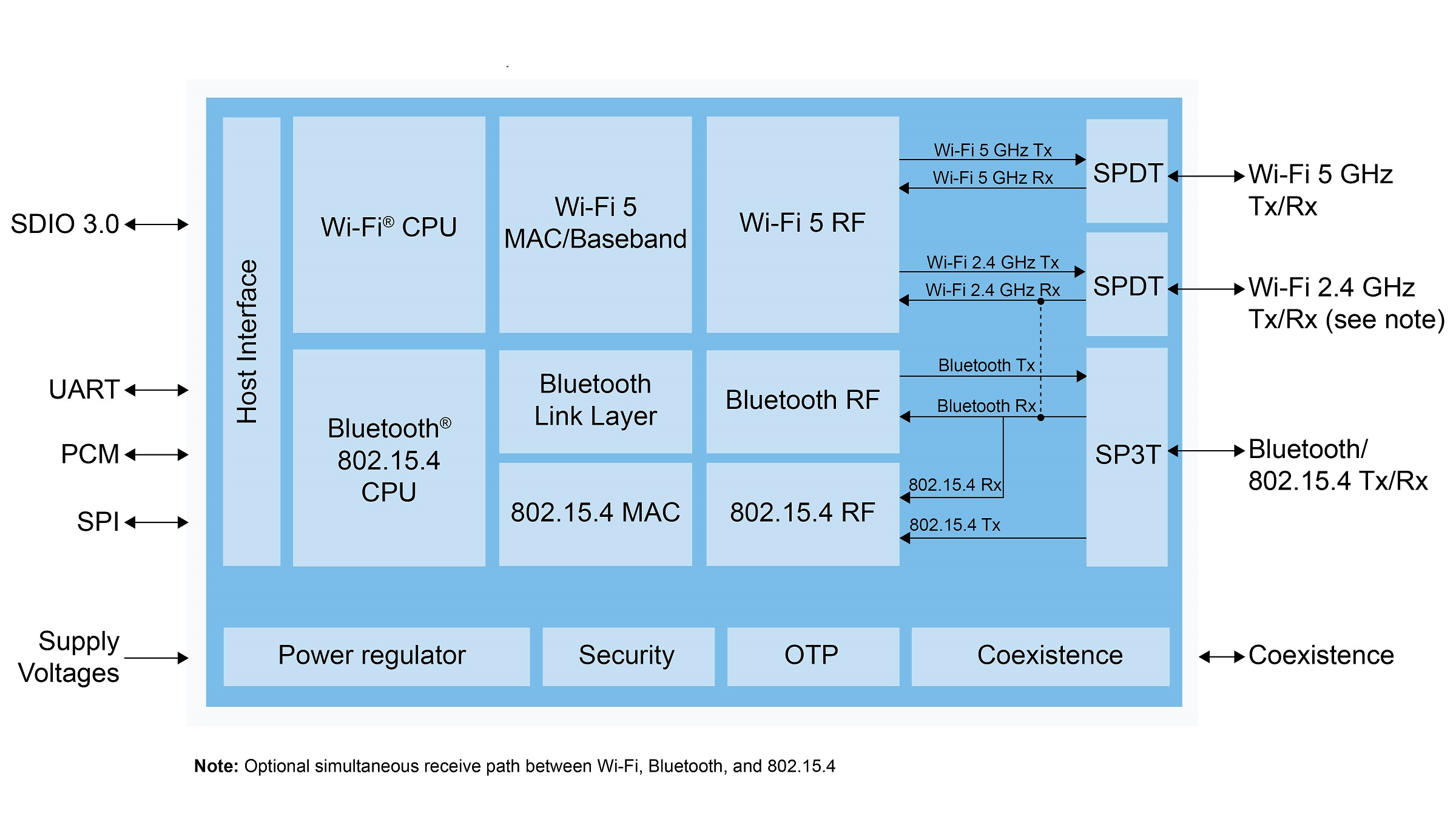

ブロック図
図を選択する。:
Features
Wi-Fi Key Features
- IEEE 802.11a/b/g/n/ac 1x1 SISO 2.4 GHz and 5 GHz, up to 80 MHz channel bandwidth
- 802.11az accurate ranging
- Integrated PA, LNA and T/R switches
- WPA3 security with hardware encryption engines
- SDIO 3.0 host interface
Bluetooth Key Features
- Supports Bluetooth 5.2 features
- Bluetooth 5.4 certified
- Integrated high power PA up to +20 dBm transmit power
- Full featured Bluetooth baseband
- Bluetooth LE 2 Mbit/s, Long Range and Advertising Extensions
- LE Audio with Isochronous channels
- AES hardware encryption
- UART host interface
802.15.4 Key Features
- IEEE 802.15.4-2015 compliant supporting Thread in 2.4 GHz band
- Integrated high power PA up to + 20 dBm transmit power
- Shared transmitter and antenna pin with Bluetooth
- Simultaneous receive with Bluetooth
- SPI host interface
General Features
- Dedicated, independent CPUs and memories for Wi-Fi and Bluetooth
- Efficient power management system supporting deep-sleep low-power mode

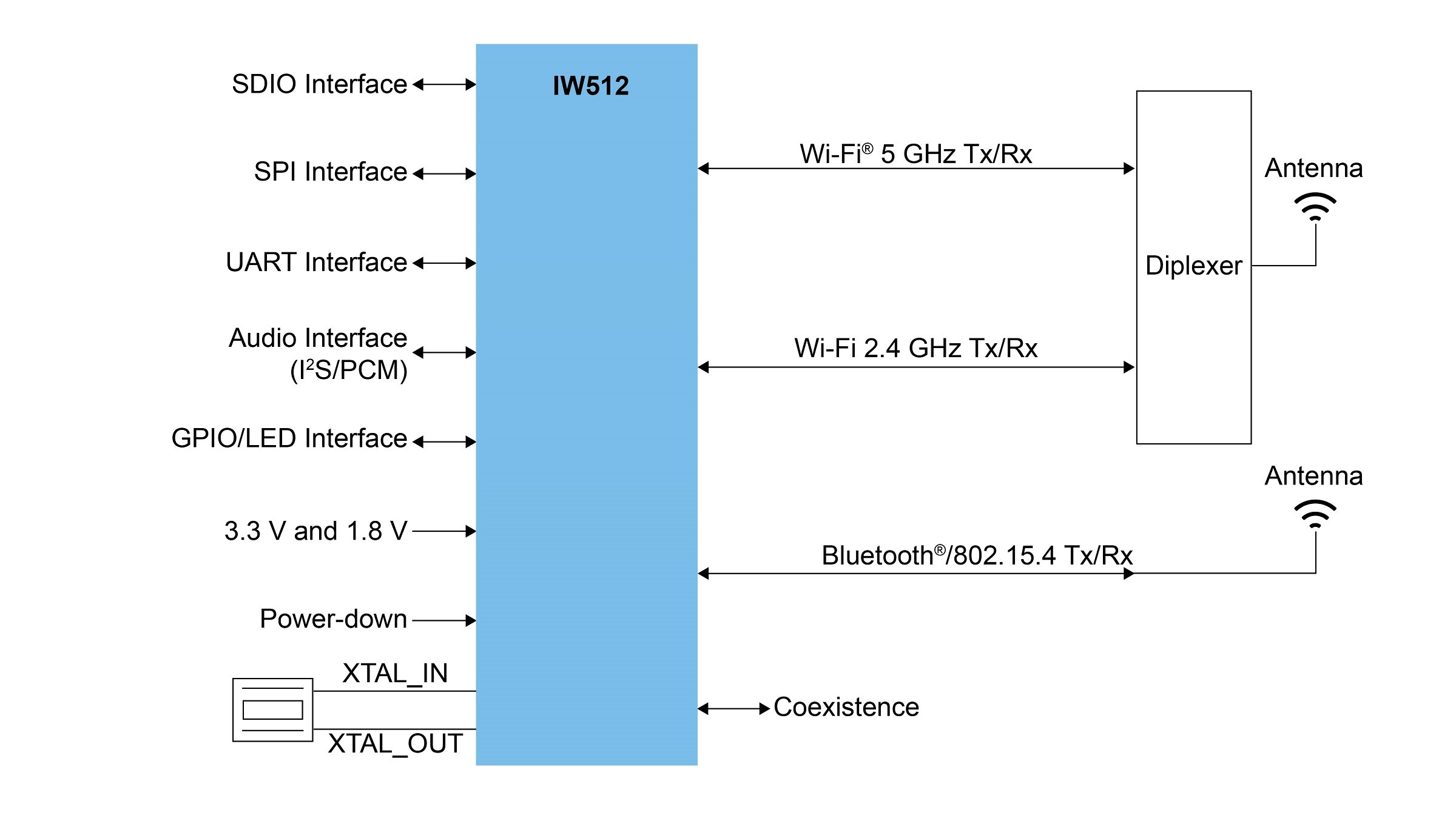

- Single and dual antenna configurations
