DEMO9S08AC60E
アクティブ -
DEMO BOARD FOR THE 9S08A.
コンパクトリスト

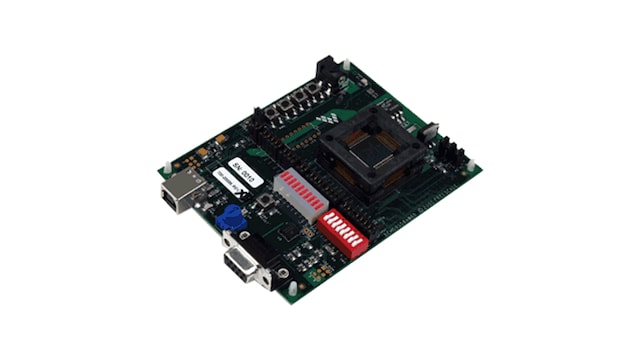

S08AC Demonstration Board
The DEMO9S08AC60 is a demonstration board for the NXP® S08AC MCU family..
- Development of application code is quick and easy with the integrated USB-to-BDM interface, CodeWarrior® Development Studio and software examples
- A 40-pin connector allows connecting the DEMO9S08AC60 board to an expanded evaluation environment
- Other features like the 10 LED, 8 DIP switches, NXP XYZ-axis low g acceleration sensor, and ZIF socket set makes it an ideal design platform for the S08AC MCUs
製品詳細
対応製品
プロセッサ＆マイクロコントローラ
8ビットS08 MCU
- S08AC: 8-bit Flexis® AC128/96/60/48/32 MCUs
Features
Microcontroller
- MC9S08AC60 MCU
Connectivity
- On-board RS-232 serial port
- All I/O pins can be disconnected from demo board for alternate use
- Power and communication through the integrated USB-BDM cable
- Socketed 64-pin QFP package
Power Management
- External power jack for optional DC power supply (+7 to +12 VDC)
Sensors
- NXP® MMA6260Q Accelerometer
Size
- 4.5" x 3.5" board size
Expansion Port
- 40-Pin expansion connector
User Components
- Potentiometer connected to the ADC
- On-board visible light sensor
- Main reset switch
- Eight port rocker switch connected to I/O port
- Ten LED light bar with 8 connected to I/O port (2 user assignable)
- Four push-button user switches
