8-bit Flexis® AC128/96/60/48/32 MCUs

S08AC
アクティブ

The AC family, comprised of pin-compatible 8-bit and 32-bit device duos, is the third family in the Flexis® series. The Flexis series of controllers is the connection point on Our Controller Continuum [English], where 8- and 32-bit compatibility becomes reality.

The S08AC128/96/60/48/32 pushes the boundaries of the 8-bit architecture performance with 128 KB of flash, three timer/pulse-width modulators (PWM), 16-channel, 10-bit analog-to-digital converter (ADC) and up to 20 MHz in bus frequency. The 8-bit S08AC128/96/60/48/32 are pin-, peripheral- and tool-compatible with the 32-bit MCF51AC256/128 devices. They share a common set of peripherals and development tools to deliver the ultimate in migration flexibility.

ブロック図

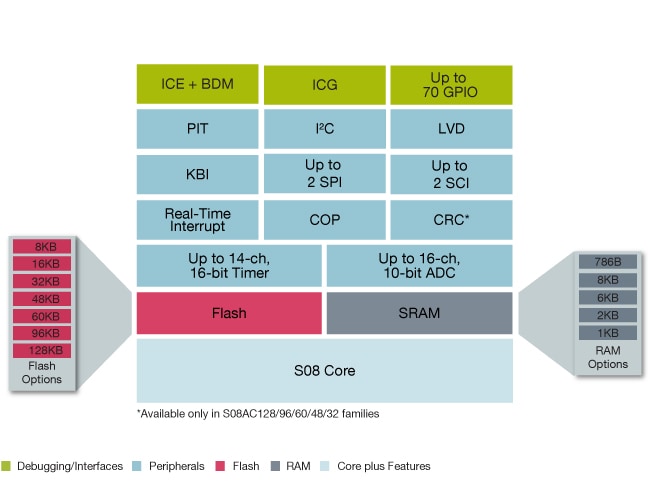

NXP S08AC Microcontroller Block Diagram

Freescale S08AC Microcontroller Block Diagram
図を取得する PDF

Features

Internal Clock Generator

  • Programmable frequency-locked loop(FLL) generates 8 MHz to 40 MHz
  • Provides multiple options for internal and external clock source and in-application clock switching
  • Trimmable with temperature and voltage compensation

10-bit Analog-to-Digital Converter

  • 10-bit Analog-to-Digital Converter
  • 2.5µs, 10-bit single conversion time

Timer with Ten Programmable Channels

  • Two 2-channes 16-bit timer systems
  • One 6-channel 16-bit timer systems
  • Programmable for input, capture, output compare or buffered pulse-width modulator (PWM)
    • PWM can be edge or center aligned

Extensive Serial Communications

  • Dual asynchronous SCIs
    • Flexible 13-bit module-based baud rate generators
    • LIN compatible
  • Inter-integrated circuit (I²C)
    • Up to 100 Kbps
    • Supports broadcasting mode and 10-bit addressing
  • Synchronous SPI
    • Multi-leader operation

System Protection

  • Selectable low-voltage detect/reset
  • COP watchdog timer
    • Option to run COP off independent clock source or bus
  • Cyclic redundancy check (CRC)

Input/Output

  • Up to 56 GPIO pins
    • Programmable pull-ups
    • High-current drivers
    • Controlled rise/fall times minimize noise

On-Chip Debug Interface

  • Single-wire background debug mode
  • Non-intrusive emulation
  • On-chip in-circuit emulator (ICE) debug module containing two comparators and nine trigger modes
  • View and change internal registers and memory while running an application
