32ビット車載用マイクロコントローラ

MAC7121 新規採用非推奨
  • このページでは、新規設計を推奨しない製品に関する情報を掲載しています。

MAC7121は、32ビット・フラッシュ・メモリをベースとするピン互換デバイス・ファミリの製品で、車載用組込みアプリケーション専用に開発されています。従来のボディ、シャーシ、セーフティ・アプリケーションが多くの16ビット製品のパフォーマンス範囲を超えている中で、コスト効率に優れた32ビットでのパフォーマンス向上に対する需要の高まりに対応しています。

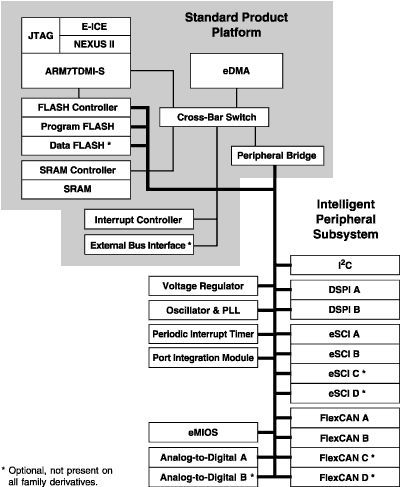

ブロック図

MAC7100ファミリr2

図を取得する PDF

特長

  • 32ビットArm7TDMI-S™ RISCコア、最大50 MHzの動作周波数
  • チャネル・マルチプレクサを搭載した拡張DMA
  • 512 Kバイトのプログラム・フラッシュEEPROM
  • 32 Kバイトのデータ・フラッシュEEPROM
  • 32 KバイトのRAM
  • 16チャネル、10ビットADコンバータ (ADC)
  • 16チャネル拡張モジュール型I/Oタイマ・サブシステム
  • 拡張シリアル通信インターフェース x 4
  • CAN 2.0ソフトウェア互換インターフェース x 4
  • シリアル・ペリフェラル・インターフェース (SPI) x 2
  • I²Cバス・インターフェース x 1
  • 10チャネル、24ビット周期割込みタイマ
  • ペリフェラルと共有の85本の汎用入出力ポート・ピン（オプションのウェイクアップ割込み機能と3.3 V～5 Vの入力およびドライブ機能を搭載）
  • 柔軟性の高い割込みコントローラ
  • JTAGテスト・アクセス・ポート (TAP) および組込みICEデバッグ・インターフェース（Nexusクラス2 Plusインターフェースを介したリアルタイムの命令トレースをサポート）
  • フェーズ・ロック・ループによるクロック周波数乗算を駆動する、選択可能な標準または低消費電力ピアス発振器を備えたオンチップ・クロック生成
  • オンチップのデュアル2.5 Vリニア電圧レギュレータ
  • 112ピンLQFPパッケージ
