H-Bridge Motor Driver, 5-28 V, 5 A, 11 kHz

MC33932 アクティブ

画像にカーソルを合わせると拡大表示されます。

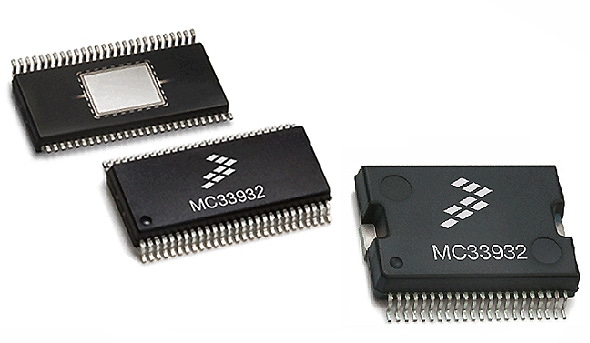

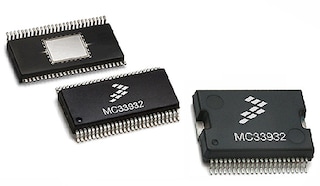

The NXP® MC33932 has two independent monolithic H-Bridge power ICs in a robust thermally enhanced package.

  • Designed primarily for automotive electronic throttle control, but are applicable to any low-voltage DC servo motor control application within the current and voltage limits stated in this specification
  • Each H-bridge in the MC33932 is able to control inductive loads with currents up to 5.0 A peak
  • RMS current capability is subject to the degree of heatsinking provided to the device package
  • Internal peak-current limiting (regulation) is activated at load currents above 6.5 A ± 1.5 A.
  • Output loads can be pulse width modulated at frequencies up to 11 kHz
  • Processor Expert® component for medium voltage H-Bridge products enables rapid embedded application development.

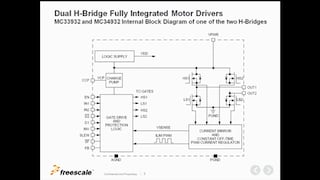

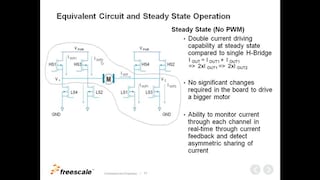

View internal diagram

ブロック図

MC33932 Simplified Application Drawing

MC33932 Simplified Application Drawing
図を取得する PDF

Features

Key Features

  • 8.0 V to 28 V continuous operation (transient operation from 5.0 V to 40 V)
  • 235mΩ maximum RDS(ON) @ 150°C (each H-Bridge MOSFET)
  • 3.0 V and 5.0 V TTL / CMOS logic compatible inputs
  • Over-current limiting (regulation) via internal constant-off-time PWM
  • Output short-circuit protection (short to VPWR or GND)
  • Temperature-dependant current-limit threshold reduction
  • All inputs have an internal source/sink to define the default (floating input) states
  • Sleep Mode with current draw < 50μ A (each half with inputs floating or set to match default logic states)

購入/パラメータ

2 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージタイプ

パッケージ端子数

標準価格

AEC-Q100 Temperature Range

安全保障機能安全

製品機能

Load Current (IL) [TYP] (A)

チャネル数

Drain-to-Source On Resistance (TYP) (Ohm) (RDS(ON))

Full-bridge RDS(on) (Typ) (Ohm)

負荷電源電圧（最小）（V）

負荷電源電圧（最大）（V）

電源電圧 [最小] (V)

電源電圧 [最大] (V)

インターフェースと入力制御

Ambient Operating Temperature (Min to Max) (℃)

MC33932EK
データ・シート

アクティブ

HSOP54

54

1K @ US$3.16

grade 1

No

dual H-bridge, powertrain control

5

4

0.12

0.24

8

28

5

40

Parallel / Parallel

-40 to 125

MC33932VW
データ・シート

置き換え部品: MC33HB2000AES

アクティブ

HSOP44

44

1K @ US$5.94

grade 1

No

dual H-bridge, powertrain control

5

4

0.12

0.24

8

28

5

40

Parallel / Parallel

-40 to 125
