Evaluation Kit - MC33932, Dual 5.0 A Throttle Control H-Bridge.
- KIT33932VWEVBE Hardware
- Quick Reference Guide

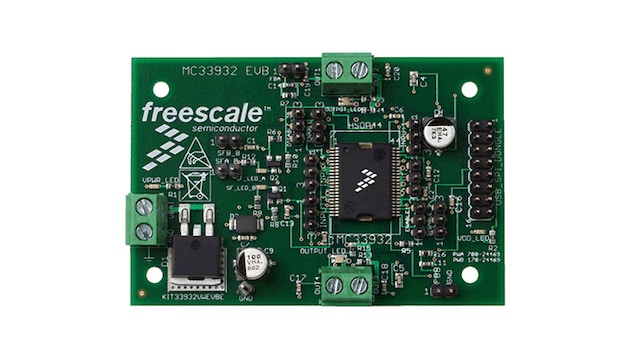

Evaluation Kit for 33932, Dual 5 A Throttle Control
The Evaluation Kit for the 33932, which is a monolithic H-Bridge Power IC in a robust thermally enhanced package. The 33932 has two independent monolithic H-Bridge Power ICs in the same package. They are designed primarily for automotive electronic throttle control, but are applicable to any low-voltage DC servo motor control application within the current and voltage limits stated in this specification.
Each H-bridge in the 33932 is able to control inductive loads with currents up to 5.0 A peak. RMS current capability is subject to the degree of heatsinking provided to the device package. Internal peak-current limiting (regulation) is activated at load currents above 6.5 A ±1.5 A. Output loads can be pulse width modulated (PWM-ed) at frequencies up to 11 kHz. A load current feedback feature provides a proportional (0.24% of the load current) current output suitable for monitoring by a microcontroller’s A/D input. A Status Flag output reports under-voltage, over-current, and over-temperature fault conditions.
This Evaluation kit may be used with the KITUSBSPIDGLEVME.
製品詳細
Features
Connectivity
- All inputs have an internal source/sink to define the default (floating input) states
Power Management
- 8.0 to 28 V continuous operation (transient operation from 5.0 to 40 V)
- 235 mO maximum RDS(ON) @ 150°C (each H-Bridge MOSFET)
- 3.0 V and 5.0 V TTL / CMOS logic compatible inputs
- Over-current limiting (regulation) via internal constant-off-time PWM
- Output short-circuit protection (short to VPWR or GND)
- Sleep mode with current draw < 50 µA (each H- Bridge)
- Temperature-dependant current-limit threshold reduction
