32-Bit Microcontrollers

MPC563
アクティブ
  • このページでは、新規設計を推奨しない製品に関する情報を掲載しています。

The MPC563 is a high-speed 32-bit control unit that combines high-performance data manipulation capabilities with powerful peripheral subsystems. This MCU is built up from standard modules that interface through a common intermodule bus (IMB).

ブロック図

MPC563

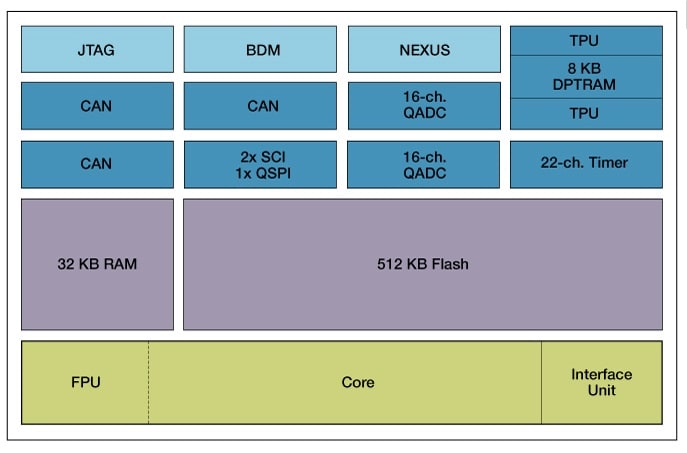

MPC563 Block Diagram
図を取得する PDF

Features

  • 512 KB of flash
  • Precise exception model
  • Floating point
  • Extensive system development support
  • On-chip watchpoints and breakpoints
  • Background debug mode (BDM)
  • IEEE®-ISTO 5001-1999 NEXUS class 3 debug interface
  • True 5-volt I/O
  • Two time processing units (TPU3) with 8 KB DPTRAM
  • 22-channel MIOS timer (MIOS14)
  • Two queued analog-to-digital converter modules (QADC64_A, QADC64_B) providing a total of 32 analog channels
  • Three TouCAN modules (TOUCAN_A, TOUCAN_B, TOUCAN_C)
  • One queued serial module with one queued SPI and two SCIs (QSMCM) 32 KB static RAM (CALRAM)

購入/パラメータ

1-10 の 12 結果

除外 12 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

パッケージタイプ

パッケージ端子数

標準価格

MPC563CVR40
データ・シート

生産終了 (EOL)

BGA388

388

10K @ US$66.94
MPC563CZP40
データ・シート

置き換え部品: MPC563CVR40

生産終了 (EOL)

BGA388

388

10K @ US$66.94
MPC563MVR56
データ・シート

生産終了 (EOL)

BGA388

388

10K @ US$73.64 - 10K @ US$74.08
MPC563MVR66
データ・シート

生産終了 (EOL)

BGA388

388

10K @ US$93.56
MPC563MZP56
データ・シート

置き換え部品: MPC563MVR56

生産終了 (EOL)

BGA388

388

10K @ US$58.22 - 10K @ US$74.08
MPC563MZP66
データ・シート

置き換え部品: MPC563MVR66

生産終了 (EOL)

BGA388

388

10K @ US$93.56
MPCZ563MZP56
データ・シート

生産終了 (EOL)

BGA388

388

—

MPCZ563MZP66
データ・シート

生産終了 (EOL)

BGA388

388

—

SC512856MZP40
データ・シート

生産終了 (EOL)

BGA388

388

—

SC512856MZP56
データ・シート

生産終了 (EOL)

BGA388

388

—

N true 0 PSPMPC563ja 95 アプリケーション・ノート Application Note t789 56 アプリケーション・ノート・ソフトウェア Application Note Software t783 17 エラッタ Errata t522 3 エンジニアリング・ブリテン Technical Notes t521 5 サポート情報 Supporting Information t531 3 データ・シート Data Sheet t520 1 ファクト・シート Fact Sheet t523 4 ユーザ・ガイド User Guide t792 2 リファレンス・マニュアル Reference Manual t877 3 製品概要 Product Brief t532 1 ja ja ja データ・シート Data Sheet 1 1 MPC561CVR40,MPC561CZP40,MPC561MVR56,MPC561MZP56,MPC563CVR40,MPC563CZP40,MPC563MVR56,MPC563MVR66,MPC563MZP56,MPC563MZP66,MPC564CZP40,MPC564CZP66,MPC564MZP56,MPCZ563MZP56,MPCZ563MZP66,SC512856MZP40,SC512856MZP56,SCC512857,SCCZ561DR2,SCCZ562C,SPC561MVR56D,SPC561MZP56D,SPC564E6MZP56,SPCZ561MVR56D,SPCZ562MZPDH56,SPCZ563MZP56C,SPCZ563MZP66C 1.2 English MPC561/MPC563 Reference Manual and Data Sheet&#13;&#10;(Additional Devices Supported: MPC562/MPC564). B994707374025 PSP 10.8 MB None None documents None B994707374025 /docs/en/data-sheet/MPC561RM.pdf 10830232 /docs/en/data-sheet/MPC561RM.pdf MPC561RM documents N 2001-07-09 MPC561/MPC563 Reference Manual and Data Sheet (Additional Devices Supported: MPC562/MPC564) /docs/en/data-sheet/MPC561RM.pdf /docs/en/data-sheet/MPC561RM.pdf Data Sheet N 980000996212993340 2022-12-07 pdf en Aug 11, 2005 980000996212993340 Data Sheet Y N MPC561/MPC563 Reference Manual and Data Sheet (Additional Devices Supported: MPC562/MPC564) リファレンス・マニュアル Reference Manual 3 2 3 English Programming Environments Manual for 32-Bit Implementations of the Power Architecture. E966578690432 PSP 6.1 MB Registration without Disclaimer None documents Extended E966578690432 /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf 6125455 /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf MPCFPE32B documents Y N 2016-10-31 Programming Environments Manual for 32-Bit Implementations of the Power Architecture /webapp/Download?colCode=MPCFPE32B&lang_cd=ja /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf Reference Manual N 500633505221135046 2022-12-07 pdf Y en Oct 17, 2005 500633505221135046 Reference Manual Y N Programming Environments Manual for 32-Bit Implementations of the Power Architecture 3 1 English B993922390761 PSP 2.6 MB Registration without Disclaimer None documents Extended B993922390761 /secured/assets/documents/en/reference-manual/RCPURM_ZIP.zip 2558365 /secured/assets/documents/en/reference-manual/RCPURM_ZIP.zip RCPURM_ZIP documents Y N 2016-10-31 MPC500 Family RCPU Reference Manual /webapp/Download?colCode=RCPURM_ZIP&lang_cd=ja /secured/assets/documents/en/reference-manual/RCPURM_ZIP.zip Reference Manual N 500633505221135046 2022-12-07 zip Y en Jun 28, 2001 500633505221135046 Reference Manual Y N MPC500 Family RCPU Reference Manual 4 1 English MPC500 Family RCPU Reference Manual K966578751824 PSP 8.2 MB Registration without Disclaimer None documents Extended K966578751824 /secured/assets/documents/en/reference-manual/RCPURM.pdf 8157679 /secured/assets/documents/en/reference-manual/RCPURM.pdf RCPURM documents Y N 2016-10-31 MPC500 Family RCPU Reference Manual /webapp/Download?colCode=RCPURM&lang_cd=ja /secured/assets/documents/en/reference-manual/RCPURM.pdf Reference Manual N 500633505221135046 2022-12-07 pdf Y en Jun 28, 2001 500633505221135046 Reference Manual Y N MPC500 Family RCPU Reference Manual アプリケーション・ノート Application Note 56 5 2 Chinese Describing injection currents in terms of the data sheet electrical specifications for normal recommended operating conditions and for error conditions that allow short-term violations of the recommended operating conditions as listed in the device absolute maximum injection current specifications. Also, describing what should be done to protect the MCU from any damage due to over-voltage conditions on the I/O pins. 1370470727458723387723zh PSP 358.1 KB None None documents None 1370470727458723387723 /docs/zh/application-note/AN4731.pdf 358140 /docs/zh/application-note/AN4731.pdf AN4731 documents N N 2016-10-31 AN4731: Understanding Injection Current on NXP Automotive Microcontrollers – Application Note /docs/zh/application-note/AN4731.pdf /docs/zh/application-note/AN4731.pdf Application Note N 645036621402383989 2023-10-31 zh Apr 8, 2022 645036621402383989 Application Note Y N AN4731: 理解恩智浦微处理器上的注入电流--应用笔记 2 English Describing injection currents in terms of the data sheet electrical specifications for normal recommended operating conditions and for error conditions that allow short-term violations of the recommended operating conditions as listed in the device absolute maximum injection current specifications. Also, describing what should be done to protect the MCU from any damage due to over-voltage conditions on the I/O pins. 1370470727458723387723 PSP 358.1 KB None None documents None 1370470727458723387723 /docs/en/application-note/AN4731.pdf 358140 /docs/en/application-note/AN4731.pdf AN4731 documents N N 2016-10-31 AN4731: Understanding Injection Current on NXP Automotive Microcontrollers – Application Note /docs/en/application-note/AN4731.pdf /docs/en/application-note/AN4731.pdf Application Note N 645036621402383989 2023-10-31 pdf N en Dec 27, 2017 645036621402383989 Application Note Y N AN4731: Understanding Injection Current on NXP Automotive Microcontrollers – Application Note 6 0 English Presenting information about Galvanically Isolated Circuit Board that provides electrical isolation between a development tool and an application. 1450347856433701644145 PSP 2.0 MB None None documents None 1450347856433701644145 /docs/en/application-note/AN5233.pdf 2000386 /docs/en/application-note/AN5233.pdf AN5233 documents N N 2021-07-21 AN5233: Isolator Board for In-Circuit Debugging and Programming tools – Application Note /docs/en/application-note/AN5233.pdf /docs/en/application-note/AN5233.pdf Application Note N 645036621402383989 2023-06-07 pdf N en Dec 16, 2015 645036621402383989 Application Note Y N AN5233: Isolator Board for In-Circuit Debugging and Programming tools – Application Note 7 0 English Showing how to develop a flash memory programming tool for the MPC56xx family of devices. Giving some details about the JTAG communication protocol, OnCE module, or the Nexus R/W access block. 1316629672453740598962 PSP 1.5 MB None None documents None 1316629672453740598962 /docs/en/application-note/AN4365.pdf 1527214 /docs/en/application-note/AN4365.pdf AN4365 documents N N 2021-07-21 AN4365: MPC56xx Flash Programming Through Nexus/JTAG – Application Note /docs/en/application-note/AN4365.pdf /docs/en/application-note/AN4365.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Sep 21, 2011 645036621402383989 Application Note Y N AN4365: MPC56xx Flash Programming Through Nexus/JTAG – Application Note 8 0 English Describing the required and optional features supported by each of the Nexus classes. Also, showing the support class for MPC5500 and MPC5600 devices. 1286944514912716522863 PSP 243.6 KB None None documents None 1286944514912716522863 /docs/en/application-note/AN4088.pdf 243582 /docs/en/application-note/AN4088.pdf AN4088 documents N N 2021-07-21 AN4088: MPC5500/MPC5600 Nexus Support Overview – Application Note /docs/en/application-note/AN4088.pdf /docs/en/application-note/AN4088.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 12, 2010 645036621402383989 Application Note Y N AN4088: MPC5500/MPC5600 Nexus Support Overview – Application Note 9 0 English AN3787SW.zip /docs/en/application-note-software/AN3787SW.zip /docs/en/application-note-software/AN3787SW.zip AN3787: The MPC55xx and MPC563x family of microcontrollers have a feature called censorship which is a secure way to prevent unauthorized access to the device. The key to this feature is a 32-bit word that is stored in the shadow block comprised of censorship and serial boot control information, each sixteen bits in length. This 32-bit censorship control word is read and interpreted by hardware as part of the boot process. 1229114630939724369514 PSP 151.3 KB None None documents None 1229114630939724369514 /docs/en/application-note/AN3787.pdf 151289 /docs/en/application-note/AN3787.pdf AN3787 documents N 2008-12-12 AN3787, Preventing Device Lockout via Censorship on MPC55xx and MPC563x Families - Application Notes /docs/en/application-note/AN3787.pdf /docs/en/application-note/AN3787.pdf Application Note N 645036621402383989 2022-12-07 pdf en Dec 12, 2008 645036621402383989 Application Note Y N AN3787, Preventing Device Lockout via Censorship on MPC55xx and MPC563x Families - Application Notes 10 1 English This application note provides the adaptation of the standard Dhrystone version 2.1 to the Freescdale MPC500 family. Dhrystone version 2.1 is a publicly-availible standard for benchmarking various CPUs.enter O1037912843618 PSP 435.5 KB None None documents None O1037912843618 /docs/en/application-note/AN2354.pdf 435455 /docs/en/application-note/AN2354.pdf AN2354 documents N 2002-11-21 Running the Dhrystone Benchmark for the MPC500 Family /docs/en/application-note/AN2354.pdf /docs/en/application-note/AN2354.pdf Application Note N 645036621402383989 2022-12-07 pdf en Aug 20, 2008 645036621402383989 Application Note N N Running the Dhrystone Benchmark for the MPC500 Family 11 0 English The MPC565 was the first publicly available microcontroller to feature a Nexus Interface. It allows debug capabilities and high speed acess to the core. The Nexus standard, as implemented on the MPC56x, is the Real-Time Embedded Application Development Interface (READI). The READI's new features are described here and apply to Rev D of the MPC565, Rev D of the MPC561, and Rev C of the MPC563. 1105459948652719983321 PSP 648.0 KB None None documents None 1105459948652719983321 /docs/en/application-note/AN2693.pdf 648030 /docs/en/application-note/AN2693.pdf AN2693 documents N 2005-01-11 New Features of the MPC56x READI Nexus Interface Module /docs/en/application-note/AN2693.pdf /docs/en/application-note/AN2693.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jan 11, 2005 645036621402383989 Application Note N N New Features of the MPC56x READI Nexus Interface Module 12 1 English AN2366SW.zip /docs/en/application-note-software/AN2366SW.zip /docs/en/application-note-software/AN2366SW.zip TECD 8.5x11 Looseleaf Document Template 10j0Fpp9 PSP 563.6 KB None None documents None 10j0Fpp9 /docs/en/application-note/AN2366.pdf 563555 /docs/en/application-note/AN2366.pdf AN2366 documents N 2003-01-09 Using the New Input Transition/Input Capture TPU Function (NITC) with the MPC500 Family /docs/en/application-note/AN2366.pdf /docs/en/application-note/AN2366.pdf Application Note N 645036621402383989 2022-12-07 pdf en Aug 11, 2004 645036621402383989 Application Note Y N Using the New Input Transition/Input Capture TPU Function (NITC) with the MPC500 Family 13 0 English This application note is intended to describe an environment that minimises the software development complexity for a dual controller application. 1074287955359701445555 PSP 570.0 KB None None documents None 1074287955359701445555 /docs/en/application-note/AN2668.pdf 569978 /docs/en/application-note/AN2668.pdf AN2668 documents N 2004-01-16 Dual Controller Software Development for MPC561/MPC563 EVB /docs/en/application-note/AN2668.pdf /docs/en/application-note/AN2668.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jan 16, 2004 645036621402383989 Application Note N N Dual Controller Software Development for MPC561/MPC563 EVB 14 0 English MPC500 family application note 1071856080203715025502 PSP 872.4 KB None None documents None 1071856080203715025502 /docs/en/application-note/AN2667.pdf 872424 /docs/en/application-note/AN2667.pdf AN2667 documents N 2003-12-19 Multi-Controller Hardware Development for the MPC5xx Family /docs/en/application-note/AN2667.pdf /docs/en/application-note/AN2667.pdf Application Note N 645036621402383989 2022-12-07 pdf en Dec 19, 2003 645036621402383989 Application Note N N Multi-Controller Hardware Development for the MPC5xx Family 15 0 English This application note explores some of the capabilities of the MPC500 family BDM interface software initialization requirements and part/revision identification. 1063227520590695095893 PSP 1.3 MB None None documents None 1063227520590695095893 /docs/en/application-note/AN2000.pdf 1292429 /docs/en/application-note/AN2000.pdf AN2000 documents N 2003-09-10 MPC500 Family Background Debug Mode /docs/en/application-note/AN2000.pdf /docs/en/application-note/AN2000.pdf Application Note N 645036621402383989 2022-12-07 pdf en Sep 10, 2003 645036621402383989 Application Note Y N MPC500 Family Background Debug Mode 16 0 English The DC Motor with Dead-Time Correction &#8211; XOR version (DCmDtXor) TPU function is a version of the DC Motor with Dead-Time Correction (DCmDt) function that uses two TPU channels to generate one PWM output channel. 1056985095806730274839 PSP 692.1 KB None None documents None 1056985095806730274839 /docs/en/application-note/AN2527.pdf 692147 /docs/en/application-note/AN2527.pdf AN2527 documents N 2003-06-30 DC Motor with Dead-Time Correction - XOR version TPU Function Set /docs/en/application-note/AN2527.pdf /docs/en/application-note/AN2527.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N DC Motor with Dead-Time Correction - XOR version TPU Function Set 17 0 English Standard Space Vector Modulation (svmStd) is a technique that is used to implement a straightforward method of switching motor windings in applications such as AC induction motor control and PMSM motor control. 1056985291136722953794 PSP 722.7 KB None None documents None 1056985291136722953794 /docs/en/application-note/AN2528.pdf 722715 /docs/en/application-note/AN2528.pdf AN2528 documents N 2003-06-30 Standard Space Vector Modulation TPU Function Set /docs/en/application-note/AN2528.pdf /docs/en/application-note/AN2528.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N Standard Space Vector Modulation TPU Function Set 18 0 English The Standard Space Vector Modulation with Dead-Time Correction&#8211;XOR version (svmStdDtXor) is a version of the SSVM with Dead-Time Correction (svmStdDt) function that uses two TPU channels to generate one PWM output channel. 1056985908666698876001 PSP 618.4 KB None None documents None 1056985908666698876001 /docs/en/application-note/AN2531.pdf 618400 /docs/en/application-note/AN2531.pdf AN2531 documents N 2003-06-30 Standard SVM with Dead-Time Correction - XOR version /docs/en/application-note/AN2531.pdf /docs/en/application-note/AN2531.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N Standard SVM with Dead-Time Correction - XOR version 19 0 English The 3-Phase Sine Wave Generator with Dead-Time Correction TPU function set (3SinDt) extends the functionality of the 3-Phase Sine Wave Generator TPU function set (3Sin) by the dead-time correction technique. 1056982656144740981651 PSP 694.8 KB None None documents None 1056982656144740981651 /docs/en/application-note/AN2517.pdf 694798 /docs/en/application-note/AN2517.pdf AN2517 documents N 2003-06-30 3-Phase Sine Wave Generator with Dead-Time Correction TPU Function Set /docs/en/application-note/AN2517.pdf /docs/en/application-note/AN2517.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N 3-Phase Sine Wave Generator with Dead-Time Correction TPU Function Set 20 0 English The 3-Phase Sine Wave Generator with Dead-Time Correction &#8211; XOR version (3SinDtXor) is a version of the 3-Phase Sine Wave Generator with Dead-Time Correction (3SinDt) function that uses two TPU channels to generate one PWM output channel. 1056983130522727025313 PSP 754.0 KB None None documents None 1056983130522727025313 /docs/en/application-note/AN2519.pdf 753985 /docs/en/application-note/AN2519.pdf AN2519 documents N 2003-06-30 3Sin with Dead-Time Correction - XOR version TPU Function Set /docs/en/application-note/AN2519.pdf /docs/en/application-note/AN2519.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N 3Sin with Dead-Time Correction - XOR version TPU Function Set 21 0 English The 3-Phase Sine Wave Generator &#8211; 3 outputs version (3Sin3) is a variant of the 3Sin function that, in contrast to 3Sin, generates only the top channel signal of each PWM pair. 1056982002061694326396 PSP 592.3 KB None None documents None 1056982002061694326396 /docs/en/application-note/AN2515.pdf 592256 /docs/en/application-note/AN2515.pdf AN2515 documents N 2003-06-30 3-Phase Sine Wave Generator - 3 outputs version TPU Function Set /docs/en/application-note/AN2515.pdf /docs/en/application-note/AN2515.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N 3-Phase Sine Wave Generator - 3 outputs version TPU Function Set 22 0 English BLDC Motor version I (BLDCm) TPU function drives a Brush less DC Motor by decoding the Hall sensor signals and generating 3-phase complementary-switched center-aligned PWM signals. 1056983310334711920298 PSP 860.6 KB None None documents None 1056983310334711920298 /docs/en/application-note/AN2520.pdf 860556 /docs/en/application-note/AN2520.pdf AN2520 documents N N 2016-10-31 BLDC Motor version I TPU Function Set /docs/en/application-note/AN2520.pdf /docs/en/application-note/AN2520.pdf Application Note N 645036621402383989 2022-12-07 pdf N en May 29, 2003 645036621402383989 Application Note Y N BLDC Motor version I TPU Function Set 23 0 English 1-phase Hall Sensor Decoder (1HD) TPU Function is useful for decoding information from a Hall sensor signal in a motion control system. 1056981342566715599952 PSP 328.5 KB None None documents None 1056981342566715599952 /docs/en/application-note/AN2512.pdf 328476 /docs/en/application-note/AN2512.pdf AN2512 documents N 2003-06-30 1-phase Hall Sensor Decoder TPU Function /docs/en/application-note/AN2512.pdf /docs/en/application-note/AN2512.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N 1-phase Hall Sensor Decoder TPU Function 24 0 English Standard Space Vector Modulation &#8211; 3 outputs version &#8211; XOR version (svmStd3Xor) is a version of the Standard Space Vector Modulation &#8211; 3 output version (svmStd3) function that uses two TPU channels to generate one PWM output channel. 1056986403108729270126 PSP 569.8 KB None None documents None 1056986403108729270126 /docs/en/application-note/AN2533.pdf 569834 /docs/en/application-note/AN2533.pdf AN2533 documents N 2003-06-30 Standard SVM - 3 outputs version - XOR version TPU Function Set /docs/en/application-note/AN2533.pdf /docs/en/application-note/AN2533.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N Standard SVM - 3 outputs version - XOR version TPU Function Set 25 0 English The DC Motor &#8211; XOR version (DCmXor) TPU function is a version of the DC Motor (DCm) function that uses two TPU channels to generate one PWM output channel. 1056984458818718570544 PSP 634.6 KB None None documents None 1056984458818718570544 /docs/en/application-note/AN2525.pdf 634639 /docs/en/application-note/AN2525.pdf AN2525 documents N 2003-06-30 DC Motor - XOR version TPU Function Set /docs/en/application-note/AN2525.pdf /docs/en/application-note/AN2525.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N DC Motor - XOR version TPU Function Set 26 0 English The DC Motor with Dead-Time Correction (DCmDt) TPU function set extends the functionality of the DC Motor TPU function set (DCm) by incorporating the dead-time correction technique. 1056984254982717305073 PSP 664.6 KB None None documents None 1056984254982717305073 /docs/en/application-note/AN2524.pdf 664575 /docs/en/application-note/AN2524.pdf AN2524 documents N 2003-06-30 DC Motor with Dead-Time Correction TPU Function Set /docs/en/application-note/AN2524.pdf /docs/en/application-note/AN2524.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N DC Motor with Dead-Time Correction TPU Function Set 27 0 English The DC Motor &#8211; 2 outputs version (DCm2) TPU function is a variant of the DCm function, which in unlike the DCm, generates only the top channel signal for each PWM pair. 1056984053354691980273 PSP 516.9 KB None None documents None 1056984053354691980273 /docs/en/application-note/AN2523.pdf 516877 /docs/en/application-note/AN2523.pdf AN2523 documents N 2003-06-30 DC Motor - 2 outputs version TPU Function Set /docs/en/application-note/AN2523.pdf /docs/en/application-note/AN2523.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N DC Motor - 2 outputs version TPU Function Set 28 0 English The 3-Phase Sine Wave Generator &#8211; XOR version (3SinXor) is a version of the 3-Phase Sine Wave Generator (3Sin) function that uses two TPU channels to generate one PWM output channel. 1056982295159695136945 PSP 649.4 KB None None documents None 1056982295159695136945 /docs/en/application-note/AN2516.pdf 649373 /docs/en/application-note/AN2516.pdf AN2516 documents N 2003-06-30 3-Phase Sine Wave Generator - XOR version TPU Function Set /docs/en/application-note/AN2516.pdf /docs/en/application-note/AN2516.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N 3-Phase Sine Wave Generator - XOR version TPU Function Set 29 0 English BLDC Motor version II (BLDC) is an alternative realization of the algorithm provided by BLDC Motor version I (BLDCm). 1056983499861724403753 PSP 921.2 KB None None documents None 1056983499861724403753 /docs/en/application-note/AN2521.pdf 921224 /docs/en/application-note/AN2521.pdf AN2521 documents N N 2016-10-31 BLDC Motor version II TPU Function Set /docs/en/application-note/AN2521.pdf /docs/en/application-note/AN2521.pdf Application Note N 645036621402383989 2022-12-07 pdf N en May 29, 2003 645036621402383989 Application Note Y N BLDC Motor version II TPU Function Set 30 0 English The 3-Phase Sine Wave Generator (3Sin) TPU function generates a pulse-width modulated 3-phase sine wave signal for general motor control. 1056981740912726006234 PSP 658.6 KB None None documents None 1056981740912726006234 /docs/en/application-note/AN2514.pdf 658624 /docs/en/application-note/AN2514.pdf AN2514 documents N 2003-06-30 3-Phase Sine Wave Generator TPU Function Set /docs/en/application-note/AN2514.pdf /docs/en/application-note/AN2514.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N 3-Phase Sine Wave Generator TPU Function Set 31 0 English Standard Space Vector Modulation &#8211; 3 outputs version (svmStd3) is a variant of the svmStd function that, in contrary to svmStd, generates only top channel signal of each PWM pair. 1056986183382714679783 PSP 625.3 KB None None documents None 1056986183382714679783 /docs/en/application-note/AN2532.pdf 625295 /docs/en/application-note/AN2532.pdf AN2532 documents N 2003-06-30 Standard Space Vector Modulation - 3 outputs version TPU Function Set /docs/en/application-note/AN2532.pdf /docs/en/application-note/AN2532.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N Standard Space Vector Modulation - 3 outputs version TPU Function Set 32 0 English The 3-phase Hall Sensor Decoder (3HD) TPU Function is useful for decoding information from a Hall sensor signal in a motion control system. 1056981539601717822233 PSP 599.2 KB None None documents None 1056981539601717822233 /docs/en/application-note/AN2513.pdf 599176 /docs/en/application-note/AN2513.pdf AN2513 documents N 2003-06-30 3-phase Hall Sensor Decoder TPU Function /docs/en/application-note/AN2513.pdf /docs/en/application-note/AN2513.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N 3-phase Hall Sensor Decoder TPU Function 33 0 English The 3-Phase Sine Wave Generator &#8211; 3 outputs version &#8211; XOR version (3Sin3Xor) is a version of the 3-Phase Sine Wave Generator &#8211; 3 outputs version (3Sin3) function that uses two TPU channels to generate one PWM output channel. 1056982890477722022773 PSP 598.9 KB None None documents None 1056982890477722022773 /docs/en/application-note/AN2518.pdf 598905 /docs/en/application-note/AN2518.pdf AN2518 documents N 2003-06-30 3-Phase Sine Wave Generator - 3 outputs version - XOR version TPU Function Set /docs/en/application-note/AN2518.pdf /docs/en/application-note/AN2518.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N 3-Phase Sine Wave Generator - 3 outputs version - XOR version TPU Function Set 34 0 English 32-bit Linear Quadrature Decoder (32LQD) TPU Function Set is useful for decoding position, direction and velocity information from encoder signals in motion control systems. 1056980703612738311496 PSP 399.1 KB None None documents None 1056980703612738311496 /docs/en/application-note/AN2511.pdf 399126 /docs/en/application-note/AN2511.pdf AN2511 documents N 2003-06-30 32-Bit Linear Quadrature Decoder TPU Function Set /docs/en/application-note/AN2511.pdf /docs/en/application-note/AN2511.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note N N 32-Bit Linear Quadrature Decoder TPU Function Set 35 0 English Standard Space Vector Modulation &#8211; XOR version (svmStdXor) is a version of the Standard Space Vector Modulation (svmStd) function that uses two TPU channels to generate one PWM output channel. 1056985485829718196122 PSP 629.3 KB None None documents None 1056985485829718196122 /docs/en/application-note/AN2529.pdf 629300 /docs/en/application-note/AN2529.pdf AN2529 documents N 2003-06-30 Standard Space Vector Modulation - XOR version TPU Function Set /docs/en/application-note/AN2529.pdf /docs/en/application-note/AN2529.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N Standard Space Vector Modulation - XOR version TPU Function Set 36 0 English The DC Motor &#8211; 2 outputs version &#8211; XOR version (DCm2Xor) TPU function is a version of the DC Motor &#8211; 2 output version (DCm2) function that uses two TPU channels to generate one PWM output channel. 1056984792868711153951 PSP 529.7 KB None None documents None 1056984792868711153951 /docs/en/application-note/AN2526.pdf 529717 /docs/en/application-note/AN2526.pdf AN2526 documents N 2003-06-30 DC Motor - 2 outputs version - XOR version TPU Function Set /docs/en/application-note/AN2526.pdf /docs/en/application-note/AN2526.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N DC Motor - 2 outputs version - XOR version TPU Function Set 37 0 English The Standard Space Vector Modulation with Dead-Time Correction TPU function set (svmStdDt) extends the functionality of the Standard Space Vector Modulation TPU function set (svmStd) by the dead-time correction technique. 1056985694596709020188 PSP 703.9 KB None None documents None 1056985694596709020188 /docs/en/application-note/AN2530.pdf 703947 /docs/en/application-note/AN2530.pdf AN2530 documents N 2003-06-30 Standard Space Vector Modulation with Dead-Time Correction TPU Function Set /docs/en/application-note/AN2530.pdf /docs/en/application-note/AN2530.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N Standard Space Vector Modulation with Dead-Time Correction TPU Function Set 38 0 English The DC Motor (DCm) TPU function drives a DC Motor, independently of the CPU. 1056983799725724156341 PSP 604.8 KB None None documents None 1056983799725724156341 /docs/en/application-note/AN2522.pdf 604811 /docs/en/application-note/AN2522.pdf AN2522 documents N 2003-06-30 DC Motor TPU Function Set /docs/en/application-note/AN2522.pdf /docs/en/application-note/AN2522.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 29, 2003 645036621402383989 Application Note Y N DC Motor TPU Function Set 39 0 English This application note addresses features of the enhanced interrupt controller (EIC) available on MPC56x/MPC53x devices. It is intended to supplement application note AN2109/D, MPC555 Interrupts. When using this document, AN2109/D should be used as a reference for general terms, supplementary information on interrupts and exceptions, and example interrupt routines. 11D3GhT3 PSP 1.0 MB None None documents None 11D3GhT3 /docs/en/application-note/AN2472.pdf 1034642 /docs/en/application-note/AN2472.pdf AN2472 documents N 2003-05-08 MPC500 Enhanced Interrupt Controller /docs/en/application-note/AN2472.pdf /docs/en/application-note/AN2472.pdf Application Note N 645036621402383989 2022-12-07 pdf en May 8, 2003 645036621402383989 Application Note Y N MPC500 Enhanced Interrupt Controller 40 0.1 English This application note addresses connector options for the MPC561, the MPC563, and the MPC565. 10YzZzfm PSP 666.2 KB None None documents None 10YzZzfm /docs/en/application-note/AN2298.pdf 666207 /docs/en/application-note/AN2298.pdf AN2298 documents N 2002-12-09 Nexus Interface Connector Options for MPC56x Devices /docs/en/application-note/AN2298.pdf /docs/en/application-note/AN2298.pdf Application Note N 645036621402383989 2022-12-07 pdf en Feb 8, 2003 645036621402383989 Application Note Y N Nexus Interface Connector Options for MPC56x Devices 41 0 English AN2360SW.zip /docs/en/application-note-software/AN2360SW.zip /docs/en/application-note-software/AN2360SW.zip &#10;&#10;&#10;Application Note 10k8TyXw PSP 663.0 KB None None documents None 10k8TyXw /docs/en/application-note/AN2360.pdf 662969 /docs/en/application-note/AN2360.pdf AN2360 documents N 2003-01-14 General TPU C Functions for the MPC500 Family /docs/en/application-note/AN2360.pdf /docs/en/application-note/AN2360.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 20, 2002 645036621402383989 Application Note Y N General TPU C Functions for the MPC500 Family 42 0 English AN2365SW.zip /docs/en/application-note-software/AN2365SW.zip /webapp/sps/download/license.jsp?colCode=AN2365SW&docLang=en &#10;&#10;&#10;Application Note 10j0Fj90 PSP 428.9 KB None None documents None 10j0Fj90 /docs/en/application-note/AN2365.pdf 428885 /docs/en/application-note/AN2365.pdf AN2365 documents N 2003-01-09 Using the Programmable Time Accumulator TPU Function (PTA) with the MPC500 Family /docs/en/application-note/AN2365.pdf /docs/en/application-note/AN2365.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 20, 2002 645036621402383989 Application Note Y N Using the Programmable Time Accumulator TPU Function (PTA) with the MPC500 Family 43 0 English AN2371SW.zip /docs/en/application-note-software/AN2371SW.zip /docs/en/application-note-software/AN2371SW.zip &#10;&#10;&#10;Application Note 10j0GGjW PSP 423.9 KB None None documents None 10j0GGjW /docs/en/application-note/AN2371.pdf 423880 /docs/en/application-note/AN2371.pdf AN2371 documents N 2003-01-09 Using the Universal Asynchronous Receiver Transmitter TPUFunction (UART) with the MPC500 Family /docs/en/application-note/AN2371.pdf /docs/en/application-note/AN2371.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 20, 2002 645036621402383989 Application Note Y N Using the Universal Asynchronous Receiver Transmitter TPUFunction (UART) with the MPC500 Family 44 0 English AN2362SW.zip /docs/en/application-note-software/AN2362SW.zip /webapp/sps/download/license.jsp?colCode=AN2362SW&docLang=en &#13;&#10;&#13;&#10;Application Note 10j0FQxc PSP 583.4 KB None None documents None 10j0FQxc /docs/en/application-note/AN2362.pdf 583368 /docs/en/application-note/AN2362.pdf AN2362 documents N 2003-01-09 Using the Fast Quadrature Decode TPU Function (FQD) with the MPC500 Family /docs/en/application-note/AN2362.pdf /docs/en/application-note/AN2362.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 20, 2002 645036621402383989 Application Note Y N Using the Fast Quadrature Decode TPU Function (FQD) with the MPC500 Family 45 0 English AN2364SW.zip /docs/en/application-note-software/AN2364SW.zip /webapp/sps/download/license.jsp?colCode=AN2364SW&docLang=en &#10;&#10;&#10;Application Note 10j0Fcy5 PSP 813.5 KB None None documents None 10j0Fcy5 /docs/en/application-note/AN2364.pdf 813527 /docs/en/application-note/AN2364.pdf AN2364 documents N 2003-01-09 Using the Table Stepper Motor TPU Function (TSM) with the MPC500 Family /docs/en/application-note/AN2364.pdf /docs/en/application-note/AN2364.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 20, 2002 645036621402383989 Application Note Y N Using the Table Stepper Motor TPU Function (TSM) with the MPC500 Family 46 0 English This application note was written to provide design engineers with a comparison between the Time Processor Unit 1 (TPU1) on the M68332 and the Time Processor Unit 3 (TPU3) on the MPC500 family. 10j0FJ4d PSP 576.3 KB None None documents None 10j0FJ4d /docs/en/application-note/AN2361.pdf 576272 /docs/en/application-note/AN2361.pdf AN2361 documents N 2003-01-09 Comparison Between the M68332 TPU1 and the MPC500-Family TPU3 /docs/en/application-note/AN2361.pdf /docs/en/application-note/AN2361.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 20, 2002 645036621402383989 Application Note Y N Comparison Between the M68332 TPU1 and the MPC500-Family TPU3 47 0 English AN2374SW.zip /docs/en/application-note-software/AN2374SW.zip /webapp/sps/download/license.jsp?colCode=AN2374SW&docLang=en &#10;&#10;&#10;Application Note 10j0GZ22 PSP 585.4 KB None None documents None 10j0GZ22 /docs/en/application-note/AN2374.pdf 585420 /docs/en/application-note/AN2374.pdf AN2374 documents N 2003-01-09 Using the Queued Output Match TPU Function (QOM) with the MPC500 Family /docs/en/application-note/AN2374.pdf /docs/en/application-note/AN2374.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 20, 2002 645036621402383989 Application Note Y N Using the Queued Output Match TPU Function (QOM) with the MPC500 Family 48 0 English AN2369SW.zip /docs/en/application-note-software/AN2369SW.zip /webapp/sps/download/license.jsp?colCode=AN2369SW&docLang=en &#10;&#10;&#10;Application Note 10j0G4zr PSP 543.9 KB None None documents None 10j0G4zr /docs/en/application-note/AN2369.pdf 543850 /docs/en/application-note/AN2369.pdf AN2369 documents N 2003-01-09 Using the Discrete Input/Output TPU Function (DIO) with the MPC500 Family /docs/en/application-note/AN2369.pdf /docs/en/application-note/AN2369.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 20, 2002 645036621402383989 Application Note Y N Using the Discrete Input/Output TPU Function (DIO) with the MPC500 Family 49 0 English AN2363SW.zip /docs/en/application-note-software/AN2363SW.zip /webapp/sps/download/license.jsp?colCode=AN2363SW&docLang=en &#10;&#10;&#10;Application Note 10j0FWMY PSP 581.6 KB None None documents None 10j0FWMY /docs/en/application-note/AN2363.pdf 581564 /docs/en/application-note/AN2363.pdf AN2363 documents N 2003-01-09 Using the Frequency Measurement TPU Function (FQM) with theMPC500 Family /docs/en/application-note/AN2363.pdf /docs/en/application-note/AN2363.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 20, 2002 645036621402383989 Application Note Y N Using the Frequency Measurement TPU Function (FQM) with theMPC500 Family 50 0 English AN2370SW.zip /docs/en/application-note-software/AN2370SW.zip /webapp/sps/download/license.jsp?colCode=AN2370SW&docLang=en &#13;&#10;&#13;&#10;Application Note 10j0GBXz PSP 512.1 KB None None documents None 10j0GBXz /docs/en/application-note/AN2370.pdf 512097 /docs/en/application-note/AN2370.pdf AN2370 documents N 2003-01-09 Using the Quadrature Decode TPU Function (QDEC) with theMPC500 Family /docs/en/application-note/AN2370.pdf /docs/en/application-note/AN2370.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 20, 2002 645036621402383989 Application Note Y N Using the Quadrature Decode TPU Function (QDEC) with theMPC500 Family 51 0 English AN2372SW.zip /docs/en/application-note-software/AN2372SW.zip /docs/en/application-note-software/AN2372SW.zip &#10;&#10;&#10;Application Note 10j0GNDZ PSP 735.3 KB None None documents None 10j0GNDZ /docs/en/application-note/AN2372.pdf 735316 /docs/en/application-note/AN2372.pdf AN2372 documents N 2003-01-09 Using the Output Compare TPU Function (OC) with the MPC500Family /docs/en/application-note/AN2372.pdf /docs/en/application-note/AN2372.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 20, 2002 645036621402383989 Application Note Y N Using the Output Compare TPU Function (OC) with the MPC500Family 52 0 English AN2368SW.zip /docs/en/application-note-software/AN2368SW.zip /docs/en/application-note-software/AN2368SW.zip &#13;&#10;&#13;&#10;Application Note 10j0G0fk PSP 471.6 KB None None documents None 10j0G0fk /docs/en/application-note/AN2368.pdf 471564 /docs/en/application-note/AN2368.pdf AN2368 documents N N 2016-10-31 Using the Hall Effect Decode (HALLD) TPU Function with the MPC500 Family /docs/en/application-note/AN2368.pdf /docs/en/application-note/AN2368.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 20, 2002 645036621402383989 Application Note Y N Using the Hall Effect Decode (HALLD) TPU Function with the MPC500 Family 53 0 English AN2373SW.zip /docs/en/application-note-software/AN2373SW.zip /webapp/sps/download/license.jsp?colCode=AN2373SW&docLang=en &#13;&#10;&#13;&#10;Application Note 10j0GSQm PSP 579.1 KB None None documents None 10j0GSQm /docs/en/application-note/AN2373.pdf 579068 /docs/en/application-note/AN2373.pdf AN2373 documents N 2003-01-09 Using the Pulse Width Modulation TPU Function (PWM) with the MPC500 Family /docs/en/application-note/AN2373.pdf /docs/en/application-note/AN2373.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 20, 2002 645036621402383989 Application Note Y N Using the Pulse Width Modulation TPU Function (PWM) with the MPC500 Family 54 0 English AN2367SW.zip /docs/en/application-note-software/AN2367SW.zip /docs/en/application-note-software/AN2367SW.zip &#10;&#10;&#10;Application Note 10j0Fv1D PSP 481.3 KB None None documents None 10j0Fv1D /docs/en/application-note/AN2367.pdf 481291 /docs/en/application-note/AN2367.pdf AN2367 documents N N 2016-10-31 Using the Multiphase Motor Commutation TPU Function (COMM)with the MPC500 Family /docs/en/application-note/AN2367.pdf /docs/en/application-note/AN2367.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 20, 2002 645036621402383989 Application Note Y N Using the Multiphase Motor Commutation TPU Function (COMM)with the MPC500 Family 55 0 English AN2375SW.zip /docs/en/application-note-software/AN2375SW.zip /docs/en/application-note-software/AN2375SW.zip &#13;&#10;&#13;&#10;Application Note 10j0GfD8 PSP 618.6 KB None None documents None 10j0GfD8 /docs/en/application-note/AN2375.pdf 618645 /docs/en/application-note/AN2375.pdf AN2375 documents N 2003-01-09 Using the Multichannel Pulse Width Modulation TPU Function (MCPWM) with the MPC500 Family /docs/en/application-note/AN2375.pdf /docs/en/application-note/AN2375.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 20, 2002 645036621402383989 Application Note Y N Using the Multichannel Pulse Width Modulation TPU Function (MCPWM) with the MPC500 Family 56 1 English EMC Guidelines for MPC Based Automotive Powertrain Systems.This application note focuses on guidelines for reducing radiated emissions from MPC500-based powertrain systems. These guidelines are not a complete set of all known EMC techniques, instead they are some specific recommendations for MPC500-based systems. This application note should be used in conjunction with other more general sources of EMC guidelines. W996248372752 PSP 1.7 MB None None documents None W996248372752 /docs/en/application-note/AN2127.pdf 1706762 /docs/en/application-note/AN2127.pdf AN2127 documents N 2001-07-27 EMC Guidelines for MPC Based Automotive Powertrain Systems /docs/en/application-note/AN2127.pdf /docs/en/application-note/AN2127.pdf Application Note N 645036621402383989 2022-12-07 pdf en Mar 11, 2002 645036621402383989 Application Note Y N EMC Guidelines for MPC Based Automotive Powertrain Systems 57 0 English AN2192SW.zip /secured/assets/documents/en/application-note-software/AN2192SW.zip /webapp/Download?colCode=AN2192SW&appType=license&docLang=en This application note explains the importance of determining data integrity in the dual-port TPU RAM module and how to calculate the signature value. Q1004030389950 PSP 513.7 KB None None documents None Q1004030389950 /docs/en/application-note/AN2192.pdf 513665 /docs/en/application-note/AN2192.pdf AN2192 documents N 2001-10-25 Detecting Errors in the Dual-Port TPU RAM (DPTRAM) Module /docs/en/application-note/AN2192.pdf /docs/en/application-note/AN2192.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 25, 2001 645036621402383989 Application Note Y N Detecting Errors in the Dual-Port TPU RAM (DPTRAM) Module 58 0 English AN2109SW.zip /secured/assets/documents/en/application-note-software/AN2109SW.zip /webapp/Download?colCode=AN2109SW&appType=license&docLang=en MPC555 Interrupts M996247421922 PSP 2.9 MB None None documents None M996247421922 /docs/en/application-note/AN2109.pdf 2943132 /docs/en/application-note/AN2109.pdf AN2109 documents N 2001-07-27 MPC555 Interrupts /docs/en/application-note/AN2109.pdf /docs/en/application-note/AN2109.pdf Application Note N 645036621402383989 2022-12-07 pdf en Aug 13, 2001 645036621402383989 Application Note N N MPC555 Interrupts 59 0 English This application note presents a way to compress the eight Kbytes of exception vector table (according to the PowerPC architecture) into a 32-bit branch instruction (jump-table), allowing the compiler/linker to use this valuable space in on-chip memory. T994794258399 PSP 695.9 KB None None documents None T994794258399 /docs/en/application-note/AN1821.pdf 695949 /docs/en/application-note/AN1821.pdf AN1821 documents N 2001-07-10 AN1821 /docs/en/application-note/AN1821.pdf /docs/en/application-note/AN1821.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jan 1, 1999 645036621402383989 Application Note N N AN1821 60 1.0 English AN1776 Stereo Audio Transmission Over The CAN Bus Using The NXP MC68376 With TouCAN Module G966576858838 PSP 1.1 MB None None documents None G966576858838 /docs/en/application-note/AN1776.pdf 1076030 /docs/en/application-note/AN1776.pdf AN1776 documents N 2000-08-17 AN1776/D Stereo Audio Transmission Over The CAN Bus Using The NXP<sup>&#174;</sup> Semiconductors MC68376 With TouCAN Module /docs/en/application-note/AN1776.pdf /docs/en/application-note/AN1776.pdf Application Note N 645036621402383989 2022-12-07 pdf en Jul 10, 1998 645036621402383989 Application Note Y N AN1776/D Stereo Audio Transmission Over The CAN Bus Using The NXP<sup>&#174;</sup> Semiconductors MC68376 With TouCAN Module ユーザ・ガイド User Guide 2 61 1 English MPC561/3 Autotemp Evaluation Board Users Manual 1071859487666711782114 PSP 1.1 MB None None documents None 1071859487666711782114 /docs/en/user-guide/MPC561EVBUM.pdf 1144935 /docs/en/user-guide/MPC561EVBUM.pdf MPC561EVBUM documents N 2003-12-19 MPC561/MPC563 Autotemp Evaluation Board Users Manual /docs/en/user-guide/MPC561EVBUM.pdf /docs/en/user-guide/MPC561EVBUM.pdf User Guide N 132339537837198660 2022-12-07 pdf en Dec 19, 2003 132339537837198660 User Guide N N MPC561/MPC563 Autotemp Evaluation Board Users Manual 62 1.2 English MPC564 based evaluation board used for development and test of microcontroller. D1033142033953 PSP 1.7 MB None None documents None D1033142033953 /docs/en/user-guide/MPC564EVBUM.pdf 1706520 /docs/en/user-guide/MPC564EVBUM.pdf MPC564EVBUM documents N 2002-09-27 MPC564EVBUM /docs/en/user-guide/MPC564EVBUM.pdf /docs/en/user-guide/MPC564EVBUM.pdf User Guide N 132339537837198660 2022-12-07 pdf en Mar 1, 2003 132339537837198660 User Guide N N MPC564EVBUM アプリケーション・ノート・ソフトウェア Application Note Software 17 63 0 English Software files for AN2367 (COMM) 10llc7Cy PSP 7.2 KB None None documents None 10llc7Cy /docs/en/application-note-software/AN2367SW.zip 7209 /docs/en/application-note-software/AN2367SW.zip AN2367SW documents N 2003-01-21 Software files for AN2367 (COMM) /docs/en/application-note-software/AN2367SW.zip /docs/en/application-note-software/AN2367SW.zip Application Note Software N 789425793691620447 2022-12-07 zip en Jul 16, 2007 789425793691620447 Application Note Software D N Software files for AN2367 (COMM) 64 0 English Software files for AN2360 (General TPU C functions) 10llWxQ8 PSP 4.8 KB None None documents None 10llWxQ8 /docs/en/application-note-software/AN2360SW.zip 4770 /docs/en/application-note-software/AN2360SW.zip AN2360SW documents N 2003-01-21 Software files for AN2360 (General TPU C functions) /docs/en/application-note-software/AN2360SW.zip /docs/en/application-note-software/AN2360SW.zip Application Note Software N 789425793691620447 2022-12-07 zip en Jul 16, 2007 789425793691620447 Application Note Software D N Software files for AN2360 (General TPU C functions) 65 0 English Software files for AN2368 (HALLD) 10llcb4t PSP 8.8 KB None None documents None 10llcb4t /docs/en/application-note-software/AN2368SW.zip 8762 /docs/en/application-note-software/AN2368SW.zip AN2368SW documents N 2003-01-21 Software files for AN2368 (HALLD) /docs/en/application-note-software/AN2368SW.zip /docs/en/application-note-software/AN2368SW.zip Application Note Software N 789425793691620447 2022-12-07 zip en Jul 16, 2007 789425793691620447 Application Note Software D N Software files for AN2368 (HALLD) 66 0 English Software files for AN2371 (UART) 10llfMtF PSP 5.4 KB None None documents None 10llfMtF /docs/en/application-note-software/AN2371SW.zip 5399 /docs/en/application-note-software/AN2371SW.zip AN2371SW documents N 2003-01-21 Software files for AN2371 (UART) /docs/en/application-note-software/AN2371SW.zip /docs/en/application-note-software/AN2371SW.zip Application Note Software N 789425793691620447 2022-12-07 zip en Jul 16, 2007 789425793691620447 Application Note Software D N Software files for AN2371 (UART) 67 0 English Software files for AN2366 (NITC) 10llbR7X PSP 6.9 KB None None documents None 10llbR7X /docs/en/application-note-software/AN2366SW.zip 6914 /docs/en/application-note-software/AN2366SW.zip AN2366SW documents N 2003-01-21 Software files for AN2366 (NITC) /docs/en/application-note-software/AN2366SW.zip /docs/en/application-note-software/AN2366SW.zip Application Note Software N 789425793691620447 2022-12-07 zip en Jul 16, 2007 789425793691620447 Application Note Software D N Software files for AN2366 (NITC) 68 0 English Software files for AN2372 (OC) 10llfx5B PSP 19.1 KB None None documents None 10llfx5B /docs/en/application-note-software/AN2372SW.zip 19100 /docs/en/application-note-software/AN2372SW.zip AN2372SW documents N 2003-01-21 Software files for AN2372 (OC) /docs/en/application-note-software/AN2372SW.zip /docs/en/application-note-software/AN2372SW.zip Application Note Software N 789425793691620447 2022-12-07 zip en Jul 16, 2007 789425793691620447 Application Note Software D N Software files for AN2372 (OC) 69 0 English Software files for AN2370 (QDEC) 10lldt69 PSP 8.9 KB Click-Thru Software Licensing Agreement-No Registration 1395958162559706127527 documents None 10lldt69 /docs/en/application-note-software/AN2370SW.zip 8867 /docs/en/application-note-software/AN2370SW.zip AN2370SW documents N 2016-10-31 Software files for AN2370 (QDEC) /webapp/sps/download/license.jsp?colCode=AN2370SW&lang_cd=ja /docs/en/application-note-software/AN2370SW.zip Application Note Software N 789425793691620447 2023-10-11 zip en Aug 30, 2006 789425793691620447 Application Note Software N Software files for AN2370 (QDEC) 70 0 English Software files for AN2373 (PWM) 10llgcwT PSP 11.6 KB Click-Thru Software Licensing Agreement-No Registration 1395958162559706127527 documents None 10llgcwT /docs/en/application-note-software/AN2373SW.zip 11556 /docs/en/application-note-software/AN2373SW.zip AN2373SW documents N 2016-10-31 Software files for AN2373 (PWM) /webapp/sps/download/license.jsp?colCode=AN2373SW&lang_cd=ja /docs/en/application-note-software/AN2373SW.zip Application Note Software N 789425793691620447 2023-10-11 zip en Aug 30, 2006 789425793691620447 Application Note Software N Software files for AN2373 (PWM) 71 0 English Software files for AN2365 (PTA) 10llZvnY PSP 11.4 KB Click-Thru Software Licensing Agreement-No Registration 1395958162559706127527 documents None 10llZvnY /docs/en/application-note-software/AN2365SW.zip 11362 /docs/en/application-note-software/AN2365SW.zip AN2365SW documents N 2016-10-31 Software files for AN2365 (PTA) /webapp/sps/download/license.jsp?colCode=AN2365SW&lang_cd=ja /docs/en/application-note-software/AN2365SW.zip Application Note Software N 789425793691620447 2023-10-11 zip en Aug 30, 2006 789425793691620447 Application Note Software N Software files for AN2365 (PTA) 72 0 English Software files for AN2374 (QOM) 10llhGcW PSP 18.7 KB Click-Thru Software Licensing Agreement-No Registration 1395958162559706127527 documents None 10llhGcW /docs/en/application-note-software/AN2374SW.zip 18665 /docs/en/application-note-software/AN2374SW.zip AN2374SW documents N 2016-10-31 Software files for AN2374 (QOM) /webapp/sps/download/license.jsp?colCode=AN2374SW&lang_cd=ja /docs/en/application-note-software/AN2374SW.zip Application Note Software N 789425793691620447 2023-10-11 zip en Aug 30, 2006 789425793691620447 Application Note Software N Software files for AN2374 (QOM) 73 0 English Software files for AN2364 (TSM) 10llZHrj PSP 28.7 KB Click-Thru Software Licensing Agreement-No Registration 1395958162559706127527 documents None 10llZHrj /docs/en/application-note-software/AN2364SW.zip 28716 /docs/en/application-note-software/AN2364SW.zip AN2364SW documents N 2016-10-31 Software files for AN2364 (TSM) /webapp/sps/download/license.jsp?colCode=AN2364SW&lang_cd=ja /docs/en/application-note-software/AN2364SW.zip Application Note Software N 789425793691620447 2023-10-11 zip en Aug 30, 2006 789425793691620447 Application Note Software N Software files for AN2364 (TSM) 74 0 English Software files for AN2363 (FQM) 10llYVCn PSP 37.9 KB Click-Thru Software Licensing Agreement-No Registration 1395958162559706127527 documents None 10llYVCn /docs/en/application-note-software/AN2363SW.zip 37898 /docs/en/application-note-software/AN2363SW.zip AN2363SW documents N 2016-10-31 Software files for AN2363 (FQM) /webapp/sps/download/license.jsp?colCode=AN2363SW&lang_cd=ja /docs/en/application-note-software/AN2363SW.zip Application Note Software N 789425793691620447 2023-10-11 zip en Aug 30, 2006 789425793691620447 Application Note Software N Software files for AN2363 (FQM) 75 0 English Software files for AN2362 (FQD) 10llXVpk PSP 11.1 KB Click-Thru Software Licensing Agreement-No Registration 1395958162559706127527 documents None 10llXVpk /docs/en/application-note-software/AN2362SW.zip 11078 /docs/en/application-note-software/AN2362SW.zip AN2362SW documents N 2016-10-31 Software files for AN2362 (FQD) /webapp/sps/download/license.jsp?colCode=AN2362SW&lang_cd=ja /docs/en/application-note-software/AN2362SW.zip Application Note Software N 789425793691620447 2023-10-11 zip en Aug 30, 2006 789425793691620447 Application Note Software N Software files for AN2362 (FQD) 76 0 English Software files for AN2369 (DIO) 10lldJGp PSP 11.8 KB Click-Thru Software Licensing Agreement-No Registration 1395958162559706127527 documents None 10lldJGp /docs/en/application-note-software/AN2369SW.zip 11828 /docs/en/application-note-software/AN2369SW.zip AN2369SW documents N 2016-10-31 Software files for AN2369 (DIO) /webapp/sps/download/license.jsp?colCode=AN2369SW&lang_cd=ja /docs/en/application-note-software/AN2369SW.zip Application Note Software N 789425793691620447 2023-10-11 zip en Aug 30, 2006 789425793691620447 Application Note Software N Software files for AN2369 (DIO) 77 0 English Software files for AN2375 (MCPWM) 10llhkRS PSP 11.1 KB None None documents None 10llhkRS /docs/en/application-note-software/AN2375SW.zip 11078 /docs/en/application-note-software/AN2375SW.zip AN2375SW documents N 2003-01-21 Software files for AN2375 (MCPWM) /docs/en/application-note-software/AN2375SW.zip /docs/en/application-note-software/AN2375SW.zip Application Note Software N 789425793691620447 2022-12-07 zip en Jun 25, 2003 789425793691620447 Application Note Software D N Software files for AN2375 (MCPWM) 78 0 English Software C1004030415104 PSP 6.8 KB Registration With Click-Thru Software Licensing Agreement 1395958162559706127527 documents Extended C1004030415104 /secured/assets/documents/en/application-note-software/AN2192SW.zip 6789 /secured/assets/documents/en/application-note-software/AN2192SW.zip AN2192SW documents Y N 2016-10-31 Software for use in Detecting Errors in the Dual-Port TPU RAM (DPTRAM) Module /webapp/Download?colCode=AN2192SW&appType=license&lang_cd=ja /secured/assets/documents/en/application-note-software/AN2192SW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en Oct 25, 2001 789425793691620447 Application Note Software N Software for use in Detecting Errors in the Dual-Port TPU RAM (DPTRAM) Module 79 0 English Software files for AN2109 M1003531988848 PSP 339.3 KB Registration With Click-Thru Software Licensing Agreement 1395958162559706127527 documents Extended M1003531988848 /secured/assets/documents/en/application-note-software/AN2109SW.zip 339275 /secured/assets/documents/en/application-note-software/AN2109SW.zip AN2109SW documents Y N 2016-10-31 Software files for AN2109 zipped /webapp/Download?colCode=AN2109SW&appType=license&lang_cd=ja /secured/assets/documents/en/application-note-software/AN2109SW.zip Application Note Software N 789425793691620447 2022-12-07 zip Y en May 10, 2000 789425793691620447 Application Note Software N Software files for AN2109 zipped エンジニアリング・ブリテン Technical Notes 5 80 0 English EB00877, This engineering bulletin provides guidance on programming Priority(PRI) bits of the Interrupt Controller Current Priority Register(INTC_CPRn[PRI]) to ensure coherency of shared resource between Interrupt Services Routines(ISRs) for the MPC56xx and MPC57xx family of devices. 1550136400774719898938 PSP 131.8 KB None None documents None 1550136400774719898938 /docs/en/engineering-bulletin/EB00877.pdf 131838 /docs/en/engineering-bulletin/EB00877.pdf EB00877 documents N N 2019-02-14 EB00877, Programming Priority Bits in the Interrupt Controller Current Priority Register for MPC56xx and MPC57xx Families /docs/en/engineering-bulletin/EB00877.pdf /docs/en/engineering-bulletin/EB00877.pdf Technical Notes N 389245547230346745 2022-12-07 pdf N en Feb 13, 2019 389245547230346745 Technical Notes Y N EB00877, Programming Priority Bits in the Interrupt Controller Current Priority Register for MPC56xx and MPC57xx Families 81 0 English EB00855, This engineering bulletin provides guidance on programming reserved register bits for the MPC55xx, MPC56xx, and MPC57xx families of devices. 1495699633841705738852 PSP 162.7 KB None None documents None 1495699633841705738852 /docs/en/engineering-bulletin/EB00855.pdf 162731 /docs/en/engineering-bulletin/EB00855.pdf EB00855 documents N N 2017-05-25 EB00855, Programming Reserved Register Bits for MPC55xx, MPC56xx, and MPC57xx Families /docs/en/engineering-bulletin/EB00855.pdf /docs/en/engineering-bulletin/EB00855.pdf Technical Notes N 389245547230346745 2022-12-07 pdf N en May 24, 2017 389245547230346745 Technical Notes N EB00855, Programming Reserved Register Bits for MPC55xx, MPC56xx, and MPC57xx Families 82 1 English EB793: This document, developed in response to customer inquiries, describes Motor Industry Software Reliability Association (MISRA&#8482;) compliance in the C Language header files provided by NXP for the automotive market. 1369851108709706895647 PSP 197.0 KB Registration without Disclaimer None documents Extended 1369851108709706895647 /secured/assets/documents/en/engineering-bulletin/EB793.pdf 197012 /secured/assets/documents/en/engineering-bulletin/EB793.pdf EB793 documents Y N 2016-10-31 MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin /webapp/Download?colCode=EB793&lang_cd=ja /secured/assets/documents/en/engineering-bulletin/EB793.pdf Technical Notes N 389245547230346745 2024-07-15 pdf Y en May 28, 2013 389245547230346745 Technical Notes Y N MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin 83 0 English This Engineering Note attempts to clarify documentation on the TouCAN receive process. 1075934178354720509603 PSP 258.4 KB None None documents None 1075934178354720509603 /docs/en/engineering-bulletin/EB634.pdf 258423 /docs/en/engineering-bulletin/EB634.pdf EB634 documents N 2004-02-04 TouCAN Receive Process Clarification /docs/en/engineering-bulletin/EB634.pdf /docs/en/engineering-bulletin/EB634.pdf Technical Notes N 389245547230346745 2022-12-07 pdf en Feb 4, 2004 389245547230346745 Technical Notes N N TouCAN Receive Process Clarification 84 0 English In some cases of using the MDASM in OPWM mode, when modifying the leading edge to adjust the duty cycle of the PWM signal, the output of the OPWM channel will remain asserted when it is expected to be negated. This engineering note explains how this effect occurs and provides a potential work around. 1075736936389709136574 PSP 263.0 KB None None documents None 1075736936389709136574 /docs/en/engineering-bulletin/EB633.pdf 262968 /docs/en/engineering-bulletin/EB633.pdf EB633 documents N 2004-02-02 MDASM OPWM Software Considerations to Avoid Missing Pulses /docs/en/engineering-bulletin/EB633.pdf /docs/en/engineering-bulletin/EB633.pdf Technical Notes N 389245547230346745 2022-12-07 pdf en Jan 30, 2004 389245547230346745 Technical Notes N N MDASM OPWM Software Considerations to Avoid Missing Pulses エラッタ Errata 3 85 11 English MPC563 Revision B Chip Errata G1036770146730 PSP 69.6 KB None None documents None G1036770146730 /docs/en/errata/MPC563BCE.pdf 69575 /docs/en/errata/MPC563BCE.pdf MPC563BCE documents N 2002-11-08 MPC563 Revision B Chip Errata /docs/en/errata/MPC563BCE.pdf /docs/en/errata/MPC563BCE.pdf Errata N 155452329886410597 2022-12-07 pdf en Nov 3, 2010 155452329886410597 Errata Y N MPC563 Revision B Chip Errata 86 5 English MPC563 Rev C Chip Errata 1080072363060700871002 PSP 58.0 KB None None documents None 1080072363060700871002 /docs/en/errata/MPC563CCE.pdf 57963 /docs/en/errata/MPC563CCE.pdf MPC563CCE documents N 2004-03-23 MPC563 Revision C Chip Errata /docs/en/errata/MPC563CCE.pdf /docs/en/errata/MPC563CCE.pdf Errata N 155452329886410597 2022-12-07 pdf en Nov 3, 2010 155452329886410597 Errata Y N MPC563 Revision C Chip Errata 87 8.3 English MPC563 Rev A Chip Errata A1008862483668 PSP 68.1 KB None None documents None A1008862483668 /docs/en/errata/MPC563ACE.pdf 68056 /docs/en/errata/MPC563ACE.pdf MPC563ACE documents N 2001-12-20 MPC563 Revision A Chip Errata /docs/en/errata/MPC563ACE.pdf /docs/en/errata/MPC563ACE.pdf Errata N 155452329886410597 2022-12-07 pdf en Jan 2, 2007 155452329886410597 Errata Y N MPC563 Revision A Chip Errata ファクト・シート Fact Sheet 4 88 9 English AIRBAGFS: Freescale is a leading semiconductor supplier for next-generation airbag applications with custom and standard microcontrollers (MCU), analog and sensor products. We offer solutions for point-to-point and bus-based satellite interface architectures with the established distributed system interface (DSI) as well as the emerging peripheral sensor interface (PSI5) architectures. 1208540600963727452987 PSP 366.7 KB None None documents None 1208540600963727452987 /docs/en/fact-sheet/AIRBAGFS.pdf 366678 /docs/en/fact-sheet/AIRBAGFS.pdf AIRBAGFS documents N N 2016-10-31 Automotive Airbag Safety Systems - Fact Sheet /docs/en/fact-sheet/AIRBAGFS.pdf /docs/en/fact-sheet/AIRBAGFS.pdf Fact Sheet N 736675474163315314 2025-02-24 pdf N en Sep 12, 2016 736675474163315314 Fact Sheet Y N Automotive Airbag Safety Systems - Fact Sheet 89 A English 1196293360198715443408 PSP 243.8 KB None None documents None 1196293360198715443408 /docs/en/fact-sheet/USBMLPPCBDMFS.pdf 243824 /docs/en/fact-sheet/USBMLPPCBDMFS.pdf USBMLPPCBDMFS documents N N 2016-10-31 USB-ML-PPCBDM Fact Sheet /docs/en/fact-sheet/USBMLPPCBDMFS.pdf /docs/en/fact-sheet/USBMLPPCBDMFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf N en Nov 27, 2007 736675474163315314 Fact Sheet Y N USB-ML-PPCBDM Fact Sheet 90 1 English The NXP MPC500 family of 32-bit embedded controllers is supported by a comprehensive development environment that encompasses advanced hardware and software tools to meet the needs of any developer. S1005155204032 PSP 321.1 KB None None documents None S1005155204032 /docs/en/fact-sheet/DEVTOOLSFACT.pdf 321144 /docs/en/fact-sheet/DEVTOOLSFACT.pdf DEVTOOLSFACT documents N 2001-11-07 THE MPC500 FAMILY OF 32-BIT EMBEDDED CONTROLLERS - Fact Sheet /docs/en/fact-sheet/DEVTOOLSFACT.pdf /docs/en/fact-sheet/DEVTOOLSFACT.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en Oct 4, 2002 736675474163315314 Fact Sheet Y N THE MPC500 FAMILY OF 32-BIT EMBEDDED CONTROLLERS - Fact Sheet 91 2 English Specification Sheet MPC500 Family F1025722186663 PSP 320.0 KB None None documents None F1025722186663 /docs/en/fact-sheet/MPC500FACT.pdf 319960 /docs/en/fact-sheet/MPC500FACT.pdf MPC500FACT documents N 2002-07-03 Specification Sheet MPC500 Family /docs/en/fact-sheet/MPC500FACT.pdf /docs/en/fact-sheet/MPC500FACT.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en Jul 3, 2002 736675474163315314 Fact Sheet N N Specification Sheet MPC500 Family 製品概要 Product Brief 1 92 0.1 English Product Brief S1008347362378 PSP 221.2 KB None None documents None S1008347362378 /docs/en/product-brief/NVMGMDPB.pdf 221193 /docs/en/product-brief/NVMGMDPB.pdf NVMGMDPB documents N N 2016-10-31 General Market Driver (GMD) Flash Program/Erase Software /docs/en/product-brief/NVMGMDPB.pdf /docs/en/product-brief/NVMGMDPB.pdf Product Brief N 899114358132306053 2023-08-09 pdf N en Aug 13, 2002 899114358132306053 Product Brief Y N General Market Driver (GMD) Flash Program/Erase Software サポート情報 Supporting Information 3 93 0 English 1071865686219721885088 PSP 91.6 KB None None documents None 1071865686219721885088 /docs/en/supporting-information/MPC561EVBBOM_XLS.xls 91648 /docs/en/supporting-information/MPC561EVBBOM_XLS.xls MPC561EVBBOM_XLS documents N N 2016-10-31 MPC561/MPC563 EVB Bill of Materials /docs/en/supporting-information/MPC561EVBBOM_XLS.xls /docs/en/supporting-information/MPC561EVBBOM_XLS.xls Supporting Information N 371282830530968666 2022-12-07 xls N en Dec 19, 2003 371282830530968666 Supporting Information Y N MPC561/MPC563 EVB Bill of Materials 94 0 English 1071862172932693985885 PSP 17.2 KB None None documents None 1071862172932693985885 /docs/en/supporting-information/MPC561EVBBOM.pdf 17237 /docs/en/supporting-information/MPC561EVBBOM.pdf MPC561EVBBOM documents N 2003-12-19 MPC561/MPC563 Bill of Materials (pdf) /docs/en/supporting-information/MPC561EVBBOM.pdf /docs/en/supporting-information/MPC561EVBBOM.pdf Supporting Information N 371282830530968666 2022-12-07 pdf en Dec 19, 2003 371282830530968666 Supporting Information N N MPC561/MPC563 Bill of Materials (pdf) 95 3 English 11KvYC40 PSP 183.9 KB None None documents None 11KvYC40 /docs/en/supporting-information/MPC500_MEMORY_MAP.pdf 183856 /docs/en/supporting-information/MPC500_MEMORY_MAP.pdf MPC500_MEMORY_MAP documents N 2003-06-03 MPC500 Memory Map /docs/en/supporting-information/MPC500_MEMORY_MAP.pdf /docs/en/supporting-information/MPC500_MEMORY_MAP.pdf Supporting Information N 371282830530968666 2022-12-07 pdf en Mar 1, 2003 371282830530968666 Supporting Information N N MPC500 Memory Map true 0 MPC563 downloads ja true 1 Y PSP アプリケーション・ノート 56 /docs/en/application-note/AN4731.pdf 2016-10-31 1370470727458723387723 PSP 5 Dec 27, 2017 Application Note Describing injection currents in terms of the data sheet electrical specifications for normal recommended operating conditions and for error conditions that allow short-term violations of the recommended operating conditions as listed in the device absolute maximum injection current specifications. Also, describing what should be done to protect the MCU from any damage due to over-voltage conditions on the I/O pins. None /docs/en/application-note/AN4731.pdf English documents 358140 None 645036621402383989 2023-10-31 N /docs/en/application-note/AN4731.pdf AN4731: Understanding Injection Current on NXP Automotive Microcontrollers – Application Note /docs/en/application-note/AN4731.pdf documents 645036621402383989 Application Note N en None Y pdf 2 N N AN4731: Understanding Injection Current on NXP Automotive Microcontrollers – Application Note 358.1 KB AN4731 N 1370470727458723387723 /docs/en/application-note/AN5233.pdf 2021-07-21 1450347856433701644145 PSP 6 Dec 16, 2015 Application Note Presenting information about Galvanically Isolated Circuit Board that provides electrical isolation between a development tool and an application. None /docs/en/application-note/AN5233.pdf English documents 2000386 None 645036621402383989 2023-06-07 N /docs/en/application-note/AN5233.pdf AN5233: Isolator Board for In-Circuit Debugging and Programming tools – Application Note /docs/en/application-note/AN5233.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN5233: Isolator Board for In-Circuit Debugging and Programming tools – Application Note 2.0 MB AN5233 N 1450347856433701644145 /docs/en/application-note/AN4365.pdf 2021-07-21 1316629672453740598962 PSP 7 Sep 21, 2011 Application Note Showing how to develop a flash memory programming tool for the MPC56xx family of devices. Giving some details about the JTAG communication protocol, OnCE module, or the Nexus R/W access block. None /docs/en/application-note/AN4365.pdf English documents 1527214 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4365.pdf AN4365: MPC56xx Flash Programming Through Nexus/JTAG – Application Note /docs/en/application-note/AN4365.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4365: MPC56xx Flash Programming Through Nexus/JTAG – Application Note 1.5 MB AN4365 N 1316629672453740598962 /docs/en/application-note/AN4088.pdf 2021-07-21 1286944514912716522863 PSP 8 Oct 12, 2010 Application Note Describing the required and optional features supported by each of the Nexus classes. Also, showing the support class for MPC5500 and MPC5600 devices. None /docs/en/application-note/AN4088.pdf English documents 243582 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4088.pdf AN4088: MPC5500/MPC5600 Nexus Support Overview – Application Note /docs/en/application-note/AN4088.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4088: MPC5500/MPC5600 Nexus Support Overview – Application Note 243.6 KB AN4088 N 1286944514912716522863 /docs/en/application-note/AN3787.pdf 2008-12-12 1229114630939724369514 PSP 9 Dec 12, 2008 Application Note AN3787: The MPC55xx and MPC563x family of microcontrollers have a feature called censorship which is a secure way to prevent unauthorized access to the device. The key to this feature is a 32-bit word that is stored in the shadow block comprised of censorship and serial boot control information, each sixteen bits in length. This 32-bit censorship control word is read and interpreted by hardware as part of the boot process. None /docs/en/application-note/AN3787.pdf English documents 151289 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3787.pdf AN3787, Preventing Device Lockout via Censorship on MPC55xx and MPC563x Families - Application Notes /docs/en/application-note/AN3787.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N AN3787, Preventing Device Lockout via Censorship on MPC55xx and MPC563x Families - Application Notes 151.3 KB AN3787 N 1229114630939724369514 /docs/en/application-note/AN2354.pdf 2002-11-21 O1037912843618 PSP 10 Aug 20, 2008 Application Note This application note provides the adaptation of the standard Dhrystone version 2.1 to the Freescdale MPC500 family. Dhrystone version 2.1 is a publicly-availible standard for benchmarking various CPUs.enter None /docs/en/application-note/AN2354.pdf English documents 435455 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2354.pdf Running the Dhrystone Benchmark for the MPC500 Family /docs/en/application-note/AN2354.pdf documents 645036621402383989 Application Note N en None N pdf 1 N Running the Dhrystone Benchmark for the MPC500 Family 435.5 KB AN2354 N O1037912843618 /docs/en/application-note/AN2693.pdf 2005-01-11 1105459948652719983321 PSP 11 Jan 11, 2005 Application Note The MPC565 was the first publicly available microcontroller to feature a Nexus Interface. It allows debug capabilities and high speed acess to the core. The Nexus standard, as implemented on the MPC56x, is the Real-Time Embedded Application Development Interface (READI). The READI's new features are described here and apply to Rev D of the MPC565, Rev D of the MPC561, and Rev C of the MPC563. None /docs/en/application-note/AN2693.pdf English documents 648030 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2693.pdf New Features of the MPC56x READI Nexus Interface Module /docs/en/application-note/AN2693.pdf documents 645036621402383989 Application Note N en None N pdf 0 N New Features of the MPC56x READI Nexus Interface Module 648.0 KB AN2693 N 1105459948652719983321 /docs/en/application-note/AN2366.pdf 2003-01-09 10j0Fpp9 PSP 12 Aug 11, 2004 Application Note TECD 8.5x11 Looseleaf Document Template None /docs/en/application-note/AN2366.pdf English documents 563555 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2366.pdf Using the New Input Transition/Input Capture TPU Function (NITC) with the MPC500 Family /docs/en/application-note/AN2366.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Using the New Input Transition/Input Capture TPU Function (NITC) with the MPC500 Family 563.6 KB AN2366 N 10j0Fpp9 /docs/en/application-note/AN2668.pdf 2004-01-16 1074287955359701445555 PSP 13 Jan 16, 2004 Application Note This application note is intended to describe an environment that minimises the software development complexity for a dual controller application. None /docs/en/application-note/AN2668.pdf English documents 569978 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2668.pdf Dual Controller Software Development for MPC561/MPC563 EVB /docs/en/application-note/AN2668.pdf documents 645036621402383989 Application Note N en None N pdf 0 N Dual Controller Software Development for MPC561/MPC563 EVB 570.0 KB AN2668 N 1074287955359701445555 /docs/en/application-note/AN2667.pdf 2003-12-19 1071856080203715025502 PSP 14 Dec 19, 2003 Application Note MPC500 family application note None /docs/en/application-note/AN2667.pdf English documents 872424 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2667.pdf Multi-Controller Hardware Development for the MPC5xx Family /docs/en/application-note/AN2667.pdf documents 645036621402383989 Application Note N en None N pdf 0 N Multi-Controller Hardware Development for the MPC5xx Family 872.4 KB AN2667 N 1071856080203715025502 /docs/en/application-note/AN2000.pdf 2003-09-10 1063227520590695095893 PSP 15 Sep 10, 2003 Application Note This application note explores some of the capabilities of the MPC500 family BDM interface software initialization requirements and part/revision identification. None /docs/en/application-note/AN2000.pdf English documents 1292429 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2000.pdf MPC500 Family Background Debug Mode /docs/en/application-note/AN2000.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N MPC500 Family Background Debug Mode 1.3 MB AN2000 N 1063227520590695095893 /docs/en/application-note/AN2527.pdf 2003-06-30 1056985095806730274839 PSP 16 May 29, 2003 Application Note The DC Motor with Dead-Time Correction &#8211; XOR version (DCmDtXor) TPU function is a version of the DC Motor with Dead-Time Correction (DCmDt) function that uses two TPU channels to generate one PWM output channel. None /docs/en/application-note/AN2527.pdf English documents 692147 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2527.pdf DC Motor with Dead-Time Correction - XOR version TPU Function Set /docs/en/application-note/AN2527.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N DC Motor with Dead-Time Correction - XOR version TPU Function Set 692.1 KB AN2527 N 1056985095806730274839 /docs/en/application-note/AN2528.pdf 2003-06-30 1056985291136722953794 PSP 17 May 29, 2003 Application Note Standard Space Vector Modulation (svmStd) is a technique that is used to implement a straightforward method of switching motor windings in applications such as AC induction motor control and PMSM motor control. None /docs/en/application-note/AN2528.pdf English documents 722715 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2528.pdf Standard Space Vector Modulation TPU Function Set /docs/en/application-note/AN2528.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Standard Space Vector Modulation TPU Function Set 722.7 KB AN2528 N 1056985291136722953794 /docs/en/application-note/AN2531.pdf 2003-06-30 1056985908666698876001 PSP 18 May 29, 2003 Application Note The Standard Space Vector Modulation with Dead-Time Correction&#8211;XOR version (svmStdDtXor) is a version of the SSVM with Dead-Time Correction (svmStdDt) function that uses two TPU channels to generate one PWM output channel. None /docs/en/application-note/AN2531.pdf English documents 618400 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2531.pdf Standard SVM with Dead-Time Correction - XOR version /docs/en/application-note/AN2531.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Standard SVM with Dead-Time Correction - XOR version 618.4 KB AN2531 N 1056985908666698876001 /docs/en/application-note/AN2517.pdf 2003-06-30 1056982656144740981651 PSP 19 May 29, 2003 Application Note The 3-Phase Sine Wave Generator with Dead-Time Correction TPU function set (3SinDt) extends the functionality of the 3-Phase Sine Wave Generator TPU function set (3Sin) by the dead-time correction technique. None /docs/en/application-note/AN2517.pdf English documents 694798 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2517.pdf 3-Phase Sine Wave Generator with Dead-Time Correction TPU Function Set /docs/en/application-note/AN2517.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N 3-Phase Sine Wave Generator with Dead-Time Correction TPU Function Set 694.8 KB AN2517 N 1056982656144740981651 /docs/en/application-note/AN2519.pdf 2003-06-30 1056983130522727025313 PSP 20 May 29, 2003 Application Note The 3-Phase Sine Wave Generator with Dead-Time Correction &#8211; XOR version (3SinDtXor) is a version of the 3-Phase Sine Wave Generator with Dead-Time Correction (3SinDt) function that uses two TPU channels to generate one PWM output channel. None /docs/en/application-note/AN2519.pdf English documents 753985 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2519.pdf 3Sin with Dead-Time Correction - XOR version TPU Function Set /docs/en/application-note/AN2519.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N 3Sin with Dead-Time Correction - XOR version TPU Function Set 754.0 KB AN2519 N 1056983130522727025313 /docs/en/application-note/AN2515.pdf 2003-06-30 1056982002061694326396 PSP 21 May 29, 2003 Application Note The 3-Phase Sine Wave Generator &#8211; 3 outputs version (3Sin3) is a variant of the 3Sin function that, in contrast to 3Sin, generates only the top channel signal of each PWM pair. None /docs/en/application-note/AN2515.pdf English documents 592256 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2515.pdf 3-Phase Sine Wave Generator - 3 outputs version TPU Function Set /docs/en/application-note/AN2515.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N 3-Phase Sine Wave Generator - 3 outputs version TPU Function Set 592.3 KB AN2515 N 1056982002061694326396 /docs/en/application-note/AN2520.pdf 2016-10-31 1056983310334711920298 PSP 22 May 29, 2003 Application Note BLDC Motor version I (BLDCm) TPU function drives a Brush less DC Motor by decoding the Hall sensor signals and generating 3-phase complementary-switched center-aligned PWM signals. None /docs/en/application-note/AN2520.pdf English documents 860556 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN2520.pdf BLDC Motor version I TPU Function Set /docs/en/application-note/AN2520.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N BLDC Motor version I TPU Function Set 860.6 KB AN2520 N 1056983310334711920298 /docs/en/application-note/AN2512.pdf 2003-06-30 1056981342566715599952 PSP 23 May 29, 2003 Application Note 1-phase Hall Sensor Decoder (1HD) TPU Function is useful for decoding information from a Hall sensor signal in a motion control system. None /docs/en/application-note/AN2512.pdf English documents 328476 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2512.pdf 1-phase Hall Sensor Decoder TPU Function /docs/en/application-note/AN2512.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N 1-phase Hall Sensor Decoder TPU Function 328.5 KB AN2512 N 1056981342566715599952 /docs/en/application-note/AN2533.pdf 2003-06-30 1056986403108729270126 PSP 24 May 29, 2003 Application Note Standard Space Vector Modulation &#8211; 3 outputs version &#8211; XOR version (svmStd3Xor) is a version of the Standard Space Vector Modulation &#8211; 3 output version (svmStd3) function that uses two TPU channels to generate one PWM output channel. None /docs/en/application-note/AN2533.pdf English documents 569834 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2533.pdf Standard SVM - 3 outputs version - XOR version TPU Function Set /docs/en/application-note/AN2533.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Standard SVM - 3 outputs version - XOR version TPU Function Set 569.8 KB AN2533 N 1056986403108729270126 /docs/en/application-note/AN2525.pdf 2003-06-30 1056984458818718570544 PSP 25 May 29, 2003 Application Note The DC Motor &#8211; XOR version (DCmXor) TPU function is a version of the DC Motor (DCm) function that uses two TPU channels to generate one PWM output channel. None /docs/en/application-note/AN2525.pdf English documents 634639 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2525.pdf DC Motor - XOR version TPU Function Set /docs/en/application-note/AN2525.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N DC Motor - XOR version TPU Function Set 634.6 KB AN2525 N 1056984458818718570544 /docs/en/application-note/AN2524.pdf 2003-06-30 1056984254982717305073 PSP 26 May 29, 2003 Application Note The DC Motor with Dead-Time Correction (DCmDt) TPU function set extends the functionality of the DC Motor TPU function set (DCm) by incorporating the dead-time correction technique. None /docs/en/application-note/AN2524.pdf English documents 664575 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2524.pdf DC Motor with Dead-Time Correction TPU Function Set /docs/en/application-note/AN2524.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N DC Motor with Dead-Time Correction TPU Function Set 664.6 KB AN2524 N 1056984254982717305073 /docs/en/application-note/AN2523.pdf 2003-06-30 1056984053354691980273 PSP 27 May 29, 2003 Application Note The DC Motor &#8211; 2 outputs version (DCm2) TPU function is a variant of the DCm function, which in unlike the DCm, generates only the top channel signal for each PWM pair. None /docs/en/application-note/AN2523.pdf English documents 516877 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2523.pdf DC Motor - 2 outputs version TPU Function Set /docs/en/application-note/AN2523.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N DC Motor - 2 outputs version TPU Function Set 516.9 KB AN2523 N 1056984053354691980273 /docs/en/application-note/AN2516.pdf 2003-06-30 1056982295159695136945 PSP 28 May 29, 2003 Application Note The 3-Phase Sine Wave Generator &#8211; XOR version (3SinXor) is a version of the 3-Phase Sine Wave Generator (3Sin) function that uses two TPU channels to generate one PWM output channel. None /docs/en/application-note/AN2516.pdf English documents 649373 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2516.pdf 3-Phase Sine Wave Generator - XOR version TPU Function Set /docs/en/application-note/AN2516.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N 3-Phase Sine Wave Generator - XOR version TPU Function Set 649.4 KB AN2516 N 1056982295159695136945 /docs/en/application-note/AN2521.pdf 2016-10-31 1056983499861724403753 PSP 29 May 29, 2003 Application Note BLDC Motor version II (BLDC) is an alternative realization of the algorithm provided by BLDC Motor version I (BLDCm). None /docs/en/application-note/AN2521.pdf English documents 921224 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN2521.pdf BLDC Motor version II TPU Function Set /docs/en/application-note/AN2521.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N BLDC Motor version II TPU Function Set 921.2 KB AN2521 N 1056983499861724403753 /docs/en/application-note/AN2514.pdf 2003-06-30 1056981740912726006234 PSP 30 May 29, 2003 Application Note The 3-Phase Sine Wave Generator (3Sin) TPU function generates a pulse-width modulated 3-phase sine wave signal for general motor control. None /docs/en/application-note/AN2514.pdf English documents 658624 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2514.pdf 3-Phase Sine Wave Generator TPU Function Set /docs/en/application-note/AN2514.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N 3-Phase Sine Wave Generator TPU Function Set 658.6 KB AN2514 N 1056981740912726006234 /docs/en/application-note/AN2532.pdf 2003-06-30 1056986183382714679783 PSP 31 May 29, 2003 Application Note Standard Space Vector Modulation &#8211; 3 outputs version (svmStd3) is a variant of the svmStd function that, in contrary to svmStd, generates only top channel signal of each PWM pair. None /docs/en/application-note/AN2532.pdf English documents 625295 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2532.pdf Standard Space Vector Modulation - 3 outputs version TPU Function Set /docs/en/application-note/AN2532.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Standard Space Vector Modulation - 3 outputs version TPU Function Set 625.3 KB AN2532 N 1056986183382714679783 /docs/en/application-note/AN2513.pdf 2003-06-30 1056981539601717822233 PSP 32 May 29, 2003 Application Note The 3-phase Hall Sensor Decoder (3HD) TPU Function is useful for decoding information from a Hall sensor signal in a motion control system. None /docs/en/application-note/AN2513.pdf English documents 599176 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2513.pdf 3-phase Hall Sensor Decoder TPU Function /docs/en/application-note/AN2513.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N 3-phase Hall Sensor Decoder TPU Function 599.2 KB AN2513 N 1056981539601717822233 /docs/en/application-note/AN2518.pdf 2003-06-30 1056982890477722022773 PSP 33 May 29, 2003 Application Note The 3-Phase Sine Wave Generator &#8211; 3 outputs version &#8211; XOR version (3Sin3Xor) is a version of the 3-Phase Sine Wave Generator &#8211; 3 outputs version (3Sin3) function that uses two TPU channels to generate one PWM output channel. None /docs/en/application-note/AN2518.pdf English documents 598905 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2518.pdf 3-Phase Sine Wave Generator - 3 outputs version - XOR version TPU Function Set /docs/en/application-note/AN2518.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N 3-Phase Sine Wave Generator - 3 outputs version - XOR version TPU Function Set 598.9 KB AN2518 N 1056982890477722022773 /docs/en/application-note/AN2511.pdf 2003-06-30 1056980703612738311496 PSP 34 May 29, 2003 Application Note 32-bit Linear Quadrature Decoder (32LQD) TPU Function Set is useful for decoding position, direction and velocity information from encoder signals in motion control systems. None /docs/en/application-note/AN2511.pdf English documents 399126 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2511.pdf 32-Bit Linear Quadrature Decoder TPU Function Set /docs/en/application-note/AN2511.pdf documents 645036621402383989 Application Note N en None N pdf 0 N 32-Bit Linear Quadrature Decoder TPU Function Set 399.1 KB AN2511 N 1056980703612738311496 /docs/en/application-note/AN2529.pdf 2003-06-30 1056985485829718196122 PSP 35 May 29, 2003 Application Note Standard Space Vector Modulation &#8211; XOR version (svmStdXor) is a version of the Standard Space Vector Modulation (svmStd) function that uses two TPU channels to generate one PWM output channel. None /docs/en/application-note/AN2529.pdf English documents 629300 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2529.pdf Standard Space Vector Modulation - XOR version TPU Function Set /docs/en/application-note/AN2529.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Standard Space Vector Modulation - XOR version TPU Function Set 629.3 KB AN2529 N 1056985485829718196122 /docs/en/application-note/AN2526.pdf 2003-06-30 1056984792868711153951 PSP 36 May 29, 2003 Application Note The DC Motor &#8211; 2 outputs version &#8211; XOR version (DCm2Xor) TPU function is a version of the DC Motor &#8211; 2 output version (DCm2) function that uses two TPU channels to generate one PWM output channel. None /docs/en/application-note/AN2526.pdf English documents 529717 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2526.pdf DC Motor - 2 outputs version - XOR version TPU Function Set /docs/en/application-note/AN2526.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N DC Motor - 2 outputs version - XOR version TPU Function Set 529.7 KB AN2526 N 1056984792868711153951 /docs/en/application-note/AN2530.pdf 2003-06-30 1056985694596709020188 PSP 37 May 29, 2003 Application Note The Standard Space Vector Modulation with Dead-Time Correction TPU function set (svmStdDt) extends the functionality of the Standard Space Vector Modulation TPU function set (svmStd) by the dead-time correction technique. None /docs/en/application-note/AN2530.pdf English documents 703947 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2530.pdf Standard Space Vector Modulation with Dead-Time Correction TPU Function Set /docs/en/application-note/AN2530.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Standard Space Vector Modulation with Dead-Time Correction TPU Function Set 703.9 KB AN2530 N 1056985694596709020188 /docs/en/application-note/AN2522.pdf 2003-06-30 1056983799725724156341 PSP 38 May 29, 2003 Application Note The DC Motor (DCm) TPU function drives a DC Motor, independently of the CPU. None /docs/en/application-note/AN2522.pdf English documents 604811 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2522.pdf DC Motor TPU Function Set /docs/en/application-note/AN2522.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N DC Motor TPU Function Set 604.8 KB AN2522 N 1056983799725724156341 /docs/en/application-note/AN2472.pdf 2003-05-08 11D3GhT3 PSP 39 May 8, 2003 Application Note This application note addresses features of the enhanced interrupt controller (EIC) available on MPC56x/MPC53x devices. It is intended to supplement application note AN2109/D, MPC555 Interrupts. When using this document, AN2109/D should be used as a reference for general terms, supplementary information on interrupts and exceptions, and example interrupt routines. None /docs/en/application-note/AN2472.pdf English documents 1034642 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2472.pdf MPC500 Enhanced Interrupt Controller /docs/en/application-note/AN2472.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N MPC500 Enhanced Interrupt Controller 1.0 MB AN2472 N 11D3GhT3 /docs/en/application-note/AN2298.pdf 2002-12-09 10YzZzfm PSP 40 Feb 8, 2003 Application Note This application note addresses connector options for the MPC561, the MPC563, and the MPC565. None /docs/en/application-note/AN2298.pdf English documents 666207 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2298.pdf Nexus Interface Connector Options for MPC56x Devices /docs/en/application-note/AN2298.pdf documents 645036621402383989 Application Note N en None Y pdf 0.1 N Nexus Interface Connector Options for MPC56x Devices 666.2 KB AN2298 N 10YzZzfm /docs/en/application-note/AN2360.pdf 2003-01-14 10k8TyXw PSP 41 Oct 20, 2002 Application Note &#10;&#10;&#10;Application Note None /docs/en/application-note/AN2360.pdf English documents 662969 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2360.pdf General TPU C Functions for the MPC500 Family /docs/en/application-note/AN2360.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N General TPU C Functions for the MPC500 Family 663.0 KB AN2360 N 10k8TyXw /docs/en/application-note/AN2365.pdf 2003-01-09 10j0Fj90 PSP 42 Oct 20, 2002 Application Note &#10;&#10;&#10;Application Note None /docs/en/application-note/AN2365.pdf English documents 428885 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2365.pdf Using the Programmable Time Accumulator TPU Function (PTA) with the MPC500 Family /docs/en/application-note/AN2365.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Using the Programmable Time Accumulator TPU Function (PTA) with the MPC500 Family 428.9 KB AN2365 N 10j0Fj90 /docs/en/application-note/AN2371.pdf 2003-01-09 10j0GGjW PSP 43 Oct 20, 2002 Application Note &#10;&#10;&#10;Application Note None /docs/en/application-note/AN2371.pdf English documents 423880 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2371.pdf Using the Universal Asynchronous Receiver Transmitter TPUFunction (UART) with the MPC500 Family /docs/en/application-note/AN2371.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Using the Universal Asynchronous Receiver Transmitter TPUFunction (UART) with the MPC500 Family 423.9 KB AN2371 N 10j0GGjW /docs/en/application-note/AN2362.pdf 2003-01-09 10j0FQxc PSP 44 Oct 20, 2002 Application Note &#13;&#10;&#13;&#10;Application Note None /docs/en/application-note/AN2362.pdf English documents 583368 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2362.pdf Using the Fast Quadrature Decode TPU Function (FQD) with the MPC500 Family /docs/en/application-note/AN2362.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Using the Fast Quadrature Decode TPU Function (FQD) with the MPC500 Family 583.4 KB AN2362 N 10j0FQxc /docs/en/application-note/AN2364.pdf 2003-01-09 10j0Fcy5 PSP 45 Oct 20, 2002 Application Note &#10;&#10;&#10;Application Note None /docs/en/application-note/AN2364.pdf English documents 813527 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2364.pdf Using the Table Stepper Motor TPU Function (TSM) with the MPC500 Family /docs/en/application-note/AN2364.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Using the Table Stepper Motor TPU Function (TSM) with the MPC500 Family 813.5 KB AN2364 N 10j0Fcy5 /docs/en/application-note/AN2361.pdf 2003-01-09 10j0FJ4d PSP 46 Oct 20, 2002 Application Note This application note was written to provide design engineers with a comparison between the Time Processor Unit 1 (TPU1) on the M68332 and the Time Processor Unit 3 (TPU3) on the MPC500 family. None /docs/en/application-note/AN2361.pdf English documents 576272 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2361.pdf Comparison Between the M68332 TPU1 and the MPC500-Family TPU3 /docs/en/application-note/AN2361.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Comparison Between the M68332 TPU1 and the MPC500-Family TPU3 576.3 KB AN2361 N 10j0FJ4d /docs/en/application-note/AN2374.pdf 2003-01-09 10j0GZ22 PSP 47 Oct 20, 2002 Application Note &#10;&#10;&#10;Application Note None /docs/en/application-note/AN2374.pdf English documents 585420 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2374.pdf Using the Queued Output Match TPU Function (QOM) with the MPC500 Family /docs/en/application-note/AN2374.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Using the Queued Output Match TPU Function (QOM) with the MPC500 Family 585.4 KB AN2374 N 10j0GZ22 /docs/en/application-note/AN2369.pdf 2003-01-09 10j0G4zr PSP 48 Oct 20, 2002 Application Note &#10;&#10;&#10;Application Note None /docs/en/application-note/AN2369.pdf English documents 543850 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2369.pdf Using the Discrete Input/Output TPU Function (DIO) with the MPC500 Family /docs/en/application-note/AN2369.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Using the Discrete Input/Output TPU Function (DIO) with the MPC500 Family 543.9 KB AN2369 N 10j0G4zr /docs/en/application-note/AN2363.pdf 2003-01-09 10j0FWMY PSP 49 Oct 20, 2002 Application Note &#10;&#10;&#10;Application Note None /docs/en/application-note/AN2363.pdf English documents 581564 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2363.pdf Using the Frequency Measurement TPU Function (FQM) with theMPC500 Family /docs/en/application-note/AN2363.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Using the Frequency Measurement TPU Function (FQM) with theMPC500 Family 581.6 KB AN2363 N 10j0FWMY /docs/en/application-note/AN2370.pdf 2003-01-09 10j0GBXz PSP 50 Oct 20, 2002 Application Note &#13;&#10;&#13;&#10;Application Note None /docs/en/application-note/AN2370.pdf English documents 512097 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2370.pdf Using the Quadrature Decode TPU Function (QDEC) with theMPC500 Family /docs/en/application-note/AN2370.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Using the Quadrature Decode TPU Function (QDEC) with theMPC500 Family 512.1 KB AN2370 N 10j0GBXz /docs/en/application-note/AN2372.pdf 2003-01-09 10j0GNDZ PSP 51 Oct 20, 2002 Application Note &#10;&#10;&#10;Application Note None /docs/en/application-note/AN2372.pdf English documents 735316 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2372.pdf Using the Output Compare TPU Function (OC) with the MPC500Family /docs/en/application-note/AN2372.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Using the Output Compare TPU Function (OC) with the MPC500Family 735.3 KB AN2372 N 10j0GNDZ /docs/en/application-note/AN2368.pdf 2016-10-31 10j0G0fk PSP 52 Oct 20, 2002 Application Note &#13;&#10;&#13;&#10;Application Note None /docs/en/application-note/AN2368.pdf English documents 471564 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN2368.pdf Using the Hall Effect Decode (HALLD) TPU Function with the MPC500 Family /docs/en/application-note/AN2368.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Using the Hall Effect Decode (HALLD) TPU Function with the MPC500 Family 471.6 KB AN2368 N 10j0G0fk /docs/en/application-note/AN2373.pdf 2003-01-09 10j0GSQm PSP 53 Oct 20, 2002 Application Note &#13;&#10;&#13;&#10;Application Note None /docs/en/application-note/AN2373.pdf English documents 579068 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2373.pdf Using the Pulse Width Modulation TPU Function (PWM) with the MPC500 Family /docs/en/application-note/AN2373.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Using the Pulse Width Modulation TPU Function (PWM) with the MPC500 Family 579.1 KB AN2373 N 10j0GSQm /docs/en/application-note/AN2367.pdf 2016-10-31 10j0Fv1D PSP 54 Oct 20, 2002 Application Note &#10;&#10;&#10;Application Note None /docs/en/application-note/AN2367.pdf English documents 481291 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN2367.pdf Using the Multiphase Motor Commutation TPU Function (COMM)with the MPC500 Family /docs/en/application-note/AN2367.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Using the Multiphase Motor Commutation TPU Function (COMM)with the MPC500 Family 481.3 KB AN2367 N 10j0Fv1D /docs/en/application-note/AN2375.pdf 2003-01-09 10j0GfD8 PSP 55 Oct 20, 2002 Application Note &#13;&#10;&#13;&#10;Application Note None /docs/en/application-note/AN2375.pdf English documents 618645 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2375.pdf Using the Multichannel Pulse Width Modulation TPU Function (MCPWM) with the MPC500 Family /docs/en/application-note/AN2375.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Using the Multichannel Pulse Width Modulation TPU Function (MCPWM) with the MPC500 Family 618.6 KB AN2375 N 10j0GfD8 /docs/en/application-note/AN2127.pdf 2001-07-27 W996248372752 PSP 56 Mar 11, 2002 Application Note EMC Guidelines for MPC Based Automotive Powertrain Systems.This application note focuses on guidelines for reducing radiated emissions from MPC500-based powertrain systems. These guidelines are not a complete set of all known EMC techniques, instead they are some specific recommendations for MPC500-based systems. This application note should be used in conjunction with other more general sources of EMC guidelines. None /docs/en/application-note/AN2127.pdf English documents 1706762 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2127.pdf EMC Guidelines for MPC Based Automotive Powertrain Systems /docs/en/application-note/AN2127.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N EMC Guidelines for MPC Based Automotive Powertrain Systems 1.7 MB AN2127 N W996248372752 /docs/en/application-note/AN2192.pdf 2001-10-25 Q1004030389950 PSP 57 Oct 25, 2001 Application Note This application note explains the importance of determining data integrity in the dual-port TPU RAM module and how to calculate the signature value. None /docs/en/application-note/AN2192.pdf English documents 513665 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2192.pdf Detecting Errors in the Dual-Port TPU RAM (DPTRAM) Module /docs/en/application-note/AN2192.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Detecting Errors in the Dual-Port TPU RAM (DPTRAM) Module 513.7 KB AN2192 N Q1004030389950 /docs/en/application-note/AN2109.pdf 2001-07-27 M996247421922 PSP 58 Aug 13, 2001 Application Note MPC555 Interrupts None /docs/en/application-note/AN2109.pdf English documents 2943132 None 645036621402383989 2022-12-07 /docs/en/application-note/AN2109.pdf MPC555 Interrupts /docs/en/application-note/AN2109.pdf documents 645036621402383989 Application Note N en None N pdf 0 N MPC555 Interrupts 2.9 MB AN2109 N M996247421922 /docs/en/application-note/AN1821.pdf 2001-07-10 T994794258399 PSP 59 Jan 1, 1999 Application Note This application note presents a way to compress the eight Kbytes of exception vector table (according to the PowerPC architecture) into a 32-bit branch instruction (jump-table), allowing the compiler/linker to use this valuable space in on-chip memory. None /docs/en/application-note/AN1821.pdf English documents 695949 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1821.pdf AN1821 /docs/en/application-note/AN1821.pdf documents 645036621402383989 Application Note N en None N pdf 0 N AN1821 695.9 KB AN1821 N T994794258399 /docs/en/application-note/AN1776.pdf 2000-08-17 G966576858838 PSP 60 Jul 10, 1998 Application Note AN1776 Stereo Audio Transmission Over The CAN Bus Using The NXP MC68376 With TouCAN Module None /docs/en/application-note/AN1776.pdf English documents 1076030 None 645036621402383989 2022-12-07 /docs/en/application-note/AN1776.pdf AN1776/D Stereo Audio Transmission Over The CAN Bus Using The NXP<sup>&#174;</sup> Semiconductors MC68376 With TouCAN Module /docs/en/application-note/AN1776.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N AN1776/D Stereo Audio Transmission Over The CAN Bus Using The NXP<sup>&#174;</sup> Semiconductors MC68376 With TouCAN Module 1.1 MB AN1776 N G966576858838 アプリケーション・ノート・ソフトウェア 17 /docs/en/application-note-software/AN2367SW.zip 2003-01-21 10llc7Cy PSP 63 Jul 16, 2007 Application Note Software Software files for AN2367 (COMM) None /docs/en/application-note-software/AN2367SW.zip English documents 7209 None 789425793691620447 2022-12-07 /docs/en/application-note-software/AN2367SW.zip Software files for AN2367 (COMM) /docs/en/application-note-software/AN2367SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N Software files for AN2367 (COMM) 7.2 KB AN2367SW N 10llc7Cy /docs/en/application-note-software/AN2360SW.zip 2003-01-21 10llWxQ8 PSP 64 Jul 16, 2007 Application Note Software Software files for AN2360 (General TPU C functions) None /docs/en/application-note-software/AN2360SW.zip English documents 4770 None 789425793691620447 2022-12-07 /docs/en/application-note-software/AN2360SW.zip Software files for AN2360 (General TPU C functions) /docs/en/application-note-software/AN2360SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N Software files for AN2360 (General TPU C functions) 4.8 KB AN2360SW N 10llWxQ8 /docs/en/application-note-software/AN2368SW.zip 2003-01-21 10llcb4t PSP 65 Jul 16, 2007 Application Note Software Software files for AN2368 (HALLD) None /docs/en/application-note-software/AN2368SW.zip English documents 8762 None 789425793691620447 2022-12-07 /docs/en/application-note-software/AN2368SW.zip Software files for AN2368 (HALLD) /docs/en/application-note-software/AN2368SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N Software files for AN2368 (HALLD) 8.8 KB AN2368SW N 10llcb4t /docs/en/application-note-software/AN2371SW.zip 2003-01-21 10llfMtF PSP 66 Jul 16, 2007 Application Note Software Software files for AN2371 (UART) None /docs/en/application-note-software/AN2371SW.zip English documents 5399 None 789425793691620447 2022-12-07 /docs/en/application-note-software/AN2371SW.zip Software files for AN2371 (UART) /docs/en/application-note-software/AN2371SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N Software files for AN2371 (UART) 5.4 KB AN2371SW N 10llfMtF /docs/en/application-note-software/AN2366SW.zip 2003-01-21 10llbR7X PSP 67 Jul 16, 2007 Application Note Software Software files for AN2366 (NITC) None /docs/en/application-note-software/AN2366SW.zip English documents 6914 None 789425793691620447 2022-12-07 /docs/en/application-note-software/AN2366SW.zip Software files for AN2366 (NITC) /docs/en/application-note-software/AN2366SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N Software files for AN2366 (NITC) 6.9 KB AN2366SW N 10llbR7X /docs/en/application-note-software/AN2372SW.zip 2003-01-21 10llfx5B PSP 68 Jul 16, 2007 Application Note Software Software files for AN2372 (OC) None /docs/en/application-note-software/AN2372SW.zip English documents 19100 None 789425793691620447 2022-12-07 /docs/en/application-note-software/AN2372SW.zip Software files for AN2372 (OC) /docs/en/application-note-software/AN2372SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N Software files for AN2372 (OC) 19.1 KB AN2372SW N 10llfx5B /docs/en/application-note-software/AN2370SW.zip 2016-10-31 10lldt69 PSP 69 Aug 30, 2006 Application Note Software Software files for AN2370 (QDEC) Click-Thru Software Licensing Agreement-No Registration /docs/en/application-note-software/AN2370SW.zip English documents 8867 1395958162559706127527 789425793691620447 2023-10-11 /webapp/sps/download/license.jsp?colCode=AN2370SW&lang_cd=ja Software files for AN2370 (QDEC) /docs/en/application-note-software/AN2370SW.zip documents 789425793691620447 Application Note Software N en None zip 0 N Software files for AN2370 (QDEC) 8.9 KB AN2370SW N 10lldt69 /docs/en/application-note-software/AN2373SW.zip 2016-10-31 10llgcwT PSP 70 Aug 30, 2006 Application Note Software Software files for AN2373 (PWM) Click-Thru Software Licensing Agreement-No Registration /docs/en/application-note-software/AN2373SW.zip English documents 11556 1395958162559706127527 789425793691620447 2023-10-11 /webapp/sps/download/license.jsp?colCode=AN2373SW&lang_cd=ja Software files for AN2373 (PWM) /docs/en/application-note-software/AN2373SW.zip documents 789425793691620447 Application Note Software N en None zip 0 N Software files for AN2373 (PWM) 11.6 KB AN2373SW N 10llgcwT /docs/en/application-note-software/AN2365SW.zip 2016-10-31 10llZvnY PSP 71 Aug 30, 2006 Application Note Software Software files for AN2365 (PTA) Click-Thru Software Licensing Agreement-No Registration /docs/en/application-note-software/AN2365SW.zip English documents 11362 1395958162559706127527 789425793691620447 2023-10-11 /webapp/sps/download/license.jsp?colCode=AN2365SW&lang_cd=ja Software files for AN2365 (PTA) /docs/en/application-note-software/AN2365SW.zip documents 789425793691620447 Application Note Software N en None zip 0 N Software files for AN2365 (PTA) 11.4 KB AN2365SW N 10llZvnY /docs/en/application-note-software/AN2374SW.zip 2016-10-31 10llhGcW PSP 72 Aug 30, 2006 Application Note Software Software files for AN2374 (QOM) Click-Thru Software Licensing Agreement-No Registration /docs/en/application-note-software/AN2374SW.zip English documents 18665 1395958162559706127527 789425793691620447 2023-10-11 /webapp/sps/download/license.jsp?colCode=AN2374SW&lang_cd=ja Software files for AN2374 (QOM) /docs/en/application-note-software/AN2374SW.zip documents 789425793691620447 Application Note Software N en None zip 0 N Software files for AN2374 (QOM) 18.7 KB AN2374SW N 10llhGcW /docs/en/application-note-software/AN2364SW.zip 2016-10-31 10llZHrj PSP 73 Aug 30, 2006 Application Note Software Software files for AN2364 (TSM) Click-Thru Software Licensing Agreement-No Registration /docs/en/application-note-software/AN2364SW.zip English documents 28716 1395958162559706127527 789425793691620447 2023-10-11 /webapp/sps/download/license.jsp?colCode=AN2364SW&lang_cd=ja Software files for AN2364 (TSM) /docs/en/application-note-software/AN2364SW.zip documents 789425793691620447 Application Note Software N en None zip 0 N Software files for AN2364 (TSM) 28.7 KB AN2364SW N 10llZHrj /docs/en/application-note-software/AN2363SW.zip 2016-10-31 10llYVCn PSP 74 Aug 30, 2006 Application Note Software Software files for AN2363 (FQM) Click-Thru Software Licensing Agreement-No Registration /docs/en/application-note-software/AN2363SW.zip English documents 37898 1395958162559706127527 789425793691620447 2023-10-11 /webapp/sps/download/license.jsp?colCode=AN2363SW&lang_cd=ja Software files for AN2363 (FQM) /docs/en/application-note-software/AN2363SW.zip documents 789425793691620447 Application Note Software N en None zip 0 N Software files for AN2363 (FQM) 37.9 KB AN2363SW N 10llYVCn /docs/en/application-note-software/AN2362SW.zip 2016-10-31 10llXVpk PSP 75 Aug 30, 2006 Application Note Software Software files for AN2362 (FQD) Click-Thru Software Licensing Agreement-No Registration /docs/en/application-note-software/AN2362SW.zip English documents 11078 1395958162559706127527 789425793691620447 2023-10-11 /webapp/sps/download/license.jsp?colCode=AN2362SW&lang_cd=ja Software files for AN2362 (FQD) /docs/en/application-note-software/AN2362SW.zip documents 789425793691620447 Application Note Software N en None zip 0 N Software files for AN2362 (FQD) 11.1 KB AN2362SW N 10llXVpk /docs/en/application-note-software/AN2369SW.zip 2016-10-31 10lldJGp PSP 76 Aug 30, 2006 Application Note Software Software files for AN2369 (DIO) Click-Thru Software Licensing Agreement-No Registration /docs/en/application-note-software/AN2369SW.zip English documents 11828 1395958162559706127527 789425793691620447 2023-10-11 /webapp/sps/download/license.jsp?colCode=AN2369SW&lang_cd=ja Software files for AN2369 (DIO) /docs/en/application-note-software/AN2369SW.zip documents 789425793691620447 Application Note Software N en None zip 0 N Software files for AN2369 (DIO) 11.8 KB AN2369SW N 10lldJGp /docs/en/application-note-software/AN2375SW.zip 2003-01-21 10llhkRS PSP 77 Jun 25, 2003 Application Note Software Software files for AN2375 (MCPWM) None /docs/en/application-note-software/AN2375SW.zip English documents 11078 None 789425793691620447 2022-12-07 /docs/en/application-note-software/AN2375SW.zip Software files for AN2375 (MCPWM) /docs/en/application-note-software/AN2375SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N Software files for AN2375 (MCPWM) 11.1 KB AN2375SW N 10llhkRS /secured/assets/documents/en/application-note-software/AN2192SW.zip 2016-10-31 C1004030415104 PSP 78 Oct 25, 2001 Application Note Software Software Registration With Click-Thru Software Licensing Agreement /secured/assets/documents/en/application-note-software/AN2192SW.zip English documents 6789 1395958162559706127527 789425793691620447 2022-12-07 Y /webapp/Download?colCode=AN2192SW&appType=license&lang_cd=ja Software for use in Detecting Errors in the Dual-Port TPU RAM (DPTRAM) Module /secured/assets/documents/en/application-note-software/AN2192SW.zip documents 789425793691620447 Application Note Software N en Extended zip 0 Y N Software for use in Detecting Errors in the Dual-Port TPU RAM (DPTRAM) Module 6.8 KB AN2192SW N C1004030415104 /secured/assets/documents/en/application-note-software/AN2109SW.zip 2016-10-31 M1003531988848 PSP 79 May 10, 2000 Application Note Software Software files for AN2109 Registration With Click-Thru Software Licensing Agreement /secured/assets/documents/en/application-note-software/AN2109SW.zip English documents 339275 1395958162559706127527 789425793691620447 2022-12-07 Y /webapp/Download?colCode=AN2109SW&appType=license&lang_cd=ja Software files for AN2109 zipped /secured/assets/documents/en/application-note-software/AN2109SW.zip documents 789425793691620447 Application Note Software N en Extended zip 0 Y N Software files for AN2109 zipped 339.3 KB AN2109SW N M1003531988848 エラッタ 3 /docs/en/errata/MPC563BCE.pdf 2002-11-08 G1036770146730 PSP 85 Nov 3, 2010 Errata MPC563 Revision B Chip Errata None /docs/en/errata/MPC563BCE.pdf English documents 69575 None 155452329886410597 2022-12-07 /docs/en/errata/MPC563BCE.pdf MPC563 Revision B Chip Errata /docs/en/errata/MPC563BCE.pdf documents 155452329886410597 Errata N en None Y pdf 11 N MPC563 Revision B Chip Errata 69.6 KB MPC563BCE N G1036770146730 /docs/en/errata/MPC563CCE.pdf 2004-03-23 1080072363060700871002 PSP 86 Nov 3, 2010 Errata MPC563 Rev C Chip Errata None /docs/en/errata/MPC563CCE.pdf English documents 57963 None 155452329886410597 2022-12-07 /docs/en/errata/MPC563CCE.pdf MPC563 Revision C Chip Errata /docs/en/errata/MPC563CCE.pdf documents 155452329886410597 Errata N en None Y pdf 5 N MPC563 Revision C Chip Errata 58.0 KB MPC563CCE N 1080072363060700871002 /docs/en/errata/MPC563ACE.pdf 2001-12-20 A1008862483668 PSP 87 Jan 2, 2007 Errata MPC563 Rev A Chip Errata None /docs/en/errata/MPC563ACE.pdf English documents 68056 None 155452329886410597 2022-12-07 /docs/en/errata/MPC563ACE.pdf MPC563 Revision A Chip Errata /docs/en/errata/MPC563ACE.pdf documents 155452329886410597 Errata N en None Y pdf 8.3 N MPC563 Revision A Chip Errata 68.1 KB MPC563ACE N A1008862483668 エンジニアリング・ブリテン 5 /docs/en/engineering-bulletin/EB00877.pdf 2019-02-14 1550136400774719898938 PSP 80 Feb 13, 2019 Technical Notes EB00877, This engineering bulletin provides guidance on programming Priority(PRI) bits of the Interrupt Controller Current Priority Register(INTC_CPRn[PRI]) to ensure coherency of shared resource between Interrupt Services Routines(ISRs) for the MPC56xx and MPC57xx family of devices. None /docs/en/engineering-bulletin/EB00877.pdf English documents 131838 None 389245547230346745 2022-12-07 N /docs/en/engineering-bulletin/EB00877.pdf EB00877, Programming Priority Bits in the Interrupt Controller Current Priority Register for MPC56xx and MPC57xx Families /docs/en/engineering-bulletin/EB00877.pdf documents 389245547230346745 Technical Notes N en None Y pdf 0 N N EB00877, Programming Priority Bits in the Interrupt Controller Current Priority Register for MPC56xx and MPC57xx Families 131.8 KB EB00877 N 1550136400774719898938 /docs/en/engineering-bulletin/EB00855.pdf 2017-05-25 1495699633841705738852 PSP 81 May 24, 2017 Technical Notes EB00855, This engineering bulletin provides guidance on programming reserved register bits for the MPC55xx, MPC56xx, and MPC57xx families of devices. None /docs/en/engineering-bulletin/EB00855.pdf English documents 162731 None 389245547230346745 2022-12-07 N /docs/en/engineering-bulletin/EB00855.pdf EB00855, Programming Reserved Register Bits for MPC55xx, MPC56xx, and MPC57xx Families /docs/en/engineering-bulletin/EB00855.pdf documents 389245547230346745 Technical Notes N en None pdf 0 N N EB00855, Programming Reserved Register Bits for MPC55xx, MPC56xx, and MPC57xx Families 162.7 KB EB00855 N 1495699633841705738852 /secured/assets/documents/en/engineering-bulletin/EB793.pdf 2016-10-31 1369851108709706895647 PSP 82 May 28, 2013 Technical Notes EB793: This document, developed in response to customer inquiries, describes Motor Industry Software Reliability Association (MISRA&#8482;) compliance in the C Language header files provided by NXP for the automotive market. Registration without Disclaimer /secured/assets/documents/en/engineering-bulletin/EB793.pdf English documents 197012 None 389245547230346745 2024-07-15 Y /webapp/Download?colCode=EB793&lang_cd=ja MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin /secured/assets/documents/en/engineering-bulletin/EB793.pdf documents 389245547230346745 Technical Notes N en Extended Y pdf 1 Y N MISRA Compliance in Freescale Automotive C Language Header Files - Engineering Bulletin 197.0 KB EB793 N 1369851108709706895647 /docs/en/engineering-bulletin/EB634.pdf 2004-02-04 1075934178354720509603 PSP 83 Feb 4, 2004 Technical Notes This Engineering Note attempts to clarify documentation on the TouCAN receive process. None /docs/en/engineering-bulletin/EB634.pdf English documents 258423 None 389245547230346745 2022-12-07 /docs/en/engineering-bulletin/EB634.pdf TouCAN Receive Process Clarification /docs/en/engineering-bulletin/EB634.pdf documents 389245547230346745 Technical Notes N en None N pdf 0 N TouCAN Receive Process Clarification 258.4 KB EB634 N 1075934178354720509603 /docs/en/engineering-bulletin/EB633.pdf 2004-02-02 1075736936389709136574 PSP 84 Jan 30, 2004 Technical Notes In some cases of using the MDASM in OPWM mode, when modifying the leading edge to adjust the duty cycle of the PWM signal, the output of the OPWM channel will remain asserted when it is expected to be negated. This engineering note explains how this effect occurs and provides a potential work around. None /docs/en/engineering-bulletin/EB633.pdf English documents 262968 None 389245547230346745 2022-12-07 /docs/en/engineering-bulletin/EB633.pdf MDASM OPWM Software Considerations to Avoid Missing Pulses /docs/en/engineering-bulletin/EB633.pdf documents 389245547230346745 Technical Notes N en None N pdf 0 N MDASM OPWM Software Considerations to Avoid Missing Pulses 263.0 KB EB633 N 1075736936389709136574 サポート情報 3 /docs/en/supporting-information/MPC561EVBBOM_XLS.xls 2016-10-31 1071865686219721885088 PSP 93 Dec 19, 2003 Supporting Information None /docs/en/supporting-information/MPC561EVBBOM_XLS.xls English documents 91648 None 371282830530968666 2022-12-07 N /docs/en/supporting-information/MPC561EVBBOM_XLS.xls MPC561/MPC563 EVB Bill of Materials /docs/en/supporting-information/MPC561EVBBOM_XLS.xls documents 371282830530968666 Supporting Information N en None Y xls 0 N N MPC561/MPC563 EVB Bill of Materials 91.6 KB MPC561EVBBOM_XLS N 1071865686219721885088 /docs/en/supporting-information/MPC561EVBBOM.pdf 2003-12-19 1071862172932693985885 PSP 94 Dec 19, 2003 Supporting Information None /docs/en/supporting-information/MPC561EVBBOM.pdf English documents 17237 None 371282830530968666 2022-12-07 /docs/en/supporting-information/MPC561EVBBOM.pdf MPC561/MPC563 Bill of Materials (pdf) /docs/en/supporting-information/MPC561EVBBOM.pdf documents 371282830530968666 Supporting Information N en None N pdf 0 N MPC561/MPC563 Bill of Materials (pdf) 17.2 KB MPC561EVBBOM N 1071862172932693985885 /docs/en/supporting-information/MPC500_MEMORY_MAP.pdf 2003-06-03 11KvYC40 PSP 95 Mar 1, 2003 Supporting Information None /docs/en/supporting-information/MPC500_MEMORY_MAP.pdf English documents 183856 None 371282830530968666 2022-12-07 /docs/en/supporting-information/MPC500_MEMORY_MAP.pdf MPC500 Memory Map /docs/en/supporting-information/MPC500_MEMORY_MAP.pdf documents 371282830530968666 Supporting Information N en None N pdf 3 N MPC500 Memory Map 183.9 KB MPC500_MEMORY_MAP N 11KvYC40 データ・シート 1 /docs/en/data-sheet/MPC561RM.pdf 2001-07-09 B994707374025 PSP 1 Aug 11, 2005 Data Sheet MPC561/MPC563 Reference Manual and Data Sheet&#13;&#10;(Additional Devices Supported: MPC562/MPC564). None /docs/en/data-sheet/MPC561RM.pdf English documents 10830232 None 980000996212993340 2022-12-07 /docs/en/data-sheet/MPC561RM.pdf MPC561/MPC563 Reference Manual and Data Sheet (Additional Devices Supported: MPC562/MPC564) /docs/en/data-sheet/MPC561RM.pdf documents 980000996212993340 Data Sheet N en None Y pdf 1.2 N MPC561/MPC563 Reference Manual and Data Sheet (Additional Devices Supported: MPC562/MPC564) MPC561CVR40,MPC561CZP40,MPC561MVR56,MPC561MZP56,MPC563CVR40,MPC563CZP40,MPC563MVR56,MPC563MVR66,MPC563MZP56,MPC563MZP66,MPC564CZP40,MPC564CZP66,MPC564MZP56,MPCZ563MZP56,MPCZ563MZP66,SC512856MZP40,SC512856MZP56,SCC512857,SCCZ561DR2,SCCZ562C,SPC561MVR56D,SPC561MZP56D,SPC564E6MZP56,SPCZ561MVR56D,SPCZ562MZPDH56,SPCZ563MZP56C,SPCZ563MZP66C 10.8 MB MPC561RM N B994707374025 ファクト・シート 4 /docs/en/fact-sheet/AIRBAGFS.pdf 2016-10-31 1208540600963727452987 PSP 88 Sep 12, 2016 Fact Sheet AIRBAGFS: Freescale is a leading semiconductor supplier for next-generation airbag applications with custom and standard microcontrollers (MCU), analog and sensor products. We offer solutions for point-to-point and bus-based satellite interface architectures with the established distributed system interface (DSI) as well as the emerging peripheral sensor interface (PSI5) architectures. None /docs/en/fact-sheet/AIRBAGFS.pdf English documents 366678 None 736675474163315314 2025-02-24 N /docs/en/fact-sheet/AIRBAGFS.pdf Automotive Airbag Safety Systems - Fact Sheet /docs/en/fact-sheet/AIRBAGFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 9 N N Automotive Airbag Safety Systems - Fact Sheet 366.7 KB AIRBAGFS N 1208540600963727452987 /docs/en/fact-sheet/USBMLPPCBDMFS.pdf 2016-10-31 1196293360198715443408 PSP 89 Nov 27, 2007 Fact Sheet None /docs/en/fact-sheet/USBMLPPCBDMFS.pdf English documents 243824 None 736675474163315314 2022-12-07 N /docs/en/fact-sheet/USBMLPPCBDMFS.pdf USB-ML-PPCBDM Fact Sheet /docs/en/fact-sheet/USBMLPPCBDMFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf A N N USB-ML-PPCBDM Fact Sheet 243.8 KB USBMLPPCBDMFS N 1196293360198715443408 /docs/en/fact-sheet/DEVTOOLSFACT.pdf 2001-11-07 S1005155204032 PSP 90 Oct 4, 2002 Fact Sheet The NXP MPC500 family of 32-bit embedded controllers is supported by a comprehensive development environment that encompasses advanced hardware and software tools to meet the needs of any developer. None /docs/en/fact-sheet/DEVTOOLSFACT.pdf English documents 321144 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/DEVTOOLSFACT.pdf THE MPC500 FAMILY OF 32-BIT EMBEDDED CONTROLLERS - Fact Sheet /docs/en/fact-sheet/DEVTOOLSFACT.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 1 N THE MPC500 FAMILY OF 32-BIT EMBEDDED CONTROLLERS - Fact Sheet 321.1 KB DEVTOOLSFACT N S1005155204032 /docs/en/fact-sheet/MPC500FACT.pdf 2002-07-03 F1025722186663 PSP 91 Jul 3, 2002 Fact Sheet Specification Sheet MPC500 Family None /docs/en/fact-sheet/MPC500FACT.pdf English documents 319960 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/MPC500FACT.pdf Specification Sheet MPC500 Family /docs/en/fact-sheet/MPC500FACT.pdf documents 736675474163315314 Fact Sheet N en None N pdf 2 N Specification Sheet MPC500 Family 320.0 KB MPC500FACT N F1025722186663 ユーザ・ガイド 2 /docs/en/user-guide/MPC561EVBUM.pdf 2003-12-19 1071859487666711782114 PSP 61 Dec 19, 2003 User Guide MPC561/3 Autotemp Evaluation Board Users Manual None /docs/en/user-guide/MPC561EVBUM.pdf English documents 1144935 None 132339537837198660 2022-12-07 /docs/en/user-guide/MPC561EVBUM.pdf MPC561/MPC563 Autotemp Evaluation Board Users Manual /docs/en/user-guide/MPC561EVBUM.pdf documents 132339537837198660 User Guide N en None N pdf 1 N MPC561/MPC563 Autotemp Evaluation Board Users Manual 1.1 MB MPC561EVBUM N 1071859487666711782114 /docs/en/user-guide/MPC564EVBUM.pdf 2002-09-27 D1033142033953 PSP 62 Mar 1, 2003 User Guide MPC564 based evaluation board used for development and test of microcontroller. None /docs/en/user-guide/MPC564EVBUM.pdf English documents 1706520 None 132339537837198660 2022-12-07 /docs/en/user-guide/MPC564EVBUM.pdf MPC564EVBUM /docs/en/user-guide/MPC564EVBUM.pdf documents 132339537837198660 User Guide N en None N pdf 1.2 N MPC564EVBUM 1.7 MB MPC564EVBUM N D1033142033953 リファレンス・マニュアル 3 /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf 2016-10-31 E966578690432 PSP 2 Oct 17, 2005 Reference Manual Programming Environments Manual for 32-Bit Implementations of the Power Architecture. Registration without Disclaimer /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf English documents 6125455 None 500633505221135046 2022-12-07 Y /webapp/Download?colCode=MPCFPE32B&lang_cd=ja Programming Environments Manual for 32-Bit Implementations of the Power Architecture /secured/assets/documents/en/reference-manual/MPCFPE32B.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 3 Y N Programming Environments Manual for 32-Bit Implementations of the Power Architecture 6.1 MB MPCFPE32B N E966578690432 /secured/assets/documents/en/reference-manual/RCPURM_ZIP.zip 2016-10-31 B993922390761 PSP 3 Jun 28, 2001 Reference Manual Registration without Disclaimer /secured/assets/documents/en/reference-manual/RCPURM_ZIP.zip English documents 2558365 None 500633505221135046 2022-12-07 Y /webapp/Download?colCode=RCPURM_ZIP&lang_cd=ja MPC500 Family RCPU Reference Manual /secured/assets/documents/en/reference-manual/RCPURM_ZIP.zip documents 500633505221135046 Reference Manual N en Extended Y zip 1 Y N MPC500 Family RCPU Reference Manual 2.6 MB RCPURM_ZIP N B993922390761 /secured/assets/documents/en/reference-manual/RCPURM.pdf 2016-10-31 K966578751824 PSP 4 Jun 28, 2001 Reference Manual MPC500 Family RCPU Reference Manual Registration without Disclaimer /secured/assets/documents/en/reference-manual/RCPURM.pdf English documents 8157679 None 500633505221135046 2022-12-07 Y /webapp/Download?colCode=RCPURM&lang_cd=ja MPC500 Family RCPU Reference Manual /secured/assets/documents/en/reference-manual/RCPURM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 1 Y N MPC500 Family RCPU Reference Manual 8.2 MB RCPURM N K966578751824 製品概要 1 /docs/en/product-brief/NVMGMDPB.pdf 2016-10-31 S1008347362378 PSP 92 Aug 13, 2002 Product Brief Product Brief None /docs/en/product-brief/NVMGMDPB.pdf English documents 221193 None 899114358132306053 2023-08-09 N /docs/en/product-brief/NVMGMDPB.pdf General Market Driver (GMD) Flash Program/Erase Software /docs/en/product-brief/NVMGMDPB.pdf documents 899114358132306053 Product Brief N en None Y pdf 0.1 N N General Market Driver (GMD) Flash Program/Erase Software 221.2 KB NVMGMDPB N S1008347362378 true Y Products
