ICODE® SLIX2 NFC Forum Type 5 Tag with Originality Signature

SL2S2602 アクティブ

Please check the new online NFC Antenna Tool for tag and reader devices.

The ICODE SLIX2 IC is the newest member of NXP’s SLIX product family. The chip is fully backward compatibility compatible to SLIX and offers an increased user memory size, along with new outstanding features and performance.

Contactless energy and data transfer

Whenever connected to a very simple and easy-to-produce type of antenna, the ICODE SLIX2 IC can be operated without line of sight up to a distance of 1.5 m (gate width). No battery needed.

Anti-collision

An intelligent anti-collision function enables several tags to operate in the field simultaneously. The anti-collision algorithm selects each tag individually and ensures that the execution of a transaction with a selected tag is performed correctly without data corruption resulting from other tags in the field.

もっと見る

ブロック図

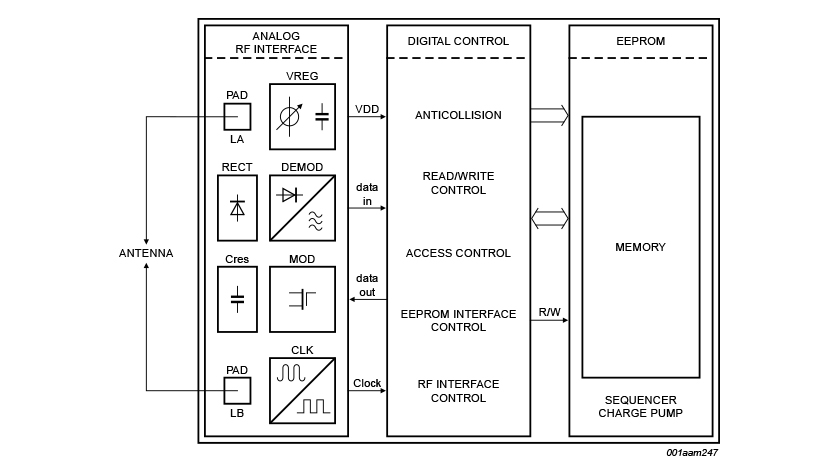

Block diagram of ICODE SLIX2

Block diagram of ICODE SLIX2
図を取得する PDF

Features

ICODE SLIX2 RF interface (ISO/IEC 15693)

  • Contactless transmission of data and supply energy (no battery needed)
  • Operating distance: up to 1.5 m (depending on antenna geometry)
  • Operating frequency: 13.56 MHz (ISM, world-wide license freely available)
  • Fast data transfer: up to 53 kbit/s
  • High data integrity: 16-bit CRC, framing
  • True anti-collision
  • Electronic Article Surveillance (EAS)
  • Application Family Identifier (AFI) supported
  • Data Storage Format Identifier (DSFID)
  • ENABLE PRIVACY command with 32-bit Privacy password
  • DESTROY SLIX2 command with 32-bit Destroy password
  • Additional fast anti-collision read
  • Persistent quiet mode to enable faster inventory speed
  • Write distance equal to read distance

EEPROM

  • 2560 bits user memory, organized in 80 blocks of 4 bytes each (last block reserved for counter feature)
  • 50 years data retention
  • Write endurance of 100000 cycles

Security

  • Unique identifier for each device (8 byte)
  • 32 byte originality signature
  • Lock mechanism for each user memory block (write protection)
  • Lock mechanism for DSFID, AFI, EAS
  • Password (32-bit) protected memory management for Read access
  • Password (32-bit) protected memory management for Write access
  • Password (32-bit) protected Label Destroy
  • Password (32-bit) protected Privacy Mode
  • Password (32-bit) protected EAS and AFI functionality
  • 16 bit counter (optionally password protected with the read and write password)

購入/パラメータ

1 結果

マッチしていない 0 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

製品カテゴリー

User Memory Size (Bit)

Data Retention

SL2S2602FUD
データ・シート

アクティブ

ICODE SLIX 2

2528

50
