CAN Transceiver for 24 V Systems

PCA82C251T
NRND

The PCA82C251 is the interface between a CAN protocol controller and the physical bus. The device provides differential transmit capability to the bus and differential receive capability to the CAN controller.

製品画像を見る

製品詳細

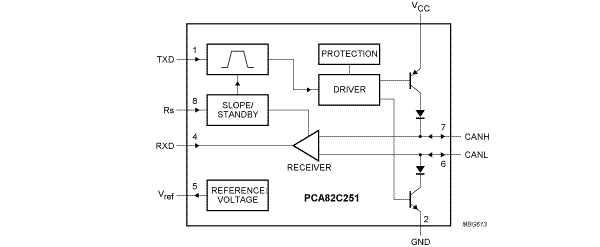

ブロック図

PCA82C251T

図を取得する PDF

Features

Key Features

  • Fully compatible with the “ISO 11898-24 V” standard
  • Slope control to reduce Radio Frequency Interference (RFI)
  • Thermally protected
  • Short-circuit proof to battery and ground in 24 V powered systems
  • Low-current standby mode
  • An unpowered node does not disturb the bus lines
  • At least 110 nodes can be connected
  • High speed (up to 1 MBd)
  • High immunity against electromagnetic interference
  • High-speed applications (up to 1 MBd) in trucks and busses

購入/パラメータ

1 結果

除外 1 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

Recommended Orderable Part Number

New Generation Recommendation

MCU I/O Interface (V)

Low Power Modes

データ・レート（最大）（Kbps）

パッケージタイプ

CAN Channels

製品カテゴリー

電源電圧 [最小 - 最大] (V)

Voltage on bus pins [Min-Max] (V)

VIO Option Available

汎用I/O

Supported standards

Product Application

PCA82C251T
データ・シート

新規採用非推奨

PCA82C251T/YM,118

TJA1044GT

5.0

Standby Mode

1000.0

SO8

1

High-Speed CAN

4.5 to 5.5

-36 to 36

N

8

ISO-11898-2

Industrial

N true 0 PSPPCA82C251Tja 9 アプリケーション・ノート Application Note t789 4 サポート情報 Supporting Information t531 2 データ・シート Data Sheet t520 1 パッケージ情報 Packing Information t935 1 ja ja ja データ・シート Data Sheet 1 1 4.01 English 1442062791891706187903 PSP 113.0 KB None None documents None 1442062791891706187903 /docs/en/data-sheet/PCA82C251.pdf 113000 /docs/en/data-sheet/PCA82C251.pdf PCA82C251 documents N 2015-09-12 CAN transceiver for 24 V systems /docs/en/data-sheet/PCA82C251.pdf /docs/en/data-sheet/PCA82C251.pdf Data Sheet N 980000996212993340 2022-12-07 pdf en Feb 11, 2016 980000996212993340 Data Sheet Y N CAN transceiver for 24 V systems アプリケーション・ノート Application Note 4 2 1.0 English 1442087698386719453023 PSP 446.0 KB None None documents None 1442087698386719453023 /docs/en/application-note/AN10211.pdf 446038 /docs/en/application-note/AN10211.pdf AN10211 documents N 2016-10-08 TJA1040 high speed CAN transceiver /docs/en/application-note/AN10211.pdf /docs/en/application-note/AN10211.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 10, 2006 645036621402383989 Application Note N TJA1040 high speed CAN transceiver PDF 3 1.0 English 1442089353951732188372 PSP 804.6 KB None None documents None 1442089353951732188372 /docs/en/application-note/AN00094.pdf 804601 /docs/en/application-note/AN00094.pdf AN00094 documents N 2016-10-08 TJA1041/1041A high speed CAN transceiver /docs/en/application-note/AN00094.pdf /docs/en/application-note/AN00094.pdf Application Note N 645036621402383989 2022-12-07 pdf en Nov 8, 2006 645036621402383989 Application Note N TJA1041/1041A high speed CAN transceiver PDF 4 1.0 English 1442088721393697854689 PSP 531.1 KB None None documents None 1442088721393697854689 /docs/en/application-note/AN00020.pdf 531149 /docs/en/application-note/AN00020.pdf AN00020 documents N N 2016-10-08 TJA1050 high speed CAN transceiver /docs/en/application-note/AN00020.pdf /docs/en/application-note/AN00020.pdf Application Note N 645036621402383989 2024-05-29 pdf N en Dec 2, 2002 645036621402383989 Application Note Y N TJA1050 high speed CAN transceiver PDF 5 1.0 English 1442087839575707429047 PSP 132.0 KB None None documents None 1442087839575707429047 /docs/en/application-note/AN96116.pdf 132000 /docs/en/application-note/AN96116.pdf AN96116 documents N 2015-09-12 PCA82C250/251 CAN Transceiver /docs/en/application-note/AN96116.pdf /docs/en/application-note/AN96116.pdf Application Note N 645036621402383989 2022-12-07 pdf en Mar 11, 1998 645036621402383989 Application Note Y N PCA82C250/251 CAN Transceiver パッケージ情報 Package Information 1 6 1.1 English Outline and soldering footprint drawings of SO8 package 1455079789802691427607 PSP 175.4 KB None None documents None 1455079789802691427607 /docs/en/package-information/SOT96-1.pdf 175406 /docs/en/package-information/SOT96-1.pdf SOT96-1 documents N N 2016-10-08 Plastic, small outline package; 8 terminals; 1.27 mm pitch; 4.9 mm x 3.9 mm x 1.75 mm body /docs/en/package-information/SOT96-1.pdf /docs/en/package-information/SOT96-1.pdf Package Information N 302435339416912908 2024-10-24 pdf N en Jan 9, 2017 302435339416912908 Package Information Y N Plastic, small outline package; 8 terminals; 1.27 mm pitch; 4.9 mm x 3.9 mm x 1.75 mm body PDF パッケージ情報 Packing Information 1 7 2.0 English 1442131194585714093488 PSP 237.4 KB Registration without Disclaimer None documents Extended 1442131194585714093488 /secured/assets/documents/en/packing/SOT96-1_118.pdf 237384 /secured/assets/documents/en/packing/SOT96-1_118.pdf SOT96-1_118 documents Y N 2013-04-19 SO8; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118 /webapp/Download?colCode=SOT96-1_118&lang_cd=ja /secured/assets/documents/en/packing/SOT96-1_118.pdf Packing Information N 145666923842250347 2024-03-13 pdf Y en Apr 19, 2013 145666923842250347 Packing Information Y N SO8; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118 サポート情報 Supporting Information 2 8 1.0 English Footprint for Wave Soldering 1442126382106720903168 PSP 8.3 KB None None documents None 1442126382106720903168 /docs/en/supporting-information/SO-SOJ-WAVE.pdf 8260 /docs/en/supporting-information/SO-SOJ-WAVE.pdf SO-SOJ-WAVE documents N N 2013-07-15 Footprint for Wave Soldering /docs/en/supporting-information/SO-SOJ-WAVE.pdf /docs/en/supporting-information/SO-SOJ-WAVE.pdf Supporting Information N 371282830530968666 2024-10-21 pdf N en Oct 8, 2009 371282830530968666 Supporting Information Y N Footprint for Wave Soldering 9 1.0 English Footprint for reflow soldering 1442122730480711091281 PSP 8.8 KB None None documents None 1442122730480711091281 /docs/en/supporting-information/SO-SOJ-REFLOW.pdf 8792 /docs/en/supporting-information/SO-SOJ-REFLOW.pdf SO-SOJ-REFLOW documents N N 2013-07-15 Footprint for reflow soldering /docs/en/supporting-information/SO-SOJ-REFLOW.pdf /docs/en/supporting-information/SO-SOJ-REFLOW.pdf Supporting Information N 371282830530968666 2024-10-21 pdf N en Oct 8, 2009 371282830530968666 Supporting Information Y N Footprint for reflow soldering false 0 PCA82C251T downloads ja true 1 Y PSP アプリケーション・ノート 4 /docs/en/application-note/AN10211.pdf 2016-10-08 1442087698386719453023 PSP 2 Nov 10, 2006 Application Note PDF None /docs/en/application-note/AN10211.pdf English documents 446038 None 645036621402383989 2022-12-07 /docs/en/application-note/AN10211.pdf TJA1040 high speed CAN transceiver /docs/en/application-note/AN10211.pdf documents 645036621402383989 Application Note N en None pdf 1.0 N TJA1040 high speed CAN transceiver 446.0 KB AN10211 N 1442087698386719453023 /docs/en/application-note/AN00094.pdf 2016-10-08 1442089353951732188372 PSP 3 Nov 8, 2006 Application Note PDF None /docs/en/application-note/AN00094.pdf English documents 804601 None 645036621402383989 2022-12-07 /docs/en/application-note/AN00094.pdf TJA1041/1041A high speed CAN transceiver /docs/en/application-note/AN00094.pdf documents 645036621402383989 Application Note N en None pdf 1.0 N TJA1041/1041A high speed CAN transceiver 804.6 KB AN00094 N 1442089353951732188372 /docs/en/application-note/AN00020.pdf 2016-10-08 1442088721393697854689 PSP 4 Dec 2, 2002 Application Note PDF None /docs/en/application-note/AN00020.pdf English documents 531149 None 645036621402383989 2024-05-29 N /docs/en/application-note/AN00020.pdf TJA1050 high speed CAN transceiver /docs/en/application-note/AN00020.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N N TJA1050 high speed CAN transceiver 531.1 KB AN00020 N 1442088721393697854689 /docs/en/application-note/AN96116.pdf 2015-09-12 1442087839575707429047 PSP 5 Mar 11, 1998 Application Note None /docs/en/application-note/AN96116.pdf English documents 132000 None 645036621402383989 2022-12-07 /docs/en/application-note/AN96116.pdf PCA82C250/251 CAN Transceiver /docs/en/application-note/AN96116.pdf documents 645036621402383989 Application Note N en None Y pdf 1.0 N PCA82C250/251 CAN Transceiver 132.0 KB AN96116 N 1442087839575707429047 サポート情報 2 /docs/en/supporting-information/SO-SOJ-WAVE.pdf 2013-07-15 1442126382106720903168 PSP 8 Oct 8, 2009 Supporting Information Footprint for Wave Soldering None /docs/en/supporting-information/SO-SOJ-WAVE.pdf English documents 8260 None 371282830530968666 2024-10-21 N /docs/en/supporting-information/SO-SOJ-WAVE.pdf Footprint for Wave Soldering /docs/en/supporting-information/SO-SOJ-WAVE.pdf documents 371282830530968666 Supporting Information N en None Y pdf 1.0 N N Footprint for Wave Soldering 8.3 KB SO-SOJ-WAVE N 1442126382106720903168 /docs/en/supporting-information/SO-SOJ-REFLOW.pdf 2013-07-15 1442122730480711091281 PSP 9 Oct 8, 2009 Supporting Information Footprint for reflow soldering None /docs/en/supporting-information/SO-SOJ-REFLOW.pdf English documents 8792 None 371282830530968666 2024-10-21 N /docs/en/supporting-information/SO-SOJ-REFLOW.pdf Footprint for reflow soldering /docs/en/supporting-information/SO-SOJ-REFLOW.pdf documents 371282830530968666 Supporting Information N en None Y pdf 1.0 N N Footprint for reflow soldering 8.8 KB SO-SOJ-REFLOW N 1442122730480711091281 データ・シート 1 /docs/en/data-sheet/PCA82C251.pdf 2015-09-12 1442062791891706187903 PSP 1 Feb 11, 2016 Data Sheet None /docs/en/data-sheet/PCA82C251.pdf English documents 113000 None 980000996212993340 2022-12-07 /docs/en/data-sheet/PCA82C251.pdf CAN transceiver for 24 V systems /docs/en/data-sheet/PCA82C251.pdf documents 980000996212993340 Data Sheet N en None Y pdf 4.01 N CAN transceiver for 24 V systems 113.0 KB PCA82C251 N 1442062791891706187903 パッケージ情報 1 /secured/assets/documents/en/packing/SOT96-1_118.pdf 2013-04-19 1442131194585714093488 PSP 7 Apr 19, 2013 Packing Information Registration without Disclaimer /secured/assets/documents/en/packing/SOT96-1_118.pdf English documents 237384 None 145666923842250347 2024-03-13 Y /webapp/Download?colCode=SOT96-1_118&lang_cd=ja SO8; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118 /secured/assets/documents/en/packing/SOT96-1_118.pdf documents 145666923842250347 Packing Information N en Extended Y pdf 2.0 Y N SO8; Reel pack; SMD, 13" Q1/T1 Standard product orientation Orderable part number ending ,118 or J Ordering code (12NC) ending 118 237.4 KB SOT96-1_118 N 1442131194585714093488 true Y Products
