MPC555|32 Bit Microcontroller (MCU) | NXP Semiconductors

オートモーティブ

インダストリアル

コンスーマ

テクノロジ

32-bit Microcontrollers

MPC555 製造中止
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

The MPC555 MCU offers a high-speed solution designed for automotive applications such as engine and transmission control, as well as robotics and avionics control.

  • Accelerates advanced algorithms necessary to support complex applications
  • Includes high-performance data manipulation capabilities
  • Allows for flexibility to change or upgrade products late in the production cycle
  • Offers low development costs and quick time-to-market cycles

製品詳細

ブロック図

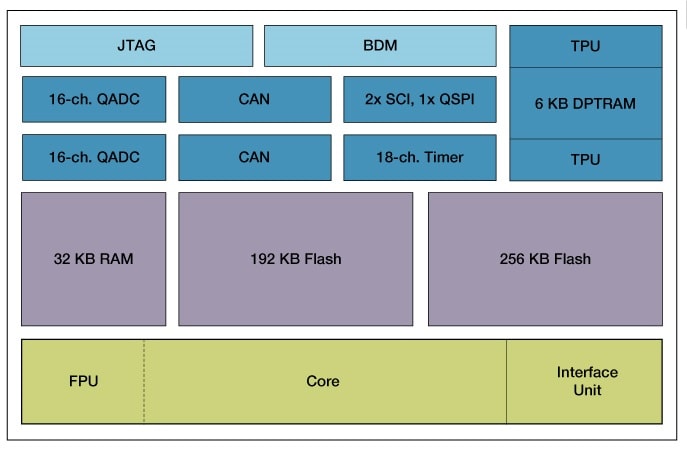

MPC555 Block Diagram

MPC555 Block Diagram
図を取得する PDF

Features

  • 40 MHz core with floating point unit
  • 26 KB of static RAM
  • 448 KB flash EEPROM memory with 5-volt programming (CMF)
  • Flexible memory protection unit
  • GPIO support
  • Two time processor units (TPU3)
  • 18-channel modular I/O system (MIOS1)
  • Two queued analog-to-digital converter modules (QADC)
  • Two CAN 2.0B controller modules (TouCANs)
  • Queued serial multi-channel module (QSMCM)
  • U-bus system interface unit (USIU)

購入/パラメータ

1-10 の 11 結果

除外 11 NRND

パーツ

説明を表示

注文

コンピュータ支援設計 モデル

状況

MPC555LFAVR40
データ・シート
—

生産終了 (EOL)

MPC555LFAZP40
データ・シート
—

生産終了 (EOL)

MPC555LFCVR40
データ・シート
—

生産終了 (EOL)

MPC555LFCZP40
データ・シート
—

生産終了 (EOL)

MPC555LFMVR40
データ・シート

生産終了 (EOL)

MPC555LFMZP40
データ・シート
—

生産終了 (EOL)

SC511653MZP40
データ・シート

生産終了 (EOL)

SC511658MZP40
データ・シート

生産終了 (EOL)

SC511660MZP40
データ・シート
—

生産終了 (EOL)

SC511662MZP40
データ・シート

生産終了 (EOL)
