MPC555CMEE
アクティブ -
Evaluation Kit for 32-bit MPC555, CAN, LCD connector.

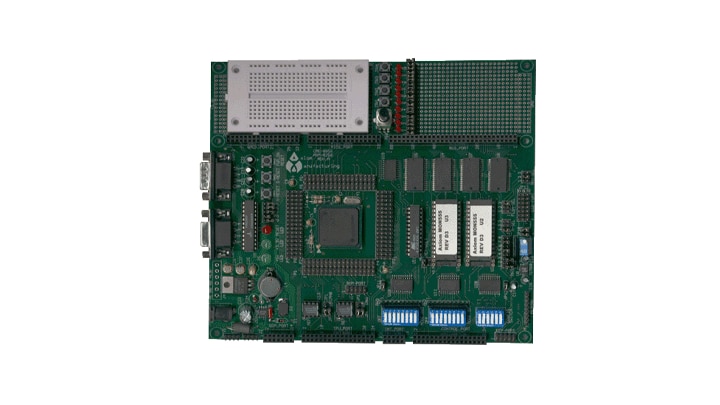

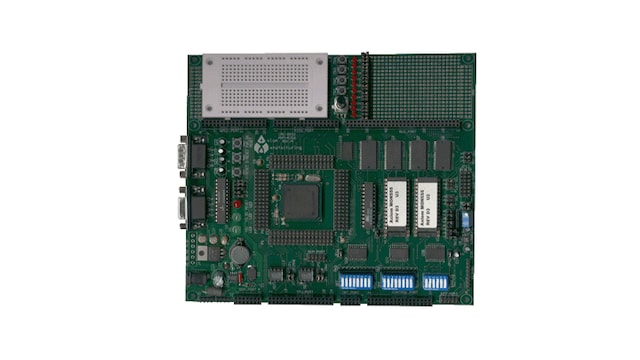

Evaluation Board for MPC555
The MPC555CME is an MPC555-based evaluation board that can be used for the development and test of microcontroller systems. The evaluation board is a development and test platform for software and hardware for the MPC555. It can be used by software and hardware developers to test programs, tools or circuits without having to develop a complete MCU system.
製品詳細
Features
Memory
- Standard fixed memory: 128 x 32 Fast SRAM (12ns), 128K x 32 Flash EPROM (120ns)
- Two Configurable 32-pin memory sockets for 32K to 2 MByte PROM or 32K to 512 KByte SRAM
Connectivity
- 2 CAN Ports with transceivers (PCA82C250)
- LCD Interface Connector with Contrast Adjust, Memory Mapped (80 or 160 character)
- All I/O connectors on 0.1" grid
Power Management
- Power Port with power supply access
- 6 to 25 V DC Input
- Typical Operating Power: 400 ma @ 40 MHz
Debug
- BDM Debug Development connector
Size
- 7 x 7.6" board size
Components
- 10 LEDs
- 4 push-button switches
- Kit includes a wiggler for interface to a computer
- User manual included in kit
