FRDM-LS1012A board

FRDM-LS1012A
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

Archived content is no longer updated and is made available for historical reference only.

The FRDM-LS1012A is no longer in production. The alternate ordering option is the FRWY-LS1012A. For additional information, please contact NXP® Sales and Marketing.

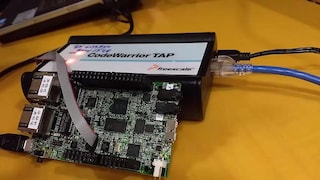

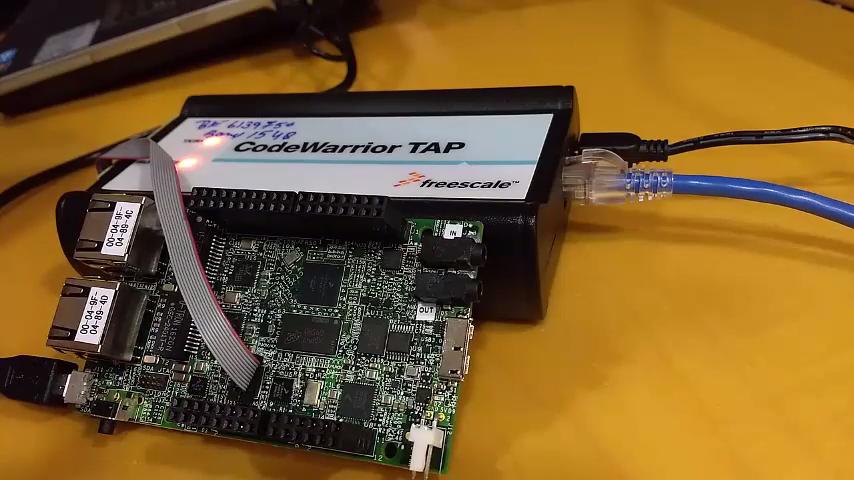

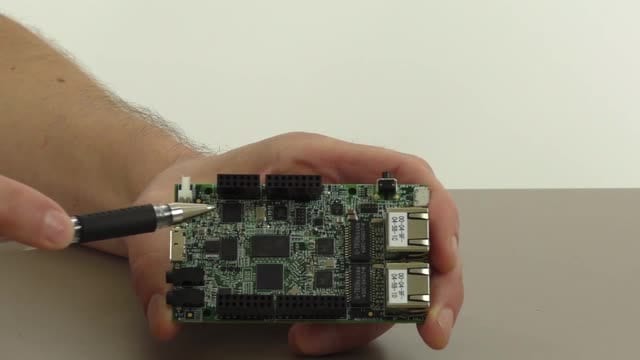

The FRDM-LS1012A Board is an ultra-low-cost development platform for LS1012A Series Network Processors built on Arm® Cortex®-A53 processor.

  • Features include easy access to processor I/O, battery-ready, low-power operation, a standard-based form factor with expansion board options and a built-in debug interface for flash programming and run-control.
  • The FRDM-LS1012A is supported by a range of NXP® and third-party development software.
  • A rich Linux development environment is available for the FRDM-LS1012A, initially via off-train releases, which will later be rolled into the cross-platform release. Please visit QorIQ SDK to download the latest version.

Let's take your FRDM-LS1012A for a test drive! You can follow the detailed instructions of how to get started here.

製品詳細

Features

Microcontroller

    LS1012ASE7HKA MCU

  • 800 MHz CPU
  • 1GT/s DDR3L
  • 212 FC-LGA

Power Management

  • VR5100 Power Management IC

Connectivity

  • Dual 1000Base-T Ethernet interfaces with RJ-45 connectors
  • USB2.0/3.0 OTG Micro A/B connector
  • Arduino® Shield expansion connectors with I²C, SPI, UART, and GPIO connectivity
  • USB2.0 Micro A/B connector for debugging and power supply
  • Additional debug via Cortex 10-pin JTAG connector and CMSIS DAP through K20microcontroller

Memory

  • 512 MB QuadSPI NOR Flash
  • 4 GB DDR3L DRAM

Audio

  • SGTL5000 Audio ADC / DAC with 3.5 mm microphone and headphone jack
N true 0 TSPFRDM-LS1012Aja 3 エラッタ Errata t522 1 ユーザ・ガイド User Guide t792 1 リファレンス・マニュアル Reference Manual t877 1 ja ja 1 1 English This page will help guide you through the process of learning about your FRDM-LS1012A board. 1554928382290722209940 Y 1554928382290722209940 NGS-FRDM-LS1012A NGS-FRDM-LS1012A /document/guide/getting-started-with-the-frdm-ls1012a:NGS-FRDM-LS1012A HTML 0 TSP 2019-04-10 NGS-FRDM-LS1012A TSP User Guide 132339537837198660 2025-02-06 en Apr 10, 2019 User Guide t792 ユーザ・ガイド User Guide Y Getting Started with the FRDM-LS1012A false ja リファレンス・マニュアル Reference Manual 1 2 3 English Explains the FRDM-LS1012A interfaces and configuration. 1467199042999709673300 TSP 961.6 KB Registration without Disclaimer None documents Extended 1467199042999709673300 /secured/assets/documents/en/reference-manual/FRDM-LS1012ARM.pdf 961649 /secured/assets/documents/en/reference-manual/FRDM-LS1012ARM.pdf FRDM-LS1012ARM documents Y N 2016-12-12 QorIQ FRDM-LS1012A Reference Manual /webapp/Download?colCode=FRDM-LS1012ARM&lang_cd=ja /secured/assets/documents/en/reference-manual/FRDM-LS1012ARM.pdf Reference Manual N 500633505221135046 2023-06-18 pdf Y en Dec 15, 2016 500633505221135046 Reference Manual Y N QorIQ FRDM-LS1012A Reference Manual エラッタ Errata 1 3 2 English This document lists and describes all known errata for the FRDM-LS1012A. 1467285384921714366971 TSP 1.0 MB Registration without Disclaimer None documents Extended 1467285384921714366971 /secured/assets/documents/en/errata/FRDM-LS1012AErrata.pdf 1030715 /secured/assets/documents/en/errata/FRDM-LS1012AErrata.pdf FRDM-LS1012AERRATA documents Y N 2016-11-09 FRDM-LS1012A Board Errata /webapp/Download?colCode=FRDM-LS1012AERRATA&lang_cd=ja /secured/assets/documents/en/errata/FRDM-LS1012AErrata.pdf Errata N 155452329886410597 2023-04-18 pdf Y en Feb 22, 2017 155452329886410597 Errata Y N FRDM-LS1012A Board Errata false 0 FRDM-LS1012A downloads ja true 0 Y TSP エラッタ 1 /secured/assets/documents/en/errata/FRDM-LS1012AErrata.pdf 2016-11-09 1467285384921714366971 TSP 3 Feb 22, 2017 Errata This document lists and describes all known errata for the FRDM-LS1012A. Registration without Disclaimer /secured/assets/documents/en/errata/FRDM-LS1012AErrata.pdf English documents 1030715 None 155452329886410597 2023-04-18 Y /webapp/Download?colCode=FRDM-LS1012AERRATA&lang_cd=ja FRDM-LS1012A Board Errata /secured/assets/documents/en/errata/FRDM-LS1012AErrata.pdf documents 155452329886410597 Errata N en Extended Y pdf 2 Y N FRDM-LS1012A Board Errata 1.0 MB FRDM-LS1012AERRATA N 1467285384921714366971 ユーザ・ガイド 1 2019-04-10 1554928382290722209940 TSP 1 Apr 10, 2019 User Guide ユーザ・ガイド This page will help guide you through the process of learning about your FRDM-LS1012A board. Y NGS-FRDM-LS1012A English 0 User Guide 2025-02-06 /document/guide/getting-started-with-the-frdm-ls1012a:NGS-FRDM-LS1012A Getting Started with the FRDM-LS1012A NGS-FRDM-LS1012A TSP 132339537837198660 User Guide en Y t792 HTML NGS-FRDM-LS1012A 1554928382290722209940 リファレンス・マニュアル 1 /secured/assets/documents/en/reference-manual/FRDM-LS1012ARM.pdf 2016-12-12 1467199042999709673300 TSP 2 Dec 15, 2016 Reference Manual Explains the FRDM-LS1012A interfaces and configuration. Registration without Disclaimer /secured/assets/documents/en/reference-manual/FRDM-LS1012ARM.pdf English documents 961649 None 500633505221135046 2023-06-18 Y /webapp/Download?colCode=FRDM-LS1012ARM&lang_cd=ja QorIQ FRDM-LS1012A Reference Manual /secured/assets/documents/en/reference-manual/FRDM-LS1012ARM.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 3 Y N QorIQ FRDM-LS1012A Reference Manual 961.6 KB FRDM-LS1012ARM N 1467199042999709673300 true Y Tools
