H-Bridge, Brushed DC Motor Driver, 2-6.8 V, 3.0 A, 200 kHz
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
The NXP® MPC17511 is a monolithic H-Bridge IC that is ideal for portable electronic applications to control various micro DC-motors such as single lens cameras and optical disc drives.
- Drives various types of micro motors with low loss via parallel drive; each section has efficient drivers designed for PWM control frequency up to 200 kHz for high speed drive and independent input/output circuitry
- Contains an integrated charge pump and level shifter for gate drive voltages, with an integrated shoot through current protection circuit and undervoltage circuit detector to avoid malfunction
- 4 output control modes: Forward, Reverse, Brake, Tri-state (Open)
製品詳細

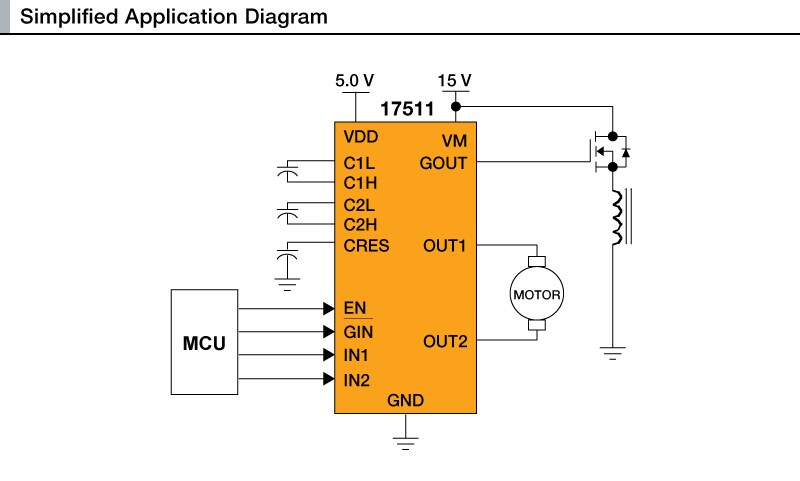

ブロック図
Features
General
- Low RDS(ON) 0.46 and (typ)
- Output current 1 A (DC), 3 A (Peak)
- Shoot through current protection circuit
- PWM control input frequency 200 kHz
- External MOSFET control circuit
- Charge pump circuit
- Parallel interface and input control
- Ambient operating temperature -20 °C (Min), 65 °C (Max)
- Load supply voltage 2 V (Min), 6.8 V (Max)
