Embedded SW: Low-Voltage H-Bridge Software Driver Built on SDK
This embedded software solution provides high-level support for listed NXP analog parts (MPC17C724, MPC17510, MPC17511, MPC17529, MPC17531A, MPC17533, MC34933).
Included embedded driver provides access to all features of H-Bridge such as device active mode management. It also implements DC brushed and stepper motor control algorithms.
Since AML (analog middleware layer) is utilized, KSDK 2.0 and also S32 SDK 1.0 are supported. Example projects for KDS 3.2 are part of the package.
ソフトウェア詳細
Features
- Low Voltage H-Bridge SW Driver
- Active mode management
- DC brushed motor control
- Stepper motor control using full-stepping and micro-stepping methods

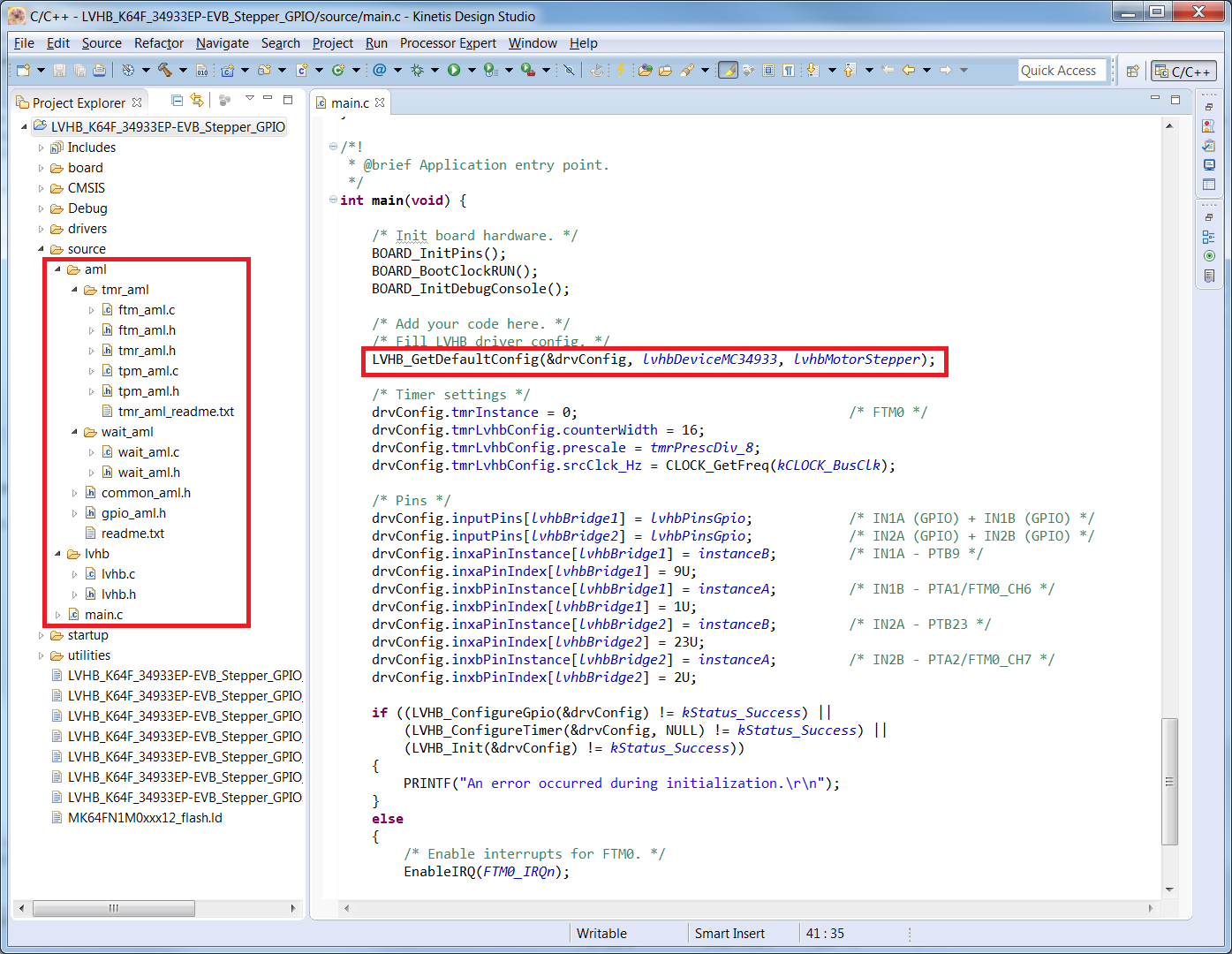

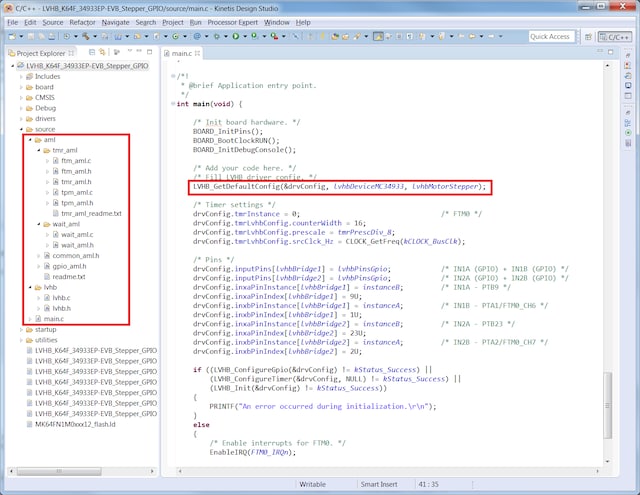

- Kinetis Design Studio example projects
- DC brushed and steppper motor control examples
- FreeMASTER control applications
対応製品
- MPC17C724: H-Bridge, Motor Driver, 2.7-5.5 V, 0.8 A, 200 kHz
- MPC17510: H-Bridge, Brushed DC Motor Driver, 2-15 V, 3.8 A, 200 kHz
- MPC17533: Dual H-Bridge, Motor Driver, 2-6.8V, 1.4A, 200kHz
- MC34933: H-Bridge Motor Driver, 2-7 V, 1.4 A, 200 kHz
- MPC17529: Dual H-Bridge, Motor Driver, 2-6.8 V, 1.4 A, 200 kHz
- MPC17531: Dual H-Bridge, Motor Driver, 2-8.6 V, 1.4 A, 200 kHz
- MPC17511: H-Bridge, Brushed DC Motor Driver, 2-6.8 V, 3.0 A, 200 kHz
