H-Bridge Motor Driver, 2-7 V, 1.4 A, 200 kHz
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

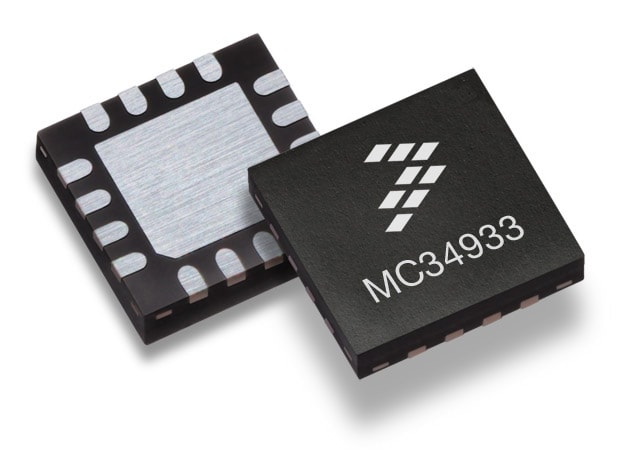

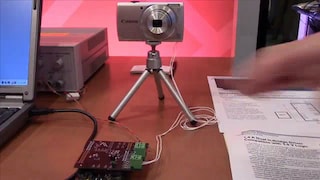

The NXP® MC34933 is a two channel H-Bridge driver with a variety of applications, such as auto focus control, that make it ideal for the digital camera market.
Uses the NXP proprietary SMOS8 Bi CMOS process to deliver a low power device with a maximum quiescent current of 100 uA for the motor drive supply and 400 uA for the control logic supply
Employs a VCC detection circuit to sense when the logic supply switches to an off-state with a maximum current of 1u A to extend battery life
Thermal protection circuitry for the H-Bridge drivers to avoid damage to the IC's internal Power MOSFET circuitry
製品詳細
Features
Key Features
- Built-In 2-Channel H-Bridge Driver
- H-Bridge Operation Voltage 2.0 V ~ 7.0 V
- Output Current 1.0 A @TA=25°C
- Low Total RDS(ON) 0.8 Ω (Typ), 1.0 Ω (Max) @ TA=25 °C
- Dual Channel Parallel Driver, RDS(ON) 0.4Ω (Typ). Max DC Current 1.4 A
- PWM Control Input Frequency up to 200 kHz
- Built-In Shoot-Through Current Prevention Circuit
- Built-In Charge Pump Circuit (External Cap type)
- VCC Low Voltage Detection for logic power supply voltage
- Thermal Detection for H-Bridge driver
- Parallel interface and input control
- Ambient operating temperature -20 °C (Min), 85 °C (Max)
Product Longevity Program
- This product is included in the NXP Product Longevity Program ensuring a stable supply of products for your embedded designs. The MC34933 is included in the 15-year program
