High-Performance Quad-Core DSP
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

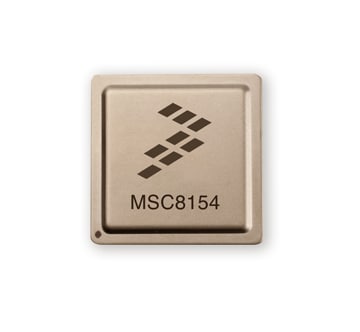

The MSC8154 device is one of Our fourth-generation high-end multicore DSP devices that target the broadband wireless base stations and other communications infrastructure. The MSC8154 is a four-core DSP based on NXP’s SC3850 StarCore® technology designed to advance the capabilities of wireless broadband equipment. It delivers higher performance and power savings, leveraging 45 nm process technology in a highly integrated system-on-chip (SoC) to provide performance equivalent to a 4 GHz single-core device. The MSC8154 helps equipment manufacturers and carriers create solutions and services that enable near-term, mainstream adoption of next-generation wireless standards such as 3G-LTE, WiMAX, HSPA+ and TDD-LTE. The device is designed to lower system costs by integrating functionality into a single device that previously required multiple discrete parts.

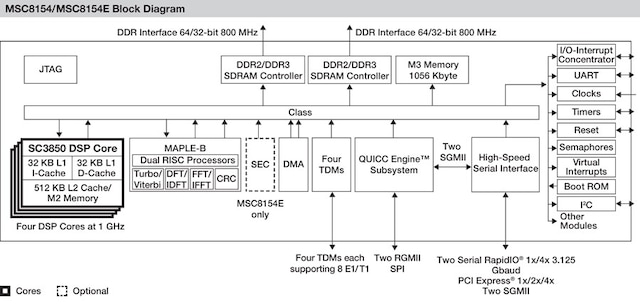

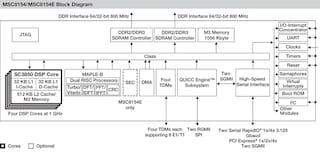

The MSC8154 DSP delivers a high level of performance and integration, combining four fully programmable new and enhanced SC3850 DSP cores, each running at up to 1 GHz with an architecture highly optimized for wireless infrastructure applications. Developed by NXP® and integrated on-chip, the MAPLE-B baseband accelerator supports hardware acceleration for Turbo and Viterbi channel decoding and for DFT/iDFT and FFT/iFFT algorithms and includes CRC processing. An internal RISC-based QUICC Engine® subsystem supports multiple networking protocols to guarantee reliable data transport over packet networks while significantly offloading processing from the DSP cores.
The MSC8154 embeds large internal memory and supports a variety of advanced, high-speed interface types, including two RapidIO® interfaces, two gigabit Ethernet interfaces for network communications, a PCI Express® controller, two DDR controllers for high-speed, industry standard memory interface and four multi-channel time division multiplexing (TDM) interfaces. The MSC8154 is pin compatible with the MSC8156.
ドキュメント
クイック・リファレンス ドキュメンテーションの種類.
1-10 の 51 ドキュメント
コンパクトリスト
アプリケーション・ノート (34)
-
MSC81xx Ethernet Boot Test[AN3436]
-
MSC8156 DMA Performance[AN3987]
-
Using the MSC8156 MAPLE-B[AN3950]
-
Multicore Support in SmartDSP OS[AN3855]
アプリケーション・ノート・ソフトウェア (12)
-
Software to support AN4207[AN4207SW]
-
Software to support AN4338[AN4338SW]
-
Software to support AN3935[AN3935SW]
-
Software to accompany AN4176[AN4176SW]
-
Software to accompany AN4063[AN4063SW]
-
Software to accompany AN4155[AN4155SW]
-
Software to accompany EB738[EB738SW]
-
Software to support AN3873[AN3873SW]
-
Software to accompany AN4196[AN4196SW]
-
Software to support AN3987[AN3987SW]
-
Software for AN3872[AN3872SW]
データ・シート (1)
ファクト・シート (1)
-
Digital Signage Media Player Reference Platform[MPC8536RDFS]
リファレンス・マニュアル (2)
製品概要 (1)
-
MSC8154 Product Brief[MSC8154PB]
