JN517x Development Kit with NFC Commissioning
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
The NXP JN517x-DK005 development kit is designed for use with the NXP JN517x range of ultra-low-power, high-performance wireless microcontrollers, which are suitable for ZigBee and other IEEE802.15.4-based networks in application areas such as Smart Lighting and Smart Home. The kit also provides the necessary components to implement contactless NFC commissioning, as well as the monitoring and control of wireless networks from devices on the Internet – the ‘Internet of Things’ (IoT).

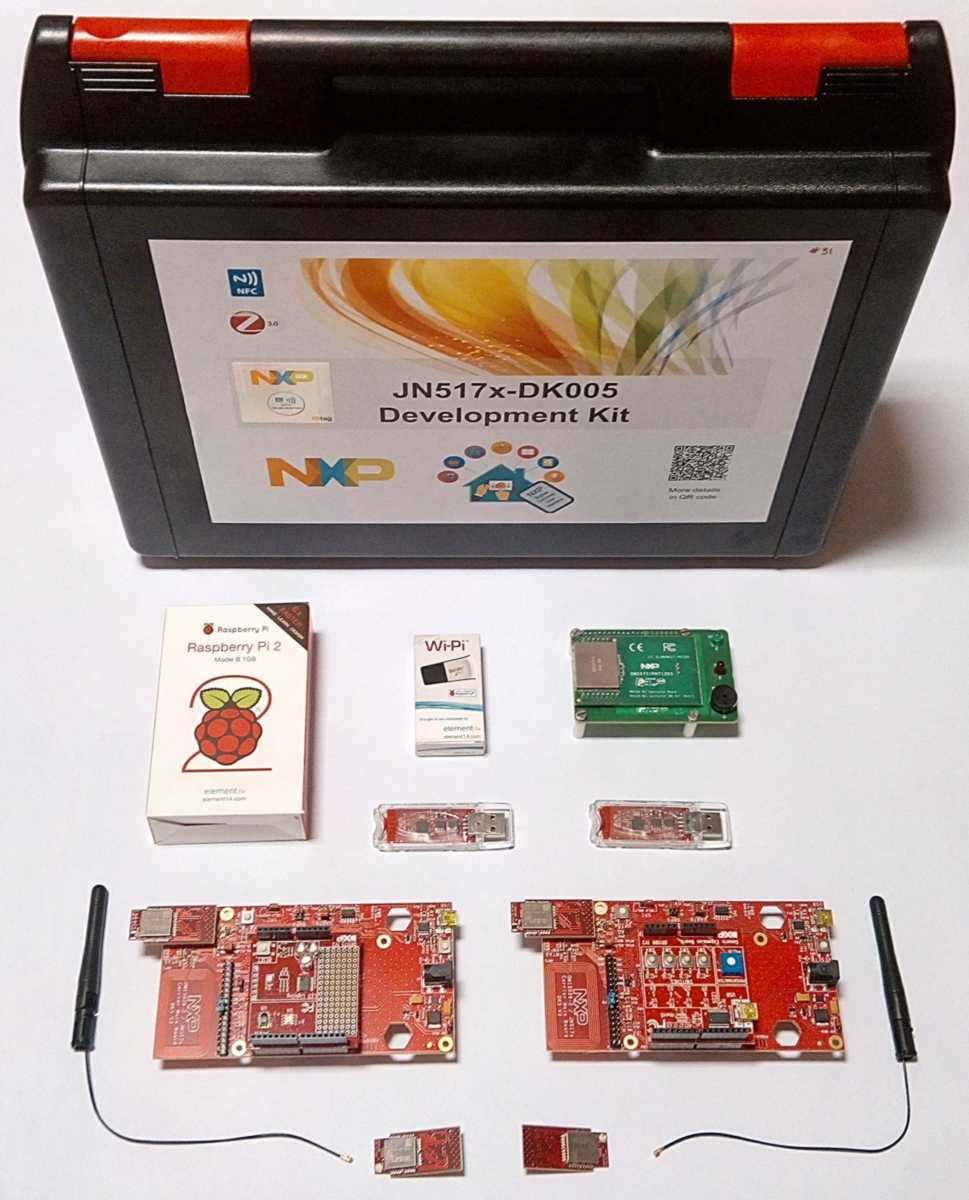

This comprehensive kit includes carrier boards with NFC I²C tags, JN5179 modules, plug-in expansion boards, a PN7120 NFC controller board, USB dongles and a specially programmed Raspberry Pi board. Together with a JN517x Software Developer’s Kit (SDK), JN517x-DK005 provides everything that is required for wireless network development.
Special points to note are:
- The Raspberry Pi board is programmed as an IoT Gateway, allowing the development of wireless networks that connect to the Internet and other IP-based networks.
- The NFC controller board (PN7120) is integrated into the IoT Gateway and NFC connected tags (NTAG I²C) are integrated into the carrier boards. Together, they facilitate the quick and easy commissioning of nodes through simple NFC taps.
Using the demonstration applications available for the kit, designers can quickly produce demonstrators or proof-of-concept products. The same software can then be used for end products, using JN517x ICs or modules.
The JN517x-DK005 Development Kit is further detailed in the Product Leaflet and User Guide.
製品詳細
対応製品
ワイヤレス・コネクティビティ
ZigBee
- JN5179: ZigBee and IEEE802.15.4 Wireless Microcontroller with 512 kB Flash, 32 kB RAM
Target Applications
- Internet of Things (IoT)
- ZigBee 3.0 Lighting and Occupancy applications
- Home and Building Automation
- Smart Lighting
- Wireless Sensor Networks
Internet of Things (IoT)
- ZigBee 3.0 Lighting and Occupancy applications
- Home and Building Automation
- Smart Lighting
- Wireless Sensor Networks
Support Resources
Related Products
- JN517x-XK030: JN517x Generic Node Expansion Kit
- JN517x-XK040: JN517x Lighting/Sensor Node Expansion Kit
- OM15021: JN5179 USB Dongle
