Layerscape® Access LA1575 Programmable Wireless Platform
- このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。
The Layerscape Access LA1575 processor delivers the highest level of wireless SoC integration and a full complement of user programmable elements from the physical layer through the application layer. The LA1575 is the first product in a family of devices targeted at 802.11ax access points, 802.11ad fixed wireless and future OFDMA wireless systems.
The programmable nature of the LA1575 enables OEM and ODM customers to rapidly introduce and deploy new wireless standard products. NXP delivers tested essential layer 1, layer 2 and application libraries and also supports custom modulation and processing via CodeWarrior Tools and standard language programming.
Layerscape processors are part of NXP's EdgeVerse™ edge computing platform.
製品詳細

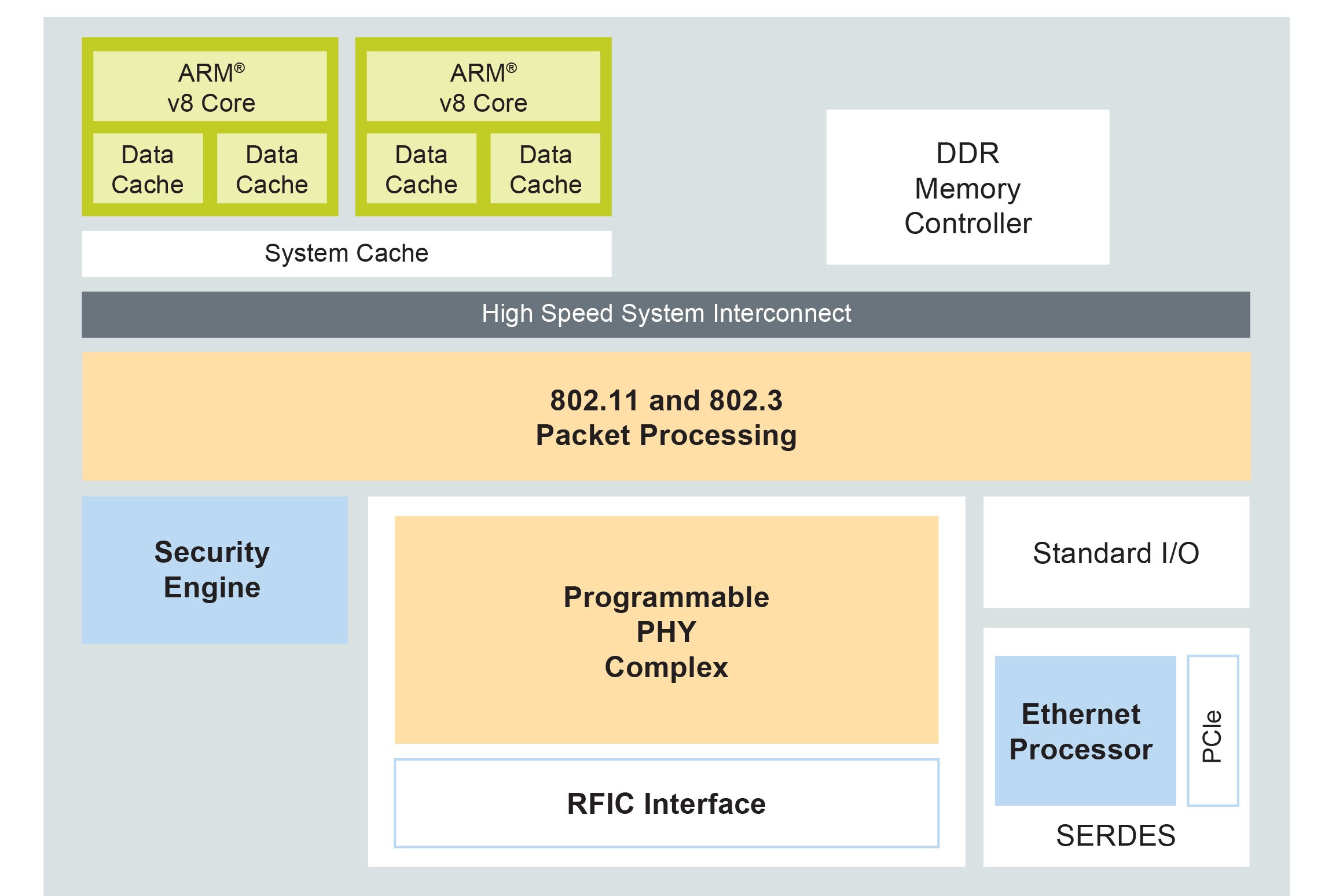

ブロック図
Features
- Multicore Arm® v8 Processors for user applications
- Innovative programmable accelerator engines for signal processing.
- Programmable low latency MAC layer processing engines
- Programmable high-performance packet processing engines to over 10 Gbps
- Configurable cryptographic offload engines
- Multiple Ethernet interfaces including 10Gbps
- DDR4 with ECC
- PCIe gen 3.0
- Integrated Trust architecture
- Single source clocking
Key elements of the LA1575 SoC:
- Simultaneous multi-standard support for 5G, Wi-Fi (802.11 ac and 802.11ax) and Wireline systems
- Dynamic PHY and MAC resource allocation at run-time across protocols
- Rapid deployment of evolving standards for mmWave, 802.11ax, 802.11ad and wireline
- Comparable performance and efficiency to hard-wired solutions
- Full software implementation allowing customer-differentiated feature sets and flexibility
- Leverages extensive third party ecosystem providers and the rich library base for Layerscape and Arm 64-bit cores
- Powered by the latest acceleration and secure platform technologies, packet offload and physical layer processing
