Tower Board - SB0800, Octal Valve/Pump Controller SoC

TWR-SB0800-36EVB アクティブ
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

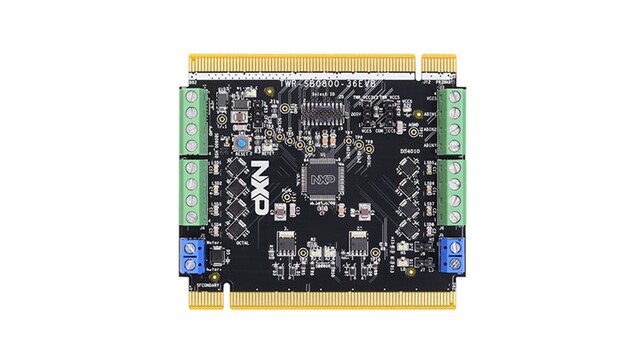

The TWR-SB0800-36EVB module is a development board illustrating the MC34SB0800 Octal Valve and Pump Controller System on Chip which consists of four low-side drivers regulated/PWM, a high side pre-driver safe switch to protect the valves against short circuit and a high side pre-driver to control a DC motor.

製品詳細

ブロック図

Tower Board - SB0800

TWR-SB0800-36EVB Evaluation Board Block Diagram
図を取得する PDF

Features

General Specifications

  • Small power Package LQFP64 pins
  • x4 Low side drivers current regulated or PWM (5 A)
  • x4 PWM Low side drivers (5 A)
  • x1 High side pre-driver Safe Switch
  • x1 High side pre-driver for DC Motor (500 Hz)
  • x3 ADC input (10 Bits)
  • x1 Low side drivers (general purpose)
  • x1 High side drivers (general purpose)
  • SPI communication (10 MHz)
  • Watchdog

購入オプション

TWR-SB0800-36EVB-Image

クリックして展開

  • TWR-SB0800-36EVB
    アクティブ

  • Evaluation board - SB0800, Solenoid/High Side predrivers, 8 CH / 2, 36 V, 2.25 A for LSD.
