VFxxx VF6xx Tower® System Kit with Arm® DS-5™ VFxxx Controllers Edition

TWR-VF65GS10-DS5

画像にカーソルを合わせると拡大表示されます。

Offered as a combination of hardware and software, the NXP® TWR-VF65GS10-DS5 Tower® System development kit brings the powerful Arm® Development Studio 5 toolchain to VFxxx devices and the Tower System. Arm DS-5 accelerates software development by providing an easy to use, robust, well integrated, and professionally maintained toolchain with compiler, debugger, analyzer and more.

Looking for other evaluation alternatives? Check out the TWR-VF65GS10 controller module and kits that feature Arm DS-5 Starter Kit for VFxxx Controller Tower System modules/kits.

製品詳細

対応製品

プロセッサ＆マイクロコントローラ

VFxxx Fシリーズ

  • VF3xx: Arm® Cortex®-A5-Based Microprocessors with 1.5MB SRAM, LCD, Security, 2x Ethernet and L2 Switch
  • VF5xx: Arm® Cortex®-A5-Based Microprocessors with 1.5MB SRAM, LCD, Security, 2x Ethernet and L2 Switch
  • VF6xx: Arm® Cortex®-A5 + Cortex-M4 MPUs, 1.5 MB SRAM, LCD, Security, Ethernet, L2 Switch

Features

Microcontroller

Arm DS-5 VFxxx Controllers Edition features

  • Integrated solution, developed and maintained by Arm for VFxxx
    • End-to-end development, from SoC bring-up to application debug
  • Powerful Arm Compiler for both Arm® Cortex®-A5 and Cortex-M4
    • Optimized code size and performance
  • Intuitive DS-5 Debugger with MQX™ RTOS support
    • Full debug for both core types in one IDE
    • Flexible graphical user interface
    • DSTREAM probe with 4 GB trace buffer
    • Supports CMSIS-DAP debug probe on VFxxx Tower® System modules/kits
  • Streamline™ Performance Analyzer
    • System-wide analysis of Linux® and Android™ systems
    • Timeline and profiling reports
  • 12-month license
  • Supports all VFxxx devices and Tower System
  • 1 MB code size limit

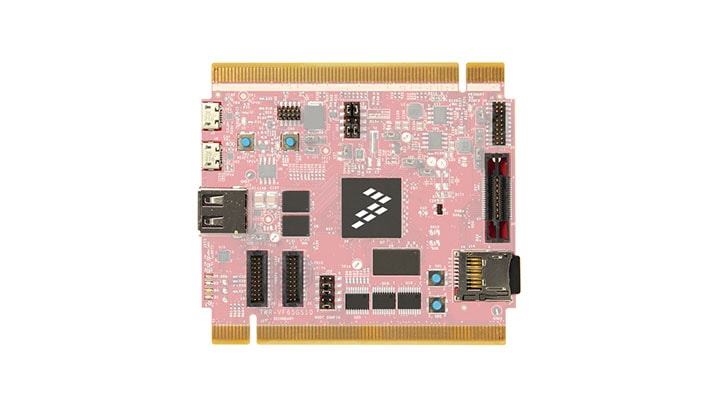

TWR-VF65GS10 VFxxx Controller Tower System module features

  • VFxxx VF61NS151CMK50 processor (dual-core Cortex-A5 at 500 MHz + Cortex-M4 at 167 MHz, 1.0 MB of SRAM, 512 kB of L2 cache, dual Ethernet, dual USB, advanced security)
  • Kinetis® K20DX128VFM5-based OpenSDA circuit
  • 1 Gbit x 16 (128 MB) DDR3 in 96 FBGA package (Samsung)
  • 2 Gbit x 16 (256 MB) NAND flash (Micron)
  • Two 128 Mbit (16 MB) quad I/O serial flash (Expansion)
  • Dual USB with on-chip PHY
  • Interfaces to TWR-LCD-RGB board
  • Four user-controlled status LEDs
  • Two mechanical push buttons for user input and one for reset
  • Potentiometer and MMA8451Q 3-axis digital accelerometer
  • Micro SD card slot
  • Independent battery-operated power supply for real-time clock and tamper detection module
