TEA1716 90 W / 19.5 V Resonant LLC + PFC Combo Controller Demo Board

TEA1716DB1255 アクティブ

画像にカーソルを合わせると拡大表示されます。

This resonant LLC board demonstrates a EuPlot6 compliant, compact slim line notebook adapter. The 90W notebook adapter is using the TEA1716 resonant combo controller and achieves an efficiency up to 93%. The typical output voltage is 19.5V.

製品詳細

対応製品

パワーマネージメント

PFC内蔵AC-DCコントローラ

  • TEA1716T: HV Start-Up Resonant LLC+PFC Combo Controller with Integrated Burst Mode, EuP Lot 6 Compliant

Features

Key Features

  • Energy Star, EPS2.0 and EuPlot 6 compliant

Board

  • ICs used: TEA1716T Resonant LLC+PFC combo controller
  • Universal mains operation: 85 - 264Vac / 47 - 63 Hz
  • Output: 90 W / 19.5 V
  • Average efficiency: > 93% @ high mains
  • Low no-load power consumption in standby mode < 300 mW

Power Management

  • Under Voltage protection for mains (Brownout), boost, IC supply, and output voltage
  • Overcurrent regulation and protection for both controllers
  • Accurate overvoltage protection for boost voltage
  • Adaptive nonoverlap time
  • Capacitive mode protection for HBC controller

購入オプション

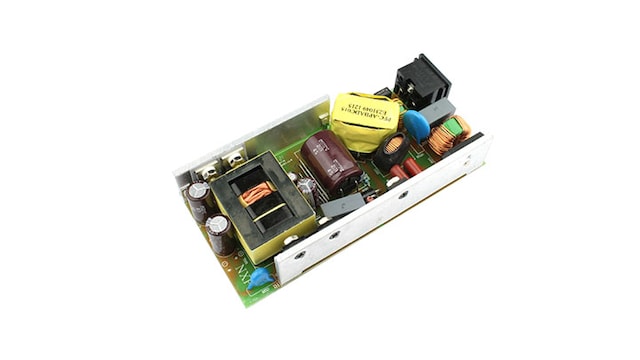

TEA1716DB1255-Image

クリックして展開

  • TEA1716DB1255
    アクティブ

  • TEA1716 90W / 19.5V resonant LLC + PFC combo controller.

    • Demo board
    • Quick start guide
  • $434.70 USD
  • の数量に対して 1
    • 在庫: 保留中の在庫
カートに入れる
