TEA1755 90W / 19.5V QR / DCM Flyback + PFC combo controller.
- Demo board
- Quick start guide
TEA1755 90 W / 19.5 V QR / DCM Flyback + PFC Combo Controller Demo Board

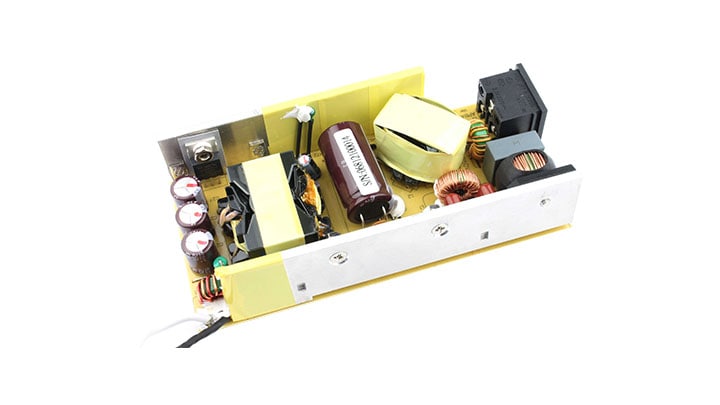

This board demonstrates a 90W laptop adapter reference design with an output voltage of +19.5 V.
The reference design combines the TEA1755 GreenChip 3.5 controller with the TEA1792 Synchronous Rectifier and TEA1703 low standby controller to achieve high efficiency and an extreme low no load power level.
製品詳細
対応製品
パワーマネージメント
セカンダリ・サイド・コントローラ
- TEA1792AT: Synchronous Rectification Controller Suitable for Both High-Side and Low-Side Control
- TEA1792ATS: Synchronous Rectification Controller Suitable for Both High-Side and Low-Side Control
- TEA1792T: Synchronous Rectification Controller Suitable for Both High-Side and Low-Side Control
- TEA1792TS: Synchronous Rectification Controller Suitable for Both High-Side and Low-Side Control
Features
Key Features
- Increased efficiency and no load power of the total application
- Universal mains operation: 90 - 264 Vac / 47 - 63 Hz
- Average efficiency: > 91%
- Excellent load step performance
- ICs used: - TEA1755T DCM/QR flyback controller - TEA1792 synchronous rectifier - TEA1703 low standby power controller (optional)
- EMI CISPR22 compliant
- OverCurrent Protection (OCP)
- OverPower Protection (OPP)
- OverTemperature Protection (OTP)
Power Management
- Output: 90 W / 19.5 V
- Ultra low no load power consumption in standby mode < 30mW
- High/low line output power compensation
- Energy Star, EPS2.0 and EuPlot 6 compliant
