KIT34671EPEVBE
アクティブ -
Evaluation Kit - MC34671, 600 mA High-input Voltage Charger Single-cell Li-Ion/Li-Polymer Batteries.

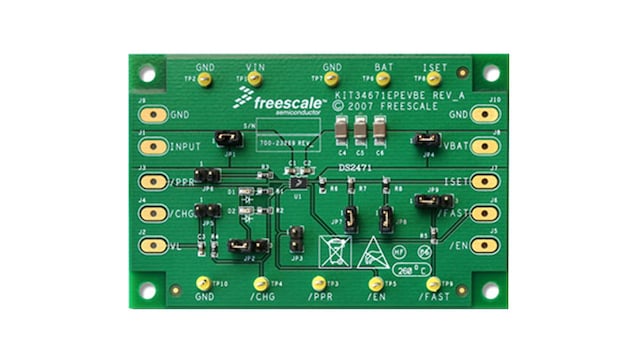

- KIT34671EPEVBE Hardware
- Quick Reference Guide
Evaluation Kit for MC34671 Single-Cell Li-Ion / Li-Poly Charger
This evaluation kit supports the MC34671—a cost-effective, fully integrated battery charger for Li-Ion or Li-Polymer batteries.
Product benefits include:- Industry’s flexible Li-ion/Li-polymer charger solution
- Feature-rich and easily modified to meet the needs of a wide variety of applications
- Factory-configurable parameters for faster time to market and lower system cost
- Meets AC/DC adapter standard YD/T 1591-2006 in the Chinese cell phone market
- Low external component count
製品詳細
対応製品
パワーマネージメント
バッテリー・チャージャ
- MC34671: 600 mA Single-Cell Li-Ion / Li-Polymer Battery Charger
Features
General Specifications
- No external MOSFET, reverse-blocking diode, or current-sense resistor are required
- Charge current monitor
- Charge current thermal foldback
Power Management
- Guaranteed maximum 600 mA programmable charge current
- ± 0.7% voltage accuracy over -20 °C to 70 °C
- ± 5% current accuracy over -40 °C to 85 °C
- 28 V maximum voltage for the power input with 11 V over-voltage protection threshold
- 2.6 V minimum input operating voltage
- Trickle charge for fully discharged batteries
