24-bit Dual-Core Symphony® DSP
デザイン・ファイル
完全な内訳を受け取ります。 製品の設置面積などについては、 eCad ファイル.
24-bit Dual-Core Symphony® DSP
- このページでは、新規設計を推奨しない製品に関する情報を掲載しています。

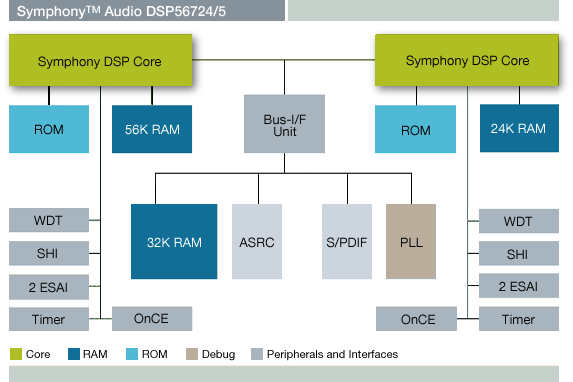

The Symphony® audio DSP56725 is part of the DSP5672x family of multicore 24-bit processors, offering flexibility and scalability. The Symphony DSP56725 retains code compatibility with Our popular DSP56000 and DSP56300 core families of DSPs and provides pin and peripheral compatibility with the Symphony DSP56721. The Symphony DSP56725 is similar to the Symphony DSP56724 except that there is no external memory controller and is therefore offered in a smaller package option – 80LQFP.
The Symphony audio DSP56725 excels at audio processing for automotive, consumer and professional audio applications requiring high million instructions per second (MIPS). Higher MIPS and memory requirements are driven by the multitude of audio standards for home entertainment and automotive infotainment. In addition, the DSPs are optimal for the professional audio market requiring audio recording, signal processing and digital audio synthesis.
製品詳細
Features
- Dual DSP56300 cores for high performance – 250 MHz per core for 500 MIPS performance at a consumer temperature range
- 112K x 24-bit words RAM
- Asynchronous Sample Rate Converter (ASRC) to allow multiple data rates in a system
- Integrated S/PDIF transceiver to reduce system cost and complexity
- Enhanced Serial Audio Interface (ESAI) – 4 modules to allow multiple sources
- Dual Serial Host Interfaces (SHI) that support SPI or I²C protocols which provides high speed communication between multiple the DSP and other integrated circuits in the system
- Dual triple timer modules for a flexible, programmable timer system
- Dual Hardware Watchdog Timers (WDT) to allow for recovery from runaway code
- 80LQFP package
- This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch
- Consumer
- A/V Receivers
- Professional Audio Recording Systems
関連製品
購入/パラメータ
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
設計・リソース
ソフトウェア
クイック・リファレンス ソフトウェア・タイプ.
2 ソフトウェア・ファイル
-
開発IDEと構築ツール
Symphony™ Studio Development Tools注目
-
開発IDEと構築ツール
Symphony™ Studio Integrated Development Environment for developing technology for Symphony DSP family
