LPC4088 Experiment Base Board

OM13079 アクティブ
  • このページには、製造中止（生産終了）となった製品の情報が記載されています。本ページに記載されている仕様および情報は、過去の参考情報です。

画像にカーソルを合わせると拡大表示されます。

This board is no longer manufactured and will only be available while supplies last.

The LPC4088 Experiment Base Board with NXP®'s LPC4088 microcontroller is designed to make it as easy as possible to get started with your project and get up-and-running quickly with the LPC4088 QuickStart Board. This base board adds several expansion connectors to the LPC4088 QuickStart Board and makes it especially easy to connect displays to the board.

The order code for this board is OM13079.

製品詳細

Features

Interfaces / Connectors

  • 2 x 22 headers for LPC4088 QuickStart Board
  • 2 x 22-pin list for prototyping
  • Arduino® compatible expansion connectors (for Arduino® shields)
  • Serial Expansion Connector, 14-pos connector with UART / I²C / SPI / GPIO pins
  • LCD expansion connector with control signals for touchscreen interface
  • MicroSD (microSD) interface and connector (both MCI and SPI interface versions)

Connectors

  • UART interfaces for UART0 / UART3 via FTDI cables (not included)
  • Shift register on SPI bus controlling 8 LEDs
  • Above shift, register also creating a Character LCD interface
  • RGB-LED
  • 5-key Joystick
  • LM75 I²C temperature sensor
  • MMA7455 3-axis accelerometer on I²C bus
  • Trimming potentiometer on analog input
  • Connector (CR1216 coin cell) for VBAT (battery not included)
  • Pads for connector to 1.77" TFT LCD 128 x 160 pixels (connector and LCD not included)

Power Management

  • +5 VDC power supply input connector (2.1 mm jack)

Display

  • FFC / FPC interface connector for 4.3" and 5" LCDs (displays sold separately)
  • 16-bit color depth supported
  • Touch screen interface controller (AR1021 from Microchip)
  • Backlight voltage generator

Audio

  • WM8731 Audio codec from Wolfson
  • Microphone input (mono)
  • Line in (stereo)
  • Line out (stereo)
  • Headphone out (stereo)

Size

  • Dimensions 138 mm x 114 mm

購入オプション

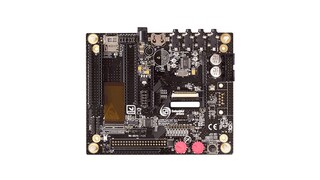

OM13079-Image

クリックして展開

  • OM13079
    アクティブ

  • LPC4088 Experiment Base Board.
