P2041RDB-PC
アクティブ -

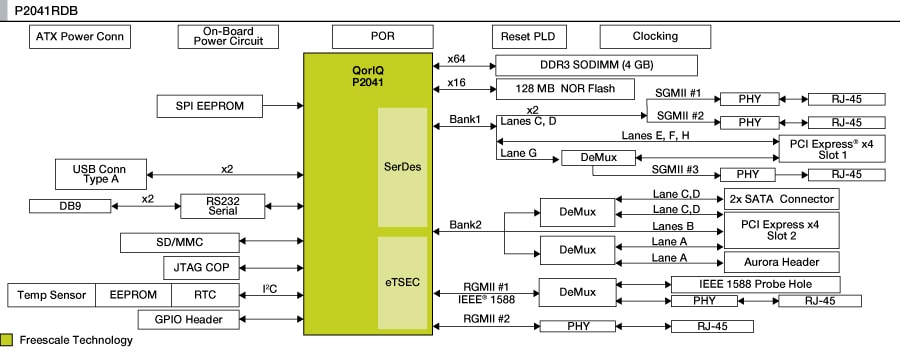

QorIQ P2041 Reference Design Board, rev2 silicon.
P2041 QorIQ® Development Board

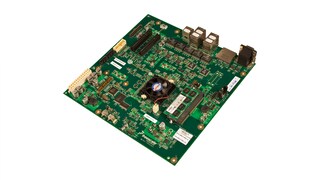

The NXP® P2041RDB is a compact (micro-ATX), highly integrated reference design board featuring the quad-core P2041 device.
The board, with its 1.5 GHz P2041 and rich I/O mix is intended for evaluation of P2041 and P2040 in networking and Ethernet-centric applications, such as control plane and mixed control plane/data plane in switches and routers, unified threat management, base station network interface and baseband cards, aerospace and defense, multifunction printers, factory automation and more.
製品詳細
Features
Processor
- P2041, 1.5 GHz core with 1333 MHz DDR3 data rate
- Data Path Acceleration Architecture
Connectivity
- Two x4 PCI Express slots
- Two SATA connectors
Ethernet
- Supports five 10/100/1000 ports with no add-in cards, 10 GE can be supported with NXP’s optional XAUI-RISER card
- 10 SerDes lanes
